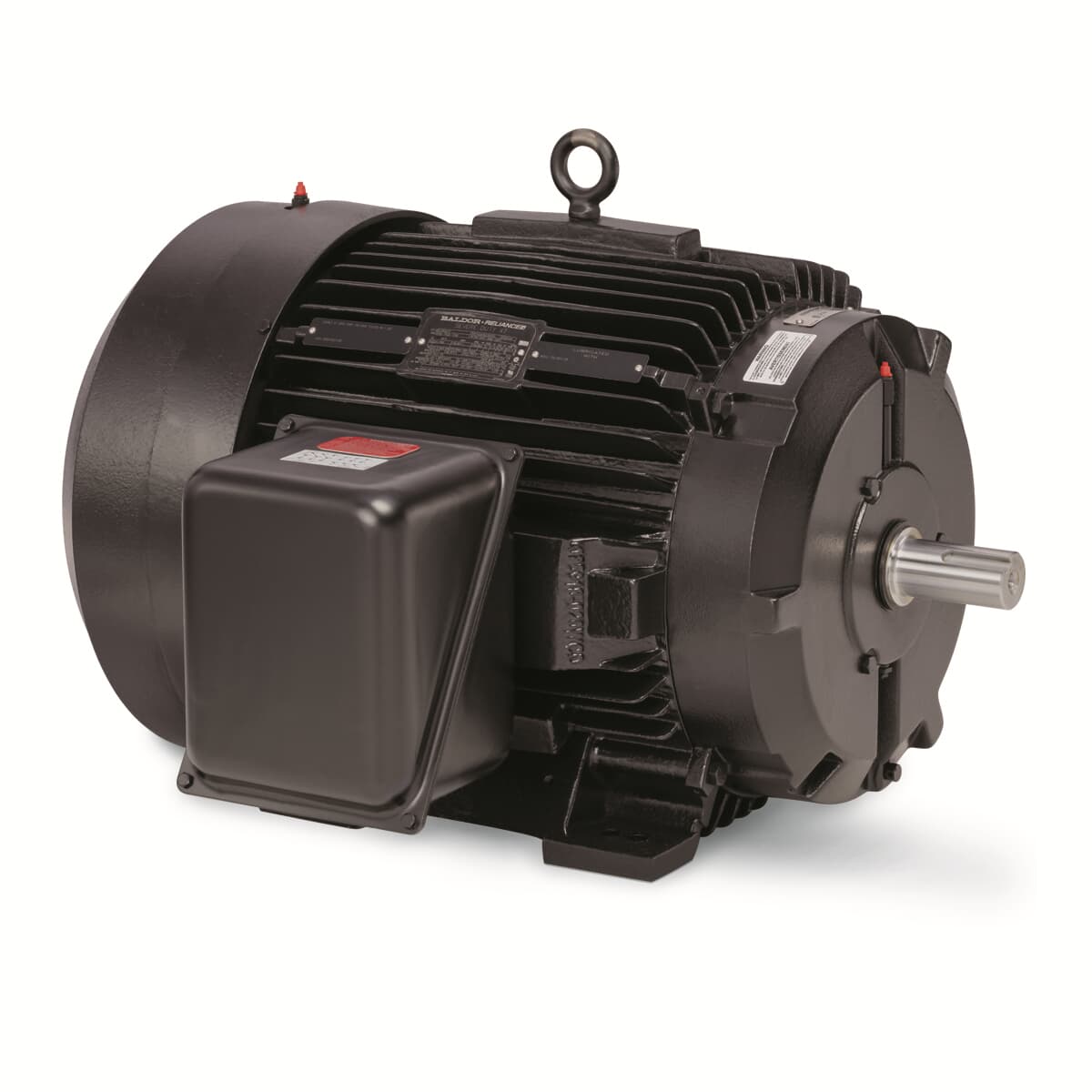

XT3602TS-5

60HP, 3560RPM, 3PH, 60HZ, 364TS, A36056M, TEFC

Product Information Packet PDF

Ship Weight 999.000 LB
UPC 781568983911

Specs

Catalog Number XT3602TS-5
Enclosure TEFC
Frame 364TS
Frame Material Cast Iron
Frequency 60.00 Hz
Motor Letter Type Three Phase
Output @ Frequency 60.000 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Voltage @ Frequency 575.0 V @ 60 HZ
Haz Area Class and Group None
Haz Area Division Division II
Agency Approvals NEMA_PREMIUM
CURUSEEV
CCSAUSEEV
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Current @ Voltage 52.900 A @ 575.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.6 %
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 52.9 a
Heater Indicator No Heater
Insulation Class F
Inverter Code Inverter Ready
IP Rating NONE
KVA Code G
Lifting Lugs Standard Lifting Lugs
Max Speed 4500 rpm
Motor Lead Quantity/Wire Size 3 @ 4 AWG
Motor Type A36056M
Mounting Arrangement F1
Number of Poles 2
Overall Length 31.35 IN
Power Factor 91
Product Family General Industrial
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1.15
Shaft Diameter 1.875 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3560 rpm
Speed Code Single Speed
Motor Standards NEMA
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
