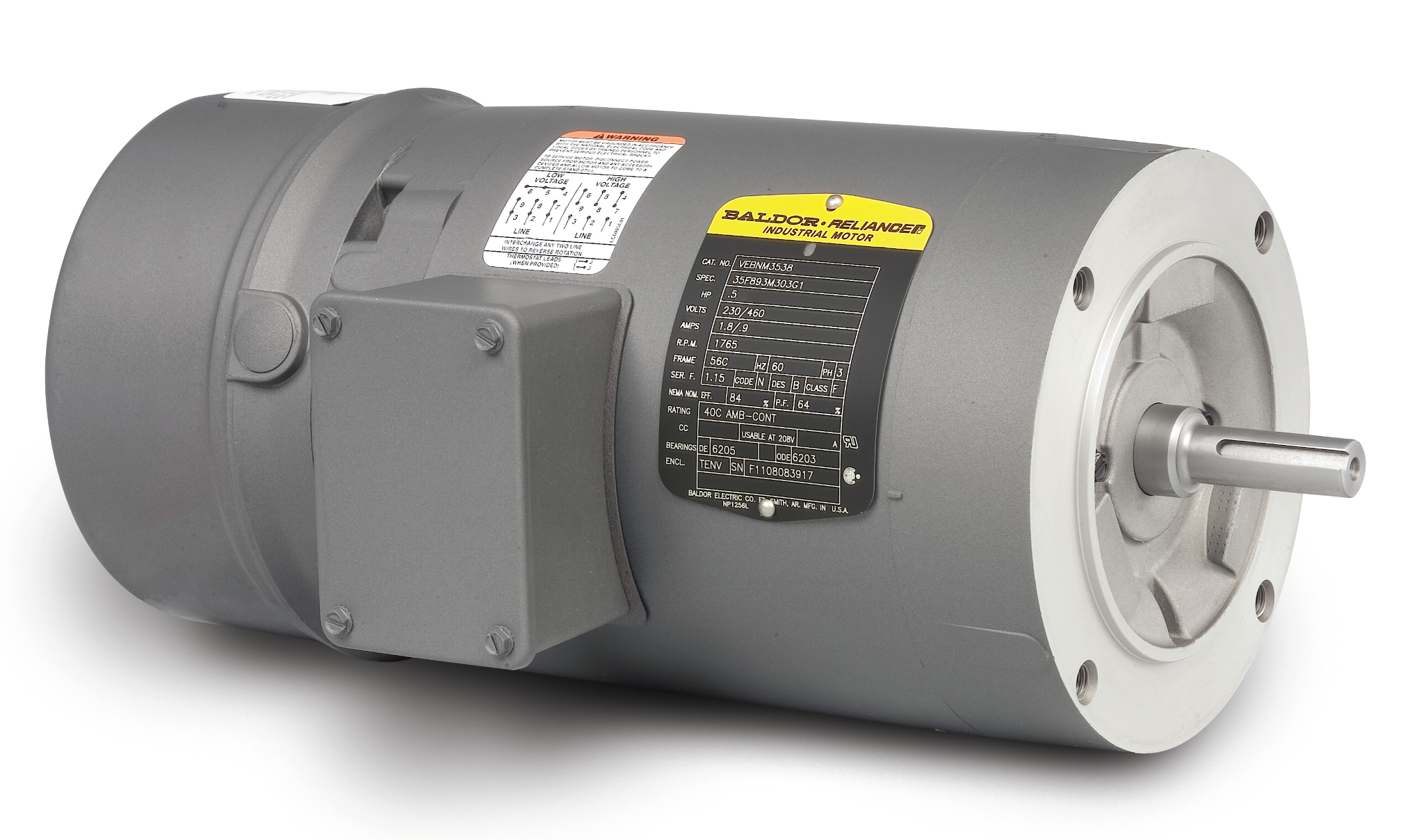

VEBNM3538

Ship Weight	37.000 LB
UPC	781568502624

Specs

Catalog Number VEBNM3538

Enclosure TENV

Frame 56C

Frame Material Steel

Frequency 60.00 Hz

Motor Letter Type Three Phase

Output @ Frequency .500 HP @ 60 HZ

Phase 3

Synchronous Speed @ Frequency 1800 RPM @ 60 HZ

Voltage @ Frequency 230.0 V @ 60 HZ
460.0 V @ 60 HZ

Haz Area Class and Group None

Haz Area Division Not Applicable

Agency Approvals UR
CSA

Ambient Temperature 40 °C

Auxillary Box No Auxillary Box

Auxillary Box Lead Termination None

Base Indicator No Mounting

Bearing Grease Type Polyrex EM (-20F +300F)

Blower None

Brake Torque 3.0 lb-ft

Current @ Voltage .900 A @ 460.0 V
1.800 A @ 230.0 V
1.900 A @ 208.0 V

Design Code B

Drip Cover No Drip Cover

Duty Rating CONT

Efficiency @ 100% Load 78.2 %

Electrically Isolated Bearing Not Electrically Isolated

Feedback Device NO FEEDBACK

High Voltage Full Load Amps 0.9 a

Front Face Code Brake Mounting

Front Shaft Indicator None

Heater Indicator No Heater

Insulation Class F

Inverter Code Not Inverter

IP Rating NONE

KVA Code M

Lifting Lugs No Lifting Lugs

Locked Bearing Indicator Locked Bearing

Motor Lead Exit Ko Box

Motor Lead Termination Flying Leads

Motor Lead Quantity/Wire Size 9 @ 18 AWG

Motor Type 3512M

Mounting Arrangement F1

Number of Poles 4

Overall Length 15.31 IN

Power Factor 62

Product Family General Purpose

Product Type BRAKE MOTOR

Pulley End Bearing Type Ball

Pulley Face Code C-Face

Pulley Shaft Indicator Standard

Rodent Screen None

Service Factor 1.15

Shaft Diameter 0.625 IN

Shaft Extension Location Pulley End

Shaft Ground Indicator No Shaft Grounding

Shaft Rotation Reversible

Shaft Slinger Indicator No Slinger

Speed 1770 rpm

Speed Code Single Speed

Motor Standards NEMA

Starting Method Direct on line

Thermal Device - Bearing None

Thermal Device - Winding None

Vibration Sensor Indicator No Vibration Sensor

Winding Thermal 1 None

Winding Thermal 2 None

Drawings

CAD File

2D CAD

3D CAD

Remove

Add

Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.

The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.

CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.

CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.

CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.

Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.

Building download package.

Nameplate

CAT.NO.	VEBNM3538
SPEC.	35F893G069G2
HP	.5
VOLTS	230/460
AMP	2.02/1.01
RPM	1775
FRAME	56C						HZ	60				PH	3
SER.F.	1.15	CODE				P	DES		B	CL	F
NEMA-NOM-EFF	81.5		PF		58
RATING	40C AMB-CONT
CC
DE	6205			ODE			6203
ENCL	TENV	SN
	SFA 2.2/1.1
	NP2116L

Performance

Performance at 460 V, 60 Hz, 0.5 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT

No-Load Current 0 A

Line-Line Res. @ 25° C 30.3 Ohms A Ph / 0 Ohms B Ph

Temp. Rise @ Rated Load 19° C

Temp. Rise @ S.F. Load 21° C

Start Configuration DOL

Break-Down Torque 8 LB-FT

Pull-Up Torque 4.4 LB-FT

Locked-Rotor Torque 5.1 LB-FT

Starting Current 8.4 A

Load Characteristics

Rated Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power Factor	9.0	24.0	37.0	48.0	58.0	65.0	71.0	62.0
Efficiency	0.0	58.9	72.5	78.4	80.5	81.6	81.5	81.2
Speed (RPM)	1,799	1,793	1,788	1,782	1,776	1,771	1,763	1,773
Line Amps	0.85	0.85	0.89	0.94	1.01	1.11	1.21	1.07

Performance Curves

Parts

Part Number	Description	Quantity
35CB3000SP	CONDUIT BOX, CAST, W/.88 DIA. LEAD HOLE	1.000 EA
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1.000 EA
MN416A01	TAG-INSTAL-MAINT no wire (2500bx)4/22	1.000 EA
