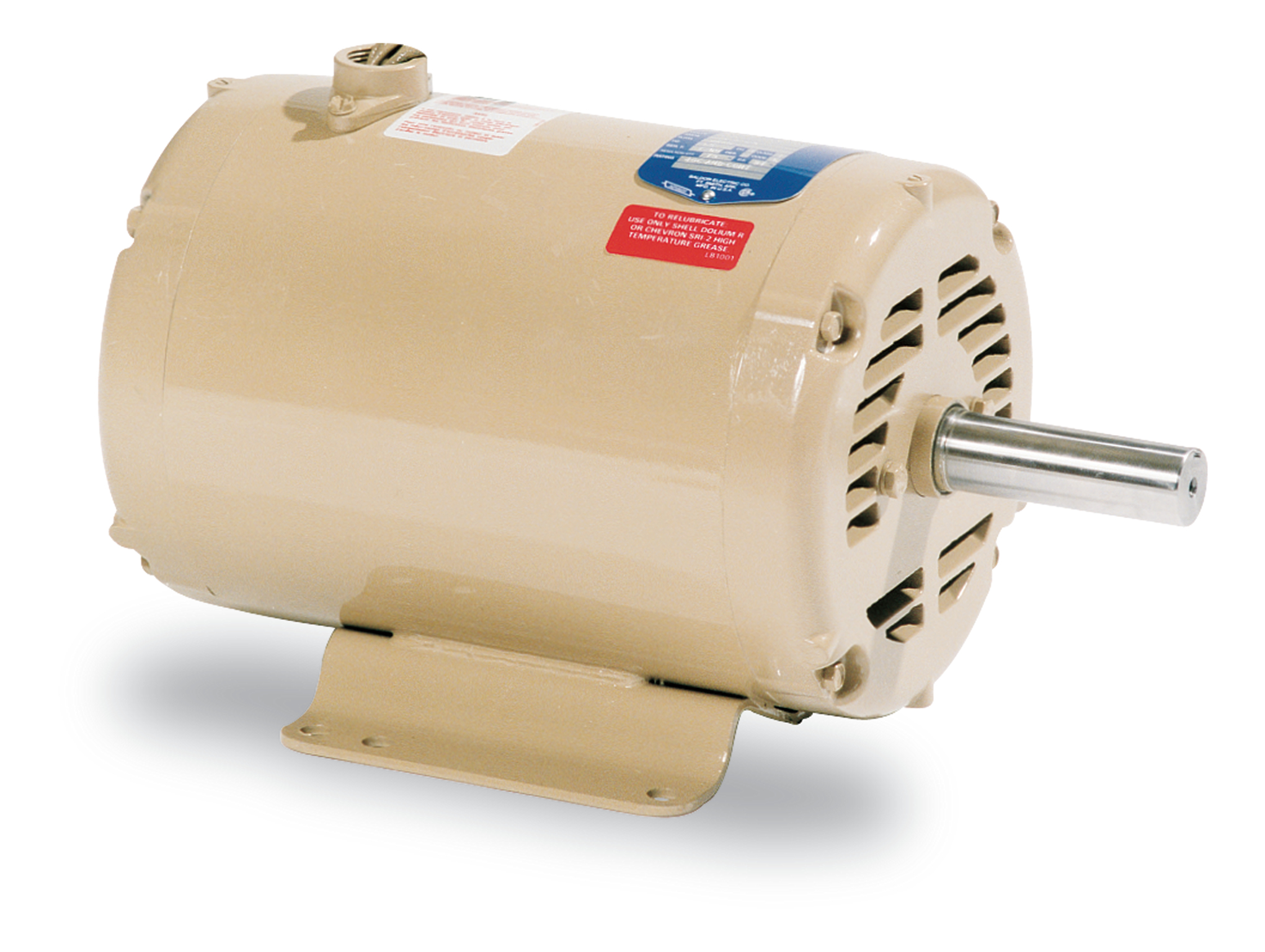

UCM575

5-7 1/2HP, 3450RPM, 3PH, 60HZ, 184TZ, 3628M, O

Product Information Packet PDF

Ship Weight 66.000 LB
UPC 781568205419

Specs

Catalog Number UCM575
Enclosure OPAO
Frame 184TZ
Frame Material Steel
Frequency 60.00 Hz
Motor Letter Type Three Phase
Output @ Frequency 7.500 HP @ 60 HZ
5.000 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Voltage @ Frequency 230.0 V @ 60 HZ
460.0 V @ 60 HZ
XP Class and Group None
XP Division Not Applicable
Agency Approvals UR
CSA
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Current @ Voltage 19.000 A @ 230.0 V
20.400 A @ 208.0 V
9.500 A @ 460.0 V
Design Code -
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 84.0 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 9.5 a
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No Heater
Insulation Class F
Inverter Code Not Inverter
KVA Code F
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Pipe Or Pipe Adaptor
Motor Lead Termination Flying Leads
Motor Lead Quantity/Wire Size 9 @ 16 AWG
Motor Type 3628M
Mounting Arrangement F1
Number of Poles 2
Overall Length 15.38 IN
Power Factor 87
Product Family General Purpose
Product Type FARM DUTY
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Tapped & Key
Rodent Screen None
Service Factor 1.00
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Motor Standards NEMA
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None

Drawings

{{ getDrwKindName(drawing.kind) }}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT.NO. UCM575
SPEC. 36F551-2512G1
HP 5-7.5 AIR OVER
VOLTS 230/460
AMP 19/9.5
RPM 3450
FRAME 184TZ HZ 60 PH 3
SER.F. 1.00 CODE F DES - CL F
NEMA-NOM-EFF 84 PF 87
RATING 40C AMB-CONT
CC USABLE AT 208V 20.4
DE 6206 ODE 6205
ENCL OPAO SN
NP1279L
CAT.NO. UCM575
SPEC. 36F551-2512G1
HP 5-7.5 AIR OVER
VOLTS 230/460
AMP 19/9.5
RPM 3450
FRAME 184TZ HZ 60 PH 3
SER.F. 1.00 CODE F DES - CL F
NEMA-NOM-EFF 84 PF 87
RATING 40C AMB-CONT
CC USABLE AT 208V 20.4
DE 6206 ODE 6205
ENCL OPAO SN
NP1263L

Performance

Performance at 460 V, 60 Hz, 7.5 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 2.17 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load
Temp. Rise @ S.F. Load
