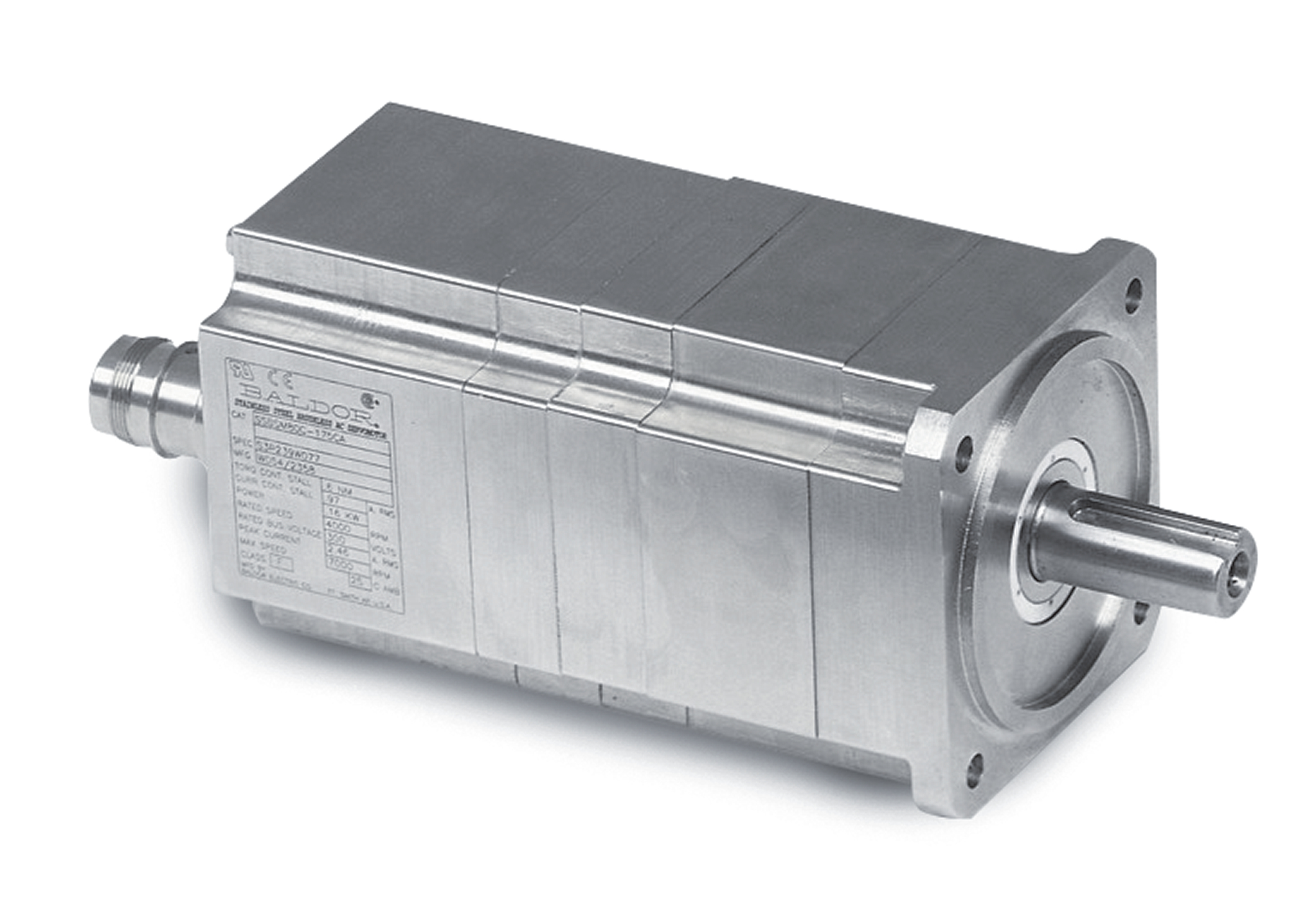

SSBSM80C-175CA

8 lb. In. , SS BSM servo motor

Product Information Packet PDF

Ship Weight 15.000 LB
UPC 781568398814

Specs

Enclosure TENV
Motor Type S208B
Nameplate Speed 4000
Agency Approvals C UR US
CE
CURUS
WEEE
Base Indicator Bracket Mounted
Dimensional Drawing Numbers S2LYP263
Frame D100D
Frame Material Exposed Laminations
Motor Lead Quantity/Wire Size 3 @ 18 AWG
Mounting Arrangement F1
Nameplate Output 0.26KW
Shaft Rotation Reversible
Motor Standards IEC

Drawings

{{getDrwKindName(drawing.kind)}}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT.NO. SSBSM80C-175CA
BLANK IP67 IC410 7KG
SPEC. S2P263W050
MFG.NO.
TORQ CONT STALL 0.96 NM
CUR CONT STALL/A RMS 1.54
POWER 0.26KW
RATED SPEED/RPM 4000
RATED BUS VOLTS 300
PEAK CUR/A RMS 3.93
MAX SPEED/RPM 7000
CLASS F AMB. 25
APRV-CE
NP4320
