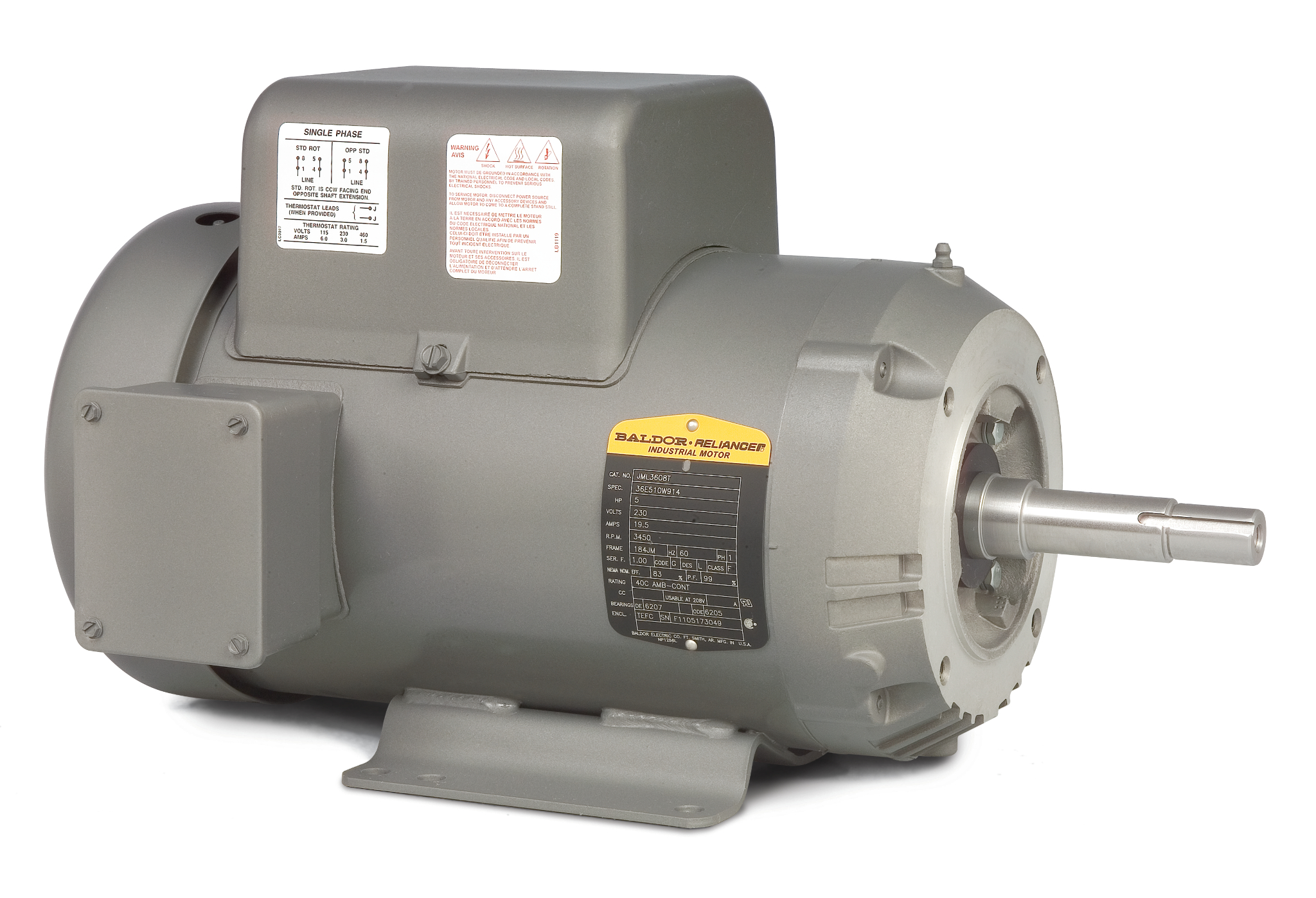

JML3608T

5HP, 3450RPM, 1PH, 60HZ, 184JM, 3640LC, TEFC

Product Information Packet PDF

Ship Weight 93.000 LB
UPC 781568145517

Specs

Catalog Number JML3608T
Enclosure TEFC
Frame 184JM
Frame Material Steel
Frequency 60.00 Hz
Motor Letter Type Cap Start, Cap Run
Output @ Frequency 5.000 HP @ 60 HZ
Phase 1
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Voltage @ Frequency 230.0 V @ 60 HZ
XP Class and Group None
XP Division Not Applicable
Agency Approvals CSA
UR
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Current @ Voltage 19.500 A @ 230.0 V
22.000 A @ 208.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 83.0 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 19.5 a
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No Heater
Insulation Class F
Inverter Code Not Inverter
KVA Code G
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Termination Flying Leads
Motor Lead Quantity/Wire Size 2 @ 14 AWG, A PH
Motor Type 3640LC
Mounting Arrangement F1
Number of Poles 2
Overall Length 19.55 IN
Power Factor 99
Product Family General Purpose
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen None
Service Factor 1.00
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3450 rpm
Speed Code Single Speed
Motor Standards NEMA
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None

Drawings

{{ getDrwKindName(drawing.kind) }}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT.NO. JML3608T
SPEC. 36E510W914
HP 5
VOLTS 230
AMP 19.5
RPM 3450
FRAME 184JM HZ 60 PH 1
SER.F. 1.00 CODE G DES L CLASS F
NEMA-NOM-EFF 83 PF 99
RATING 40C AMB-CONT
CC USABLE AT 208V 22
DE 6207 ODE 6205
ENCL TEFC SN
NP1256L

Performance

Performance at 230 V, 60 Hz, 5 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 0.38 Ohms A Ph / 1.02 Ohms B Ph
Temp. Rise @ Rated Load 93° C
Temp. Rise @ S.F. Load
Start Configuration DOL
Break-Down Torque 26 LB-FT
Pull-Up Torque 12.5 LB-FT
Locked-Rotor Torque 15 LB-FT
Starting Current 128 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 71.0 98.0 98.0 98.0 98.0 97.0 97.0 0.0
Efficiency 0.0 66.4 81.5 83.9 83.9 82.1 79.2 0.0
Speed (RPM) 3,595 3,565 3,539 3,507 3,472 3,430 3,389 0
Line Amps 2.30 6.50 10.40 14.90 19.60 24.70 29.90 0.00

Performance Curves

Parts

Part Number Description Quantity
36GS1000SP GASKET-CONDUIT BOX, .06 THICK #SV-330 LE 1.000 EA
35FN3002A04SP EXFN, PLASTIC, 6.376 OD, .906 ID W/KEY 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (2100/bx) 4/22 1.000 EA
