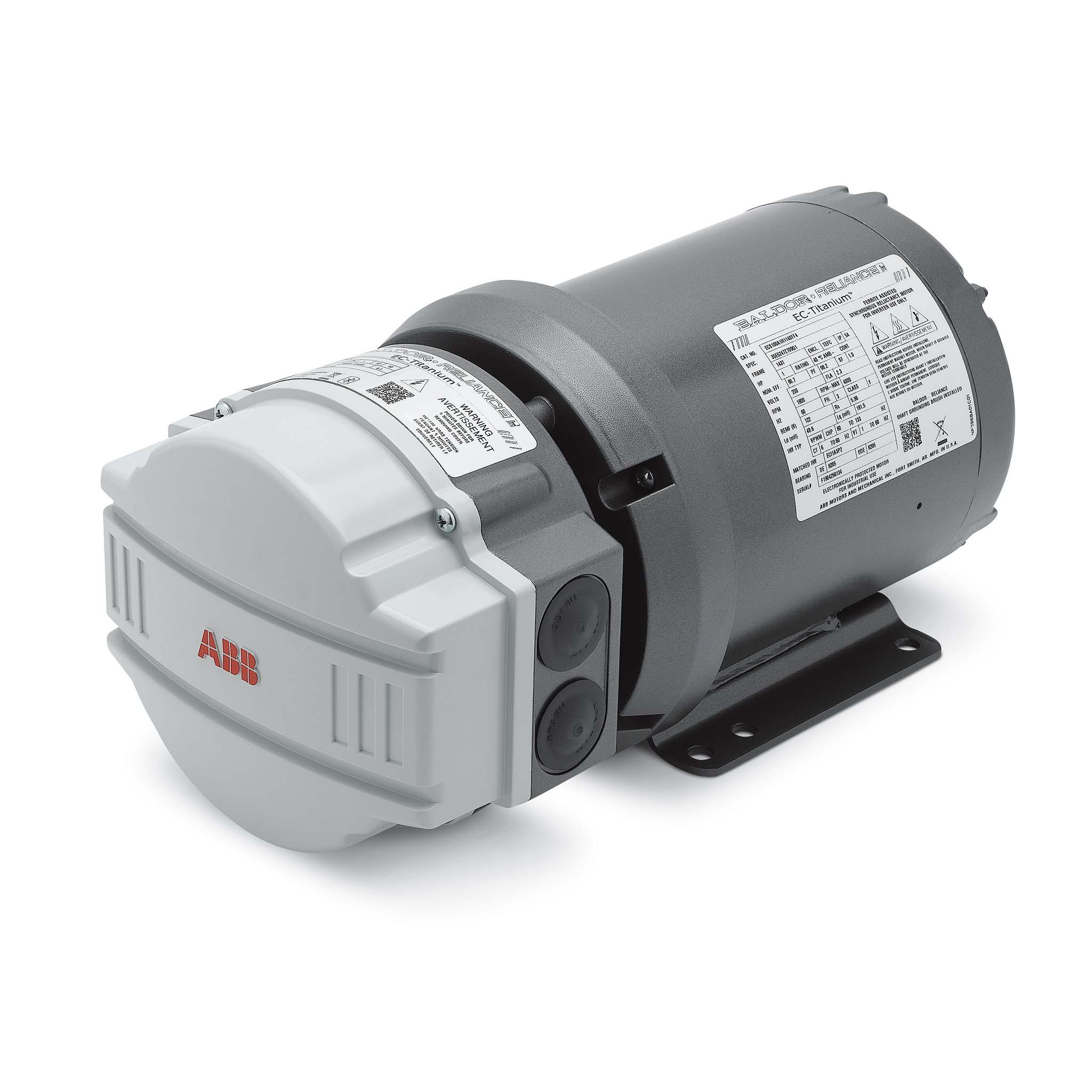

ECS100A4H2DF4

2HP, 1800RPM, 3PH, 60HZ, 145T, TEFC, AXIAL

Product Information Packet PDF

Ship Weight 38.000 LB
UPC 781568950883

Specs

Catalog Number ECS100A4H2DF4
Enclosure TEFC
Frame 145T
Frame Material Steel
Motor Letter Type Brushless Wound Field PM Rotor
Phase 3
XP Class and Group None
XP Division Not Applicable
Agency Approvals UL
WEEE
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Constant Torque Speed Range 6
Design Code B
Drip Cover No Drip Cover
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
Heater Indicator No Heater
Inverter Code Inverter Duty
IP Rating NONE
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Termination Flying Leads
Motor Lead Quantity/Wire Size 3 @ 18 AWG
Motor Type 3520B
Mounting Arrangement F1
Number of Poles 4
Overall Length 16.71 IN
Product Family General Purpose
Pulley Face Code Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Shaft Diameter 0.875 IN
Shaft Ground Indicator Shaft Grounding
Shaft Rotation Reversible
Speed Code Single Speed
Motor Standards NEMA
Starting Method INVERTER SPECIAL
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None

Drawings

{{ getDrwKindName(drawing.kind) }}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT.NO. ECS100A4H2DF4
SPEC. 35E5247Z715G1
FRAME 145T ENCL. TEFC IP 54
HP 2 40 C AMB CONT
NOM. EFF. 90.7% PF 96.0% SF 1.0
VOLTS 460 FLA 2.2
RPM 1800 RPM-MAX 4000
HZ 60 PH. 3 CLASS F
BEMF (V) 246 RS (OHMS) 12.95
LD (MH) 131 LQ (MH) 424
VPWM CHP 60 TO 133
CT 6 TO 60 VT 1 TO 60
MATCHED INV ECI4A2P2
DE 6205 ODE 6205
SERIAL #
NP3968A01A01
PART NO. ECI4A2P2
U1 480 PH 3 HZ 60
I1 3.2 W/EXT. CHOKE 2.7
SERIAL #
NP3978A01

Parts

Part Number Description Quantity
34FN3002A01SP EXTERNAL FAN, PLASTIC, .637/.639 HUB W/ 1.000 EA
HW4600B32SP V-RING SLINGER 1.000 X 1.540 X .24 VITON 1.000 EA
MN451 EC Titanium Quick Start 04/20 1.000 EA
