ECP83769T-4

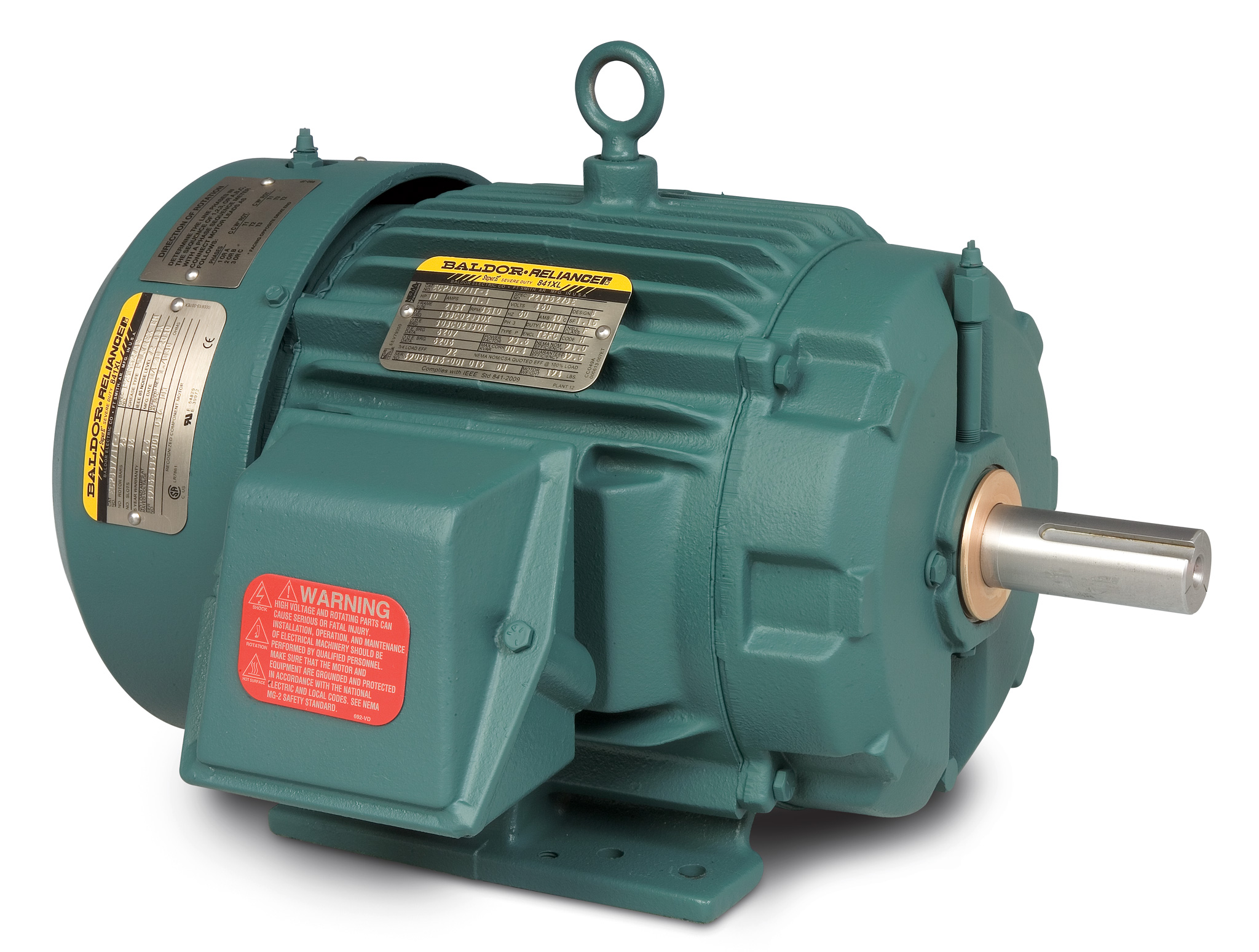

7.5HP, 3510RPM, 3PH, 60HZ, 213T, 0730M, TEFC, F

Product Information Packet PDF

Ship Weight 179.000 LB
UPC 781568210765

Specs

Catalog Number ECP83769T-4
Enclosure TEFC
Frame 213T
Frame Material Iron
Frequency 60.00 Hz
Output @ Frequency 7.500 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Voltage @ Frequency 460.0 V @ 60 HZ
XP Class and Group CLI GP A,B,C,D
XP Division Division II
Agency Approvals CSA
CSA EEV
UR
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Constant Torque Speed Range 6
Current @ Voltage 8.900 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 89.5 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 8.9 a
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No Heater
Insulation Class F
Inverter Code Inverter Duty
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 5400 rpm
Motor Lead Exit Ko Box
Motor Lead Termination Flying Leads
Motor Lead Quantity/Wire Size 3 @ 14 AWG
Motor Type 0730M
Mounting Arrangement F1
Number of Poles 2
Overall Length 19.50 IN
Power Factor 88
Product Family Super-E Chemical Processing
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3510 rpm
Speed Code Single Speed
Motor Standards NEMA
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None
XP Temp Code T3C

Drawings

{{ getDrwKindName(drawing.kind) }}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT.NO. ECP83769T-4
SPEC. 07K629Z107G1
HP 7.5 TE IP 56
VOLTS 460
AMPS 8.9
R.P.M. 3510
FRAME 213T HZ 60 PH 3
SER.F. 1.15 CODE H DES. B CLASS F
RATING 40C AMB-CONT
SN
DE 6307 ODE 6307
NEMA NOM. EFF. 89.5 P.F. 88
GUAR. MIN. EFF. 87.5 CC 010A
T. CODE T3C TEMP= 160
NP3235E
SPEC. 07K629Z107G1
ABMA DE BRG 35BC03X30X
ABMA ODE BRG 35BC03X30X
GREASE POLYREX EM
MOTOR WEIGHT 179 ROTOR BARS 28 STATOR BARS 36
MAX. R.P.M. 5400 MAX. KVAR .34
INV.TYPE PWM
T= 160
CHP 60 TO 90
CT 6 TO 60
VT 3 TO 60
HTR-VOLTS N/A HTR-AMPS N/A
HTR-WATTS MAX. SPACE HEATER TEMP. N/A
NP3186E

Performance

Performance at 460 V, 60 Hz, 7.5 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 1.7845 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load 54° C
Temp. Rise @ S.F. Load 68° C
Start Configuration DOL
Break-Down Torque 36.2 LB-FT
Pull-Up Torque 15.95 LB-FT
Locked-Rotor Torque 18.3 LB-FT
Starting Current 61.2 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 8.0 55.0 76.0 84.0 88.0 89.0 90.0 89.0
Efficiency 0.0 86.3 90.3 90.6 89.7 88.4 86.6 88.9
Speed (RPM) 3,597 3,578 3,558 3,536 3,512 3,485 3,456 3,496
Line Amps 3.08 3.76 5.17 6.94 8.95 11.20 13.60 10.30

Performance Curves

Parts

Part Number Description Quantity
36FN3000C02SP EXFN, PLASTIC, 5.25 OD, 1.175 ID 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (2100/bx) 4/22 1.000 EA
