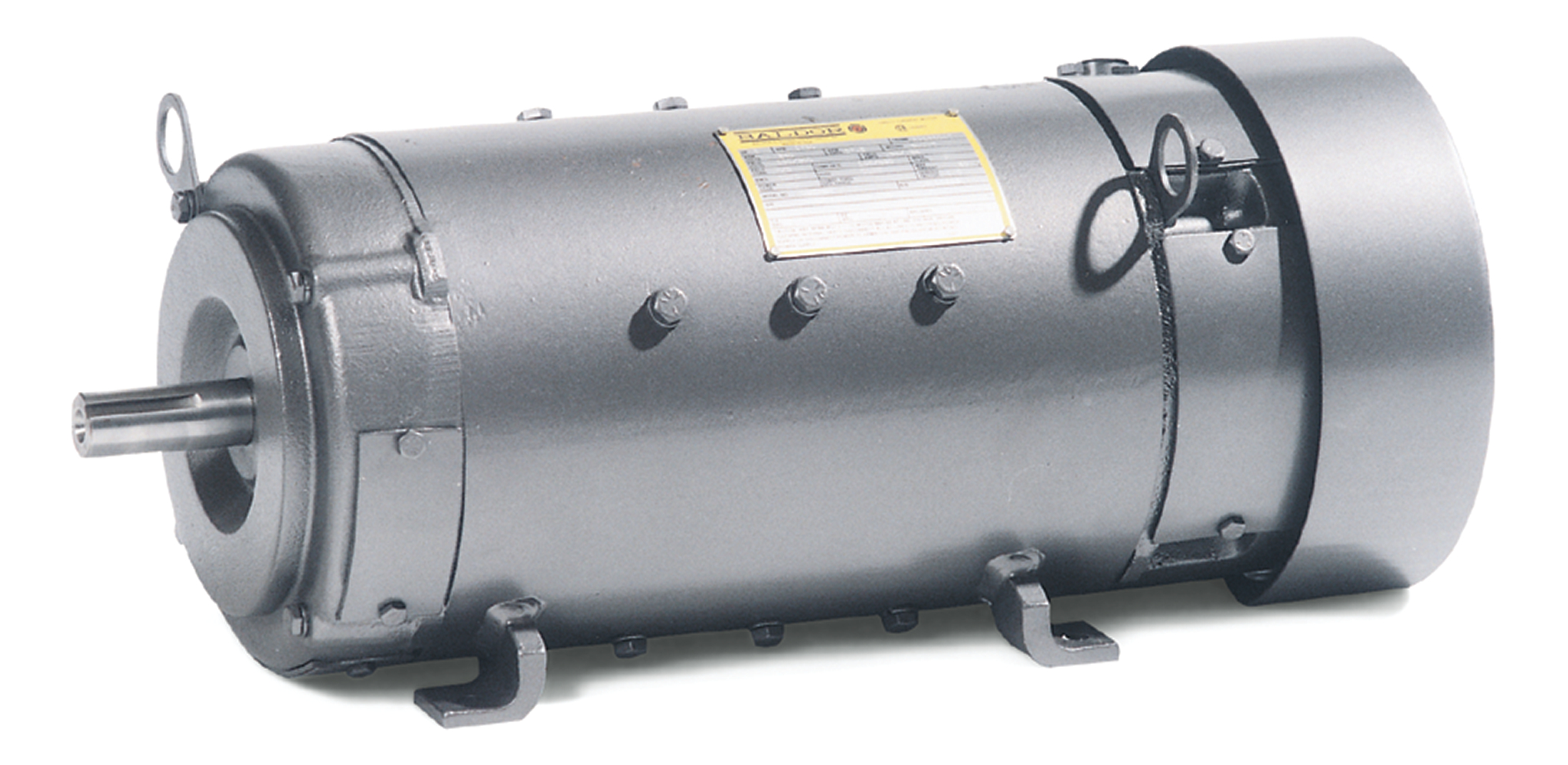

D5510P

10HP, 1750/2300RPM, DC, 259AT, TEFC, F1

Product Information Packet PDF

Ship Weight 460.000 LB
UPC 781568125106

Specs

Armature Voltage 500 V
Base Speed 1750 rpm
Enclosure TEFC
Field Voltage 300 V
Frame 259AT
Frame Material Steel
Output Power 10.000 HP
Agency Approvals CSA
Ambient Temperature 40 °C
Armature Current 16.3 a
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Feedback Device NO FEEDBACK
Field Winding Type STR. SHUNT
Heater Indicator No Heater
Insulation Class F
Lifting Lugs Standard Lifting Lugs
Mounting Arrangement F1
Overall Length 36.53 IN
Service Factor 1.00
Shaft Diameter 1.624 IN
Shaft Extension Location Double Shaft
Shaft Ground Indicator No Shaft Grounding
Shaft Slinger Indicator No Slinger
Motor Standards NEMA
Thermal Device - Bearing None

Drawings

{{getDrwKindName(drawing.kind)}}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT.NO. D5510P MODEL T25S8008
HP 10 RPM 1750/2300 FRAME 0259AT
ARM V 500 ARM A 16.30 WOUND STR. SHUNT
FLD V 300/150 FLD A .89-.49/1.78-.98
CONN OHMS 247.9 CL F
ENCL TEFC DUTY CONT MX AMB 40
P CODE D CTSR SER.F. 1.0
S/N E/S K0040A A
-
O.D.E. BRG. 6207 D.E. BRG. 6209 BRUSH 150986-25-1 QTY 2
NP1734

Performance

Parts

Part Number Description Quantity
032018006CK HHCS 3/8-16X3/4L PLATED 411409 4.000 EA

Accessories

Part Number Description List Price
92EP5000A01 C-FACE CONVERSION KIT FOR STOCK MTR,FR 2
