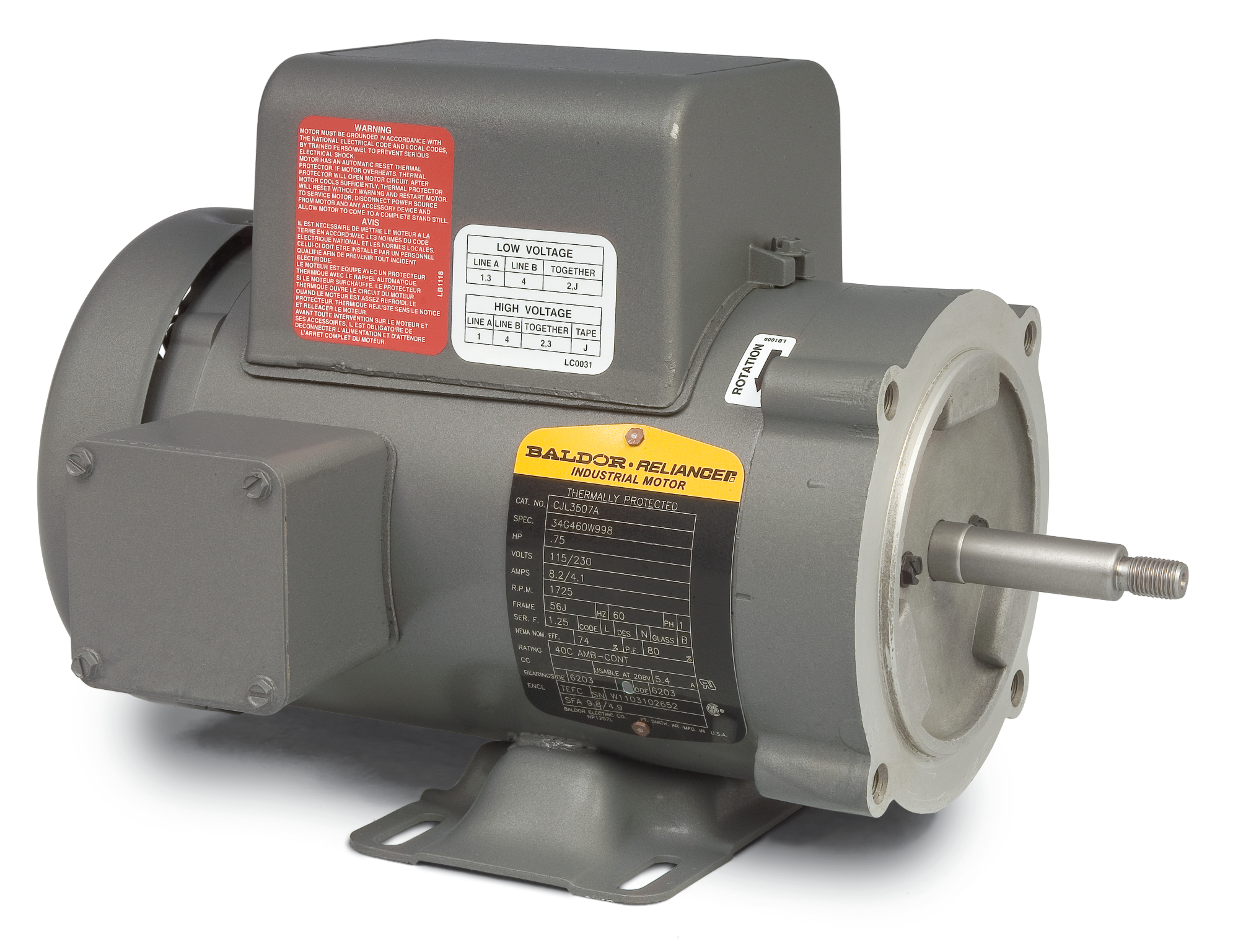

CJL3507A

.75HP, 1725RPM, 1PH, 60HZ, 56J, 3428LC, TEFC, F

Product Information Packet PDF

Ship Weight 35.000 LB
UPC 781568112762

Specs

Catalog Number CJL3507A
Enclosure TEFC
Frame 56J
Frame Material Steel
Frequency 60.00 Hz
Motor Letter Type Cap Start, Cap Run
Output @ Frequency .750 HP @ 60 HZ
Phase 1
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 115.0 V @ 60 HZ
230.0 V @ 60 HZ
Haz Area Class and Group None
Haz Area Division Not Applicable
Agency Approvals CURUS
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Current @ Voltage 4.100 A @ 230.0 V
5.400 A @ 208.0 V
8.200 A @ 115.0 V
Design Code N
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 74.0 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 4.1 a
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No Heater
Insulation Class B
Inverter Code Not Inverter
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Termination Flying Leads
Motor Lead Quantity/Wire Size 4 @ 18 AWG
Motor Type 3428LC
Mounting Arrangement F1
Number of Poles 4
Overall Length 12.97 IN
Power Factor 80
Product Family General Purpose
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Ext Thread
Rodent Screen None
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Fixed Opposite Standard
Shaft Slinger Indicator No Slinger
Speed 1725 rpm
Speed Code Single Speed
Motor Standards NEMA
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location SB
Winding Thermal 2 None

Drawings

{{getDrwKindName(drawing.kind)}}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT.NO. CJL3507A
SPEC. 34M631W998
HP .75
VOLTS 115/230
AMP 8.2/4.1
RPM 1725
FRAME 56J HZ 60 PH 1
SER.F. 1.25 CODE L DES N CL B
NEMA-NOM-EFF 74 PF 80
RATING 40C AMB-CONT
CC
DE 6203 ODE 6203
ENCL TEFC SN
SFA 9.8/4.9
NP1257L

Performance

Performance at 230 V, 60 Hz, 0.75 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 3.11 Ohms A Ph / 1.73 Ohms B Ph
Temp. Rise @ Rated Load 62° C
Temp. Rise @ S.F. Load 81° C
Start Configuration DOL
Break-Down Torque 5.7 LB-FT
Pull-Up Torque 4.7 LB-FT
Locked-Rotor Torque 7.5 LB-FT
Starting Current 31 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 23.0 43.0 61.0 72.0 80.0 85.0 87.0 0.0
Efficiency 0.0 53.6 67.7 73.0 73.9 93.2 71.4 0.0
Speed (RPM) 1,798 1,784 1,770 1,755 1,739 1,717 1,694 0
Line Amps 2.70 2.70 3.00 3.50 4.10 4.90 5.80 4.90

Performance Curves

Parts

Part Number Description Quantity
OC3020F12SP CAPACITORS 20 MFD 370 VAC 1.000 EA
EC1460A05SP ELEC CAP, 460-552 MFD, 125V, 2.06D X 3. 1.000 EA
34EP3102A01SP FR ENDPLATE, MACH 1.000 EA
34EP3300A24SP PU ENDPLATE, MACH 1.000 EA
34FN3002A01SP EXTERNAL FAN, PLASTIC, .637/.639 HUB W/ 1.000 EA
34FH4002A03SP IEC FH NO GREASER W/.88 DIA SHAFT HOLE, 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (2500bx)4/22 1.000 EA

Accessories

Part Number Description List Price
34-171 C FACE KIT 72.00 USD
