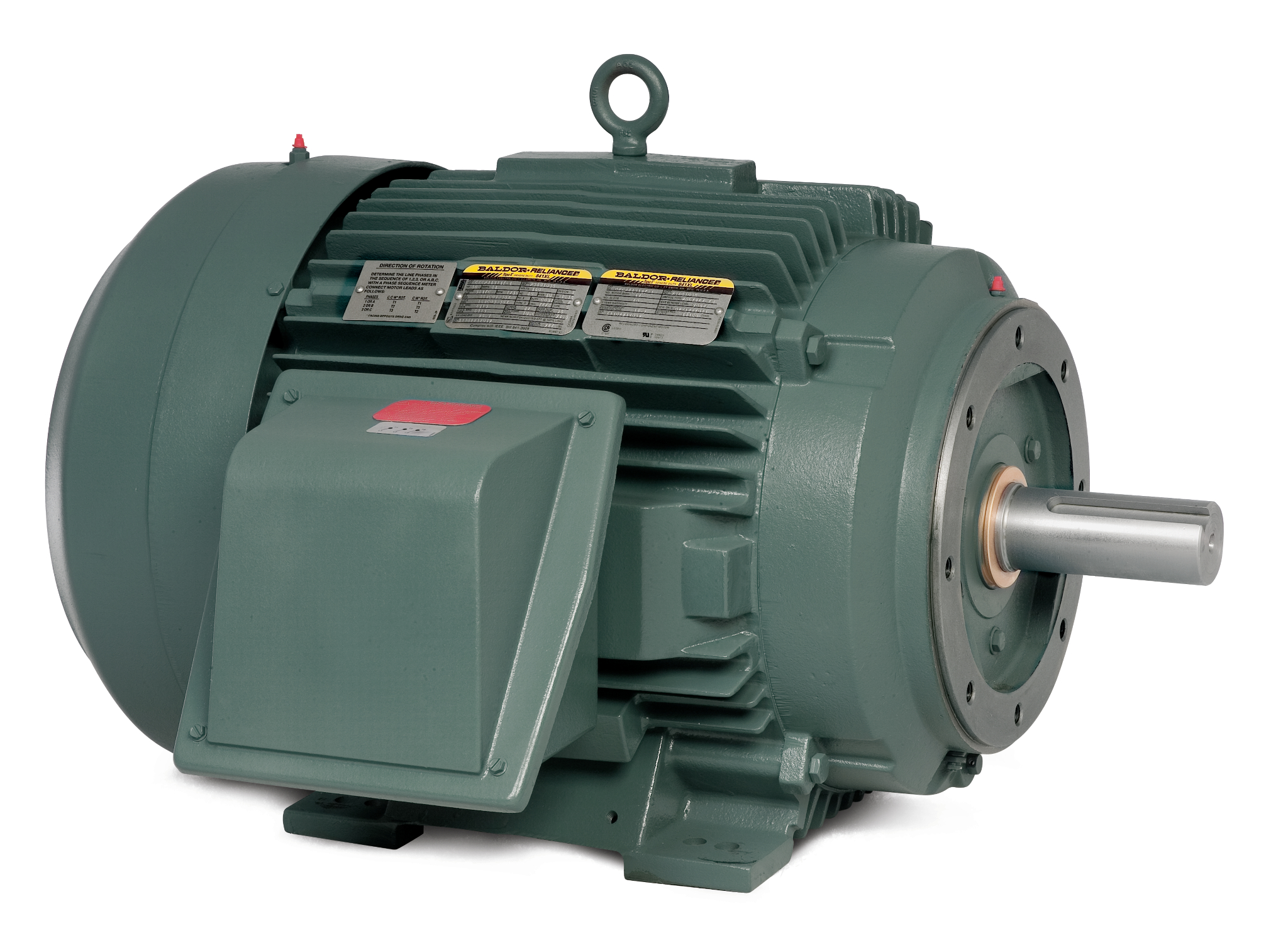

CECP4308T

40HP, 1190RPM, 3PH, 60HZ, 364TC, A36062M, TEFC

Product Information Packet PDF

Ship Weight 908.000 LB
UPC 781568726013

Specs

Catalog Number CECP4308T
Enclosure TEFC
Frame 364TC
Frame Material Cast Iron
Frequency 60.00 Hz
Motor Letter Type Three Phase
Output @ Frequency 40.000 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Voltage @ Frequency 230.0 V @ 60 HZ
460.0 V @ 60 HZ
Haz Area Class and Group CLI GP A,B,C,D
Haz Area Division Division II
Agency Approvals CCSAUSEEV
CURUSEEV
NEMA_PREMIUM
UR
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Constant Torque Speed Range 6-60
Current @ Voltage 98.800 A @ 230.0 V
49.400 A @ 460.0 V
109.000 A @ 208.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 94.1 %
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 49.4 a
Heater Indicator No Heater
Insulation Class F
Inverter Code Inverter Duty
KVA Code G
Lifting Lugs Standard Lifting Lugs
Max Speed 2700 rpm
Motor Lead Quantity/Wire Size 3 @ 4 AWG
Motor Type A36062M
Mounting Arrangement F1
Number of Poles 6
Overall Length 33.44 IN
Power Factor 80
Product Family General Industrial
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Service Factor 1.15
Shaft Diameter 2.375 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1190 rpm
Speed Code Single Speed
Motor Standards NEMA
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
Haz Area Temp Code T3A

Drawings

{{getDrwKindName(drawing.kind)}}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT # CECP4308T SER CC 010A
SPEC A36-4050-0747 RATING 40C AMB-CONT
HZ VOLTS AMPS RPM HP CODE SF DES PF NEMA NOM. EFF
60 230/460 98.8/49.4 1190 40 G 1.15 B 80 % 94.1 %
% %
PH 3 CL F MAX RPM 2700 MAX CORR KVAR 12
BRG DE 6313 ODE 6313 ENCL TEFC FR 364TC IP 55
GREASE POLYREX EM MTR WT 889 LBS
CL I DIV 2 GRPS A,B,C,D CL I ZONE 2 GRPS IIA,IIB,IIC TEMP T 200 C
INV READY CT 15-60 HZ 4:1 VT 3-60 HZ 20:1 CHP 60-90 HZ 1.5:1
INV TEMP CL 200 C USABLE AT 50HZ 30HP 190/380V 98/49A SF1.0
NP4033LUA

Performance

Parts

Part Number Description Quantity
412118006A DRAIN 1.000 EA
078550001M FAN KB 60/30 (30) 360 1.000 EA
412118006A DRAIN 1.000 EA
