7306

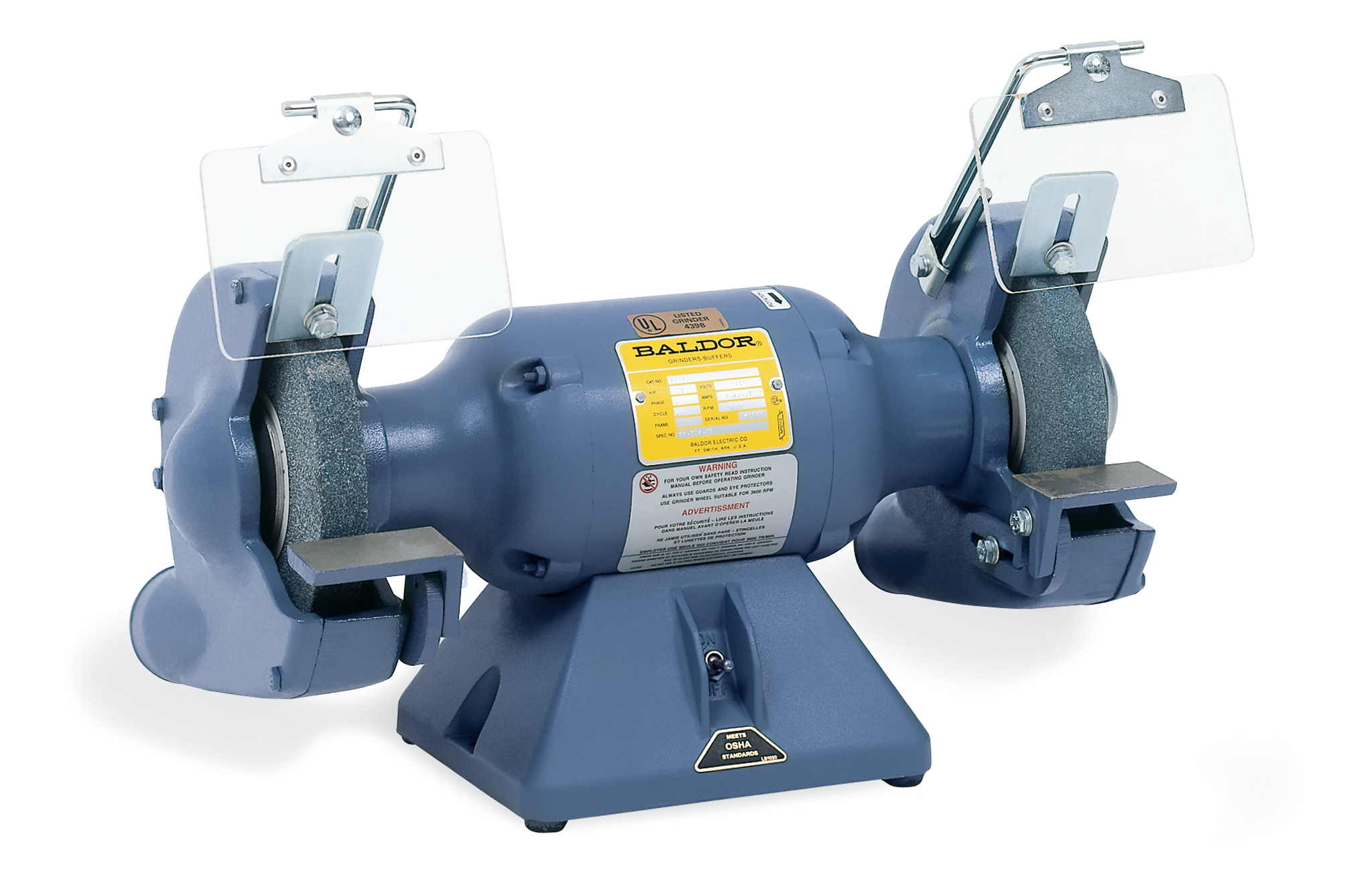

.5HP, 1800RPM, 1PH, 60HZ, 3420C, GRND

Product Information Packet PDF

Ship Weight 70.000 LB
UPC 781568126974

Specs

Frequency 60.00 Hz
Nameplate Output .5
Number of Poles 4
Phase 1
Product Style GRINDER
Shaft Diameter 0.625 IN
Speed 1800 rpm
Voltage 115 V
230 V
Wheel Bore Size 0.6250 IN
Wheel Diameter 7.0000 IN
Wheel Face 1.0000 IN

Drawings

{{ getDrwKindName(drawing.kind) }}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.
Baldor is a Member of the Part Community by CADENAS

Nameplate

CAT.NO. 7306
HP .5 VOLTS 115/230
PHASE 1 AMPS 3.8/1.9
HZ 60 RPM 1800
SER.NO
SPEC. G7-306-385
NP3118

Parts

Part Number Description Quantity
OC3008F12SP CYL OIL CAP 8MFD/370V 1.000 EA
SP9000SP 80600BJ A-H OR 1520237-2 TYCO;2PST,125/2 1.000 EA
G7FH1800A01GSP GRINDER GUARD, MACH 1.000 EA
HA2040A01SP SPACER,CRST(WELKER#824500 2.000 EA
XY6311A12SP HEX NUT 5/8-11 1.000 EA
G6AP1008A01SP TOOLREST, MACH/PRIMED 1.000 EA
HA6064A01SP PAINT/PRIME HA6064A01 1.000 EA
G6AP1008A01SP TOOLREST, MACH/PRIMED 1.000 EA
HA6064A01SP PAINT/PRIME HA6064A01 1.000 EA
MN903 INSTR MANUAL FOR GRINDERS 9/03 1.000 EA

Accessories

Part Number Description List Price
GA16E PEDESTAL LIGHT INDUSTRIAL,STEEL 319.00 USD
GA16 PEDESTAL INDUSTRIAL, CAST IRON 6" - 10" 489.00 USD
GA14 PEDESTAL FABRICATED STEEL W/SHELVES 369.00 USD
GA9 PAIR LIGHTED EYESHIELDS 206.00 USD
GA9-1 SINGLE LIGHTED EYESHIELD 114.00 USD
GA9S PAIR EYESHIELDS W/ ON-OFF SWITCH 229.00 USD
GA11 PAIR EYESHIELDS 99.00 USD
GA24 WATER POT 60.00 USD
B73 7" 36 GRIT GRINDING WHEEL 60.00 USD
B74 7" 60 GRIT GRINDING WHEEL 60.00 USD
BQ1-015-CC 1PH Brake, NEMA 1,110-125 VAC, 50/60Hz 1,934.00 USD
BQ1-015-CP 1PH Brake, Panel 110-125 VAC, 50/60 Hz 1,921.00 USD
DC7 DUST CONTROL UNIT 1,464.00 USD
