342

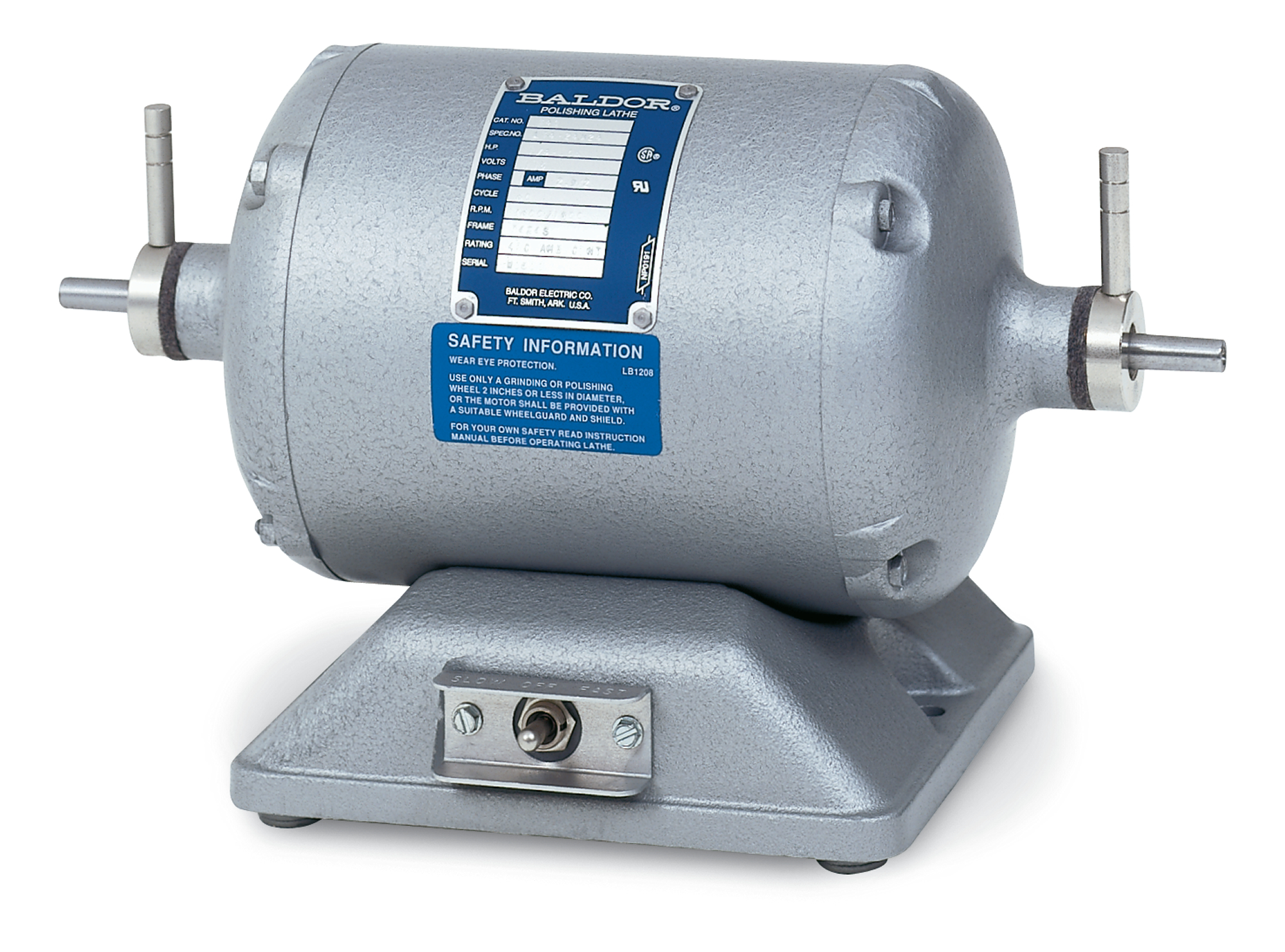

.25/.06HP, 3000/1500RPM, 1PH, 50HZ, 3424S

Product Information Packet PDF

Ship Weight 31.000 LB
UPC 781568162309

Specs

Frequency 50.00 Hz
Nameplate Output .25/.06
Number of Poles 2
4
Phase 1
Product Style DENTAL LATHE
Shaft Diameter 0.376 IN
Speed 1500 rpm
3000 rpm
Voltage 220 V
240 V

Drawings

{{ getDrwKindName(drawing.kind) }}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT.NO. 342
SPEC. L34-25W25
HP .25/.06
VOLTS 220-240
PHASE 1 AMPS 1.5/1.2
CYCLE 50
RPM 3000/1500
CL B
RATING 40C AMB-CONT
SERIAL
NP3351L

Parts

Part Number Description Quantity
SP9019SP SWITCH 7563K6 (EATON) 1.000 EA
RM1005A01SP BUMPER- #2089 (R-R CO) 4.000 EA
MN904 Baldor Polishing Lathes 6/05 1.000 EA

Accessories

Part Number Description List Price
R1 DR-3544 R1 RH CHUCK 116.00 USD
R2 DR-3546B R2 RH WHEEL CHUCK 85.00 USD
R5A BURR CHUCK-RH 191.00 USD
R6 ARBOR BAND CHUCK 64.00 USD
L3 DR-3545 LH HD WHEEL CHUCK 111.00 USD
L4 DR-3547B L4 LH SF WHEEL CHUCK 129.00 USD
