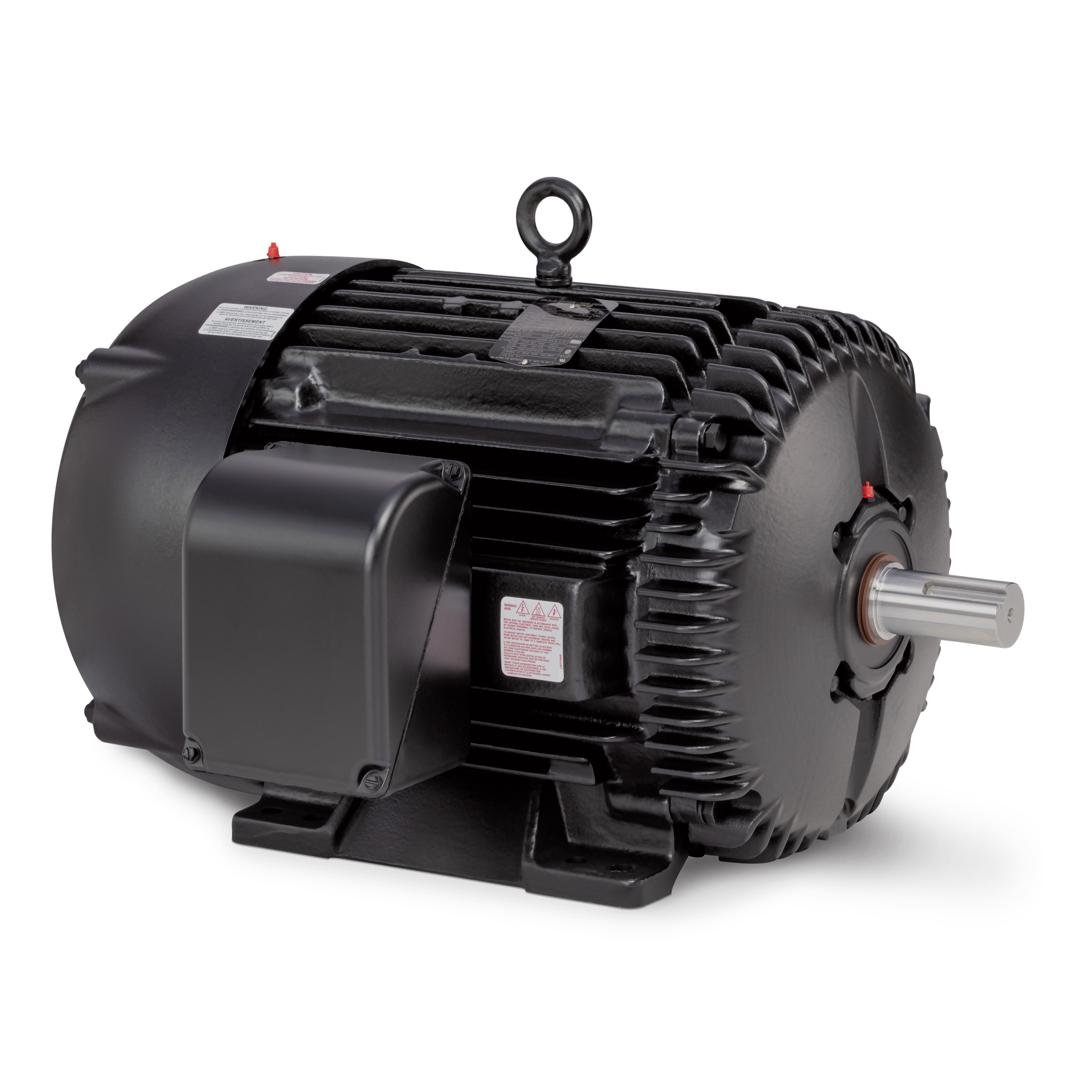

XT3404T

40HP, 1775RPM, 3PH, 60HZ, 324T, 1254M, TEFC, F1

Product Information Packet PDF

Ship Weight 600.000 LB
UPC 781568967379

Specs

Catalog Number XT3404T
Enclosure TEFC
Frame 324T
Frame Material Iron
Frequency 60.00 Hz
Motor Letter Type Three Phase
Output @ Frequency 40.000 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 460.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and Group CLI GP A,B,C,D
XP Division Division II
Agency Approvals CCSA US
CSA EEV
NEMA PREMIUM
UR
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Constant Torque Speed Range 3
Current @ Voltage 96.000 A @ 230.0 V
48.000 A @ 460.0 V
102.000 A @ 208.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 94.1 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 48.0 a
Heater Indicator No Heater
Insulation Class F
Inverter Code Inverter Duty
IP Rating NONE
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Termination Flying Leads
Motor Type 1254M
Mounting Arrangement F1
Number of Poles 4
Overall Length 30.28 IN
Power Factor 82
Product Family General Purpose
Pulley Face Code Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 2.125 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Speed 1775 rpm
Speed Code Single Speed
Motor Standards NEMA
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None
XP Temp Code T3

Drawings

{{ getDrwKindName(drawing.kind) }}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT.NO. XT3404T I.P. 54
SPEC. 12-0000-1920 ENCL TEFC
FRAME 324T H.P. 40
VOLTS 230/460 P.F. 82
F.L. AMPS 96/48 RATING 40C AMB-CONT
R.P.M. 1775 USABLE AT 208V 102
HZ. 60 PH. 3 CLASS F
SER.F. 1.15 DES. A SL HZ 0.9
NEMA NOM. EFF. 94.1 WK2 7.19
DE 6312 ODE 6311
MAG. CUR. 39/19.5
INV TYPE PWM CHP 60 TO 90 T. CODE T3
CT 3 TO 60 VT 3 TO 60
CC 010A SN
USABLE AT 50 HZ 30HP 190/380V
90/45A
NP4163L

Performance

Performance at 460 V, 60 Hz, 40 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 0.139 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load 54° C
Temp. Rise @ S.F. Load 66° C
Start Configuration DOL
Break-Down Torque 396 LB-FT
Pull-Up Torque 198 LB-FT
Locked-Rotor Torque 222 LB-FT
Starting Current 347 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 5.0 45.0 67.0 77.0 82.0 84.0 85.0 83.0
Efficiency 0.0 89.8 93.4 94.1 94.4 93.9 93.1 94.1
Speed (RPM) 1,799 1,794 1,788 1,783 1,777 1,771 1,765 1,773
Line Amps 21.03 23.93 30.40 39.12 48.68 59.71 71.22 55.30

Performance Curves

Parts

Part Number Description Quantity
MN416A01 TAG-INSTAL-MAINT no wire (2200bx) 4/22 1.000 EA
12FH1002SP FAN COVER, CAST 1.000 EA
09FN3001B03SP EXTERNAL FAN, PLASTIC (COMES W/SCREW FRO 1.000 EA
09GS1000SP GASKET-CONDUIT BOX, 1/16 THICK LEXIDE 1.000 EA
10CB3500SP CONDUIT BOX LID, CAST 1.000 EA
10GS1000SP GASKET, CONDUIT BOX LID 1.000 EA
51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 4.000 EA
