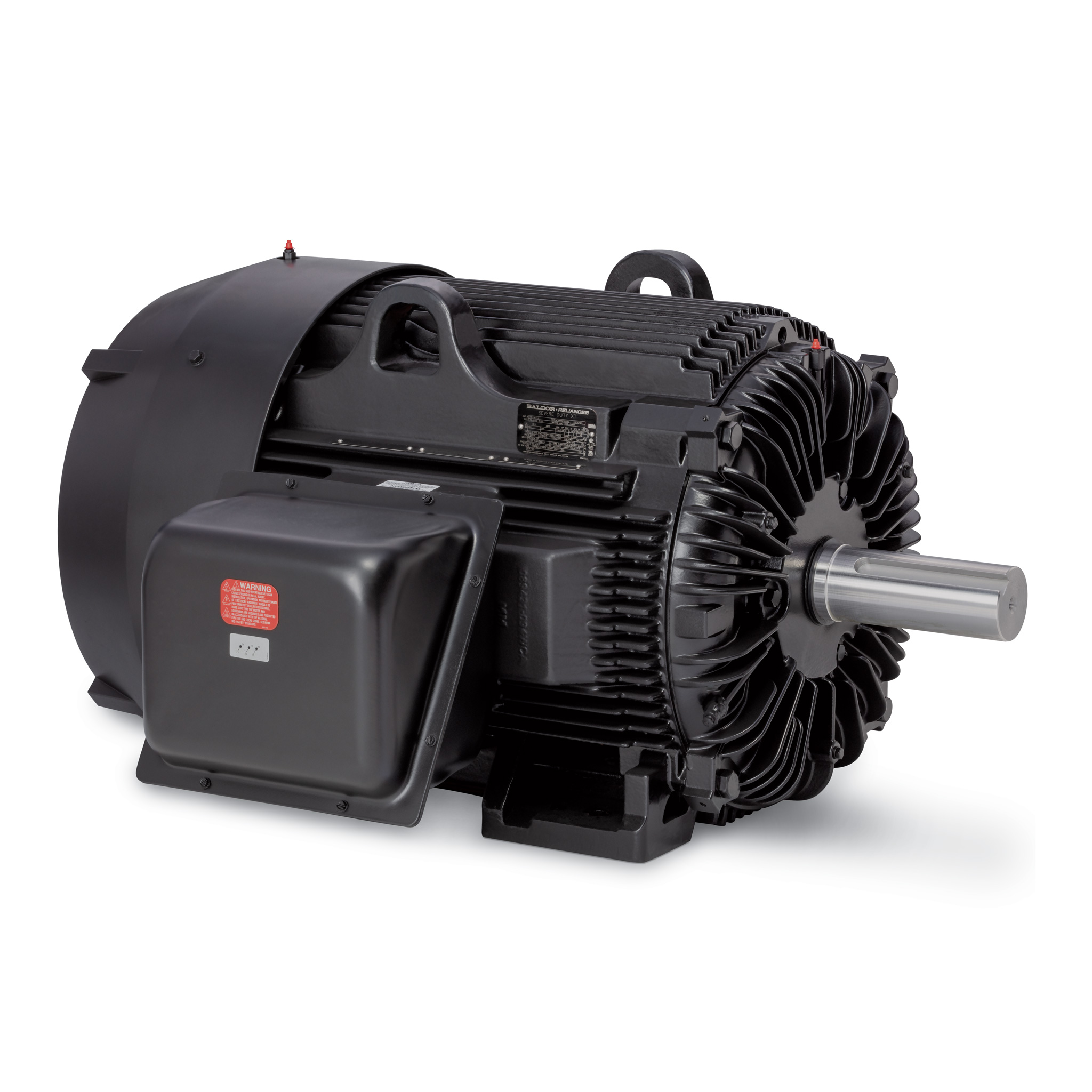

XT31006T-4

100HP, 1188RPM, 3PH, 60HZ, 444T, A44062M, TEFC

Product Information Packet PDF

Ship Weight 1,800.000 LB
UPC 781568967157

Specs

Catalog Number XT31006T-4
Enclosure TEFC
Frame 444T
Frame Material Iron
Frequency 60.00 Hz
Output @ Frequency 100.000 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Voltage @ Frequency 460.0 V @ 60 HZ
XP Class and Group CLI GP A,B,C,D
XP Division Division II
Agency Approvals NEMA PREMIUM
UR
CSA EEV
CCSA US
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Current @ Voltage 115.000 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 95.0 %
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 115.0 a
Heater Indicator No Heater
Insulation Class F
Inverter Code Inverter Ready
IP Rating NONE
KVA Code G
Max Speed 2700 rpm
Motor Lead Quantity/Wire Size 3 @ 2 AWG
Motor Type A44062M
Mounting Arrangement F1
Number of Poles 6
Overall Length 44.97 IN
Power Factor 86
Product Family General Industrial
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1.15
Shaft Diameter 3.375 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1188 rpm
Speed Code Single Speed
Motor Standards NEMA
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None

Drawings

{{ getDrwKindName(drawing.kind) }}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT # XT31006T-4 SER CC 010A
SPEC A44-9163-2112 RATING 40C AMB-CONT
HZ VOLTS AMPS RPM HP CODE SF DES PF NEMA NOM. EFF
60 460 115 1188 100 G 1.15 B 86 % 95 %
% %
PH 3 CL F MAX RPM 2700 MAX CORR KVAR 21 USABLE AT 208V ---- A
BRG DE 6318 ODE 6318 ENCL TEFC FR 444T IP 54
GREASE POLYREX EM MTR WT LBS
CL I DIV 2 GRPS A,B,C,D CL I ZONE 2 GRPS IIA,IIB,IIC TEMP T 200 C
INV READY CT 4:1 HZ 15-60 VT 0-60 HZ 1000:1 CHP 60-90 HZ 1:1.5
INV TEMP CL T3 C USABLE AT 50HZ 75HP 380V 107A 1.0SF
NP4152LUA

Performance

Parts

Part Number Description Quantity
412118006A DRAIN 2.000 EA
078557001E FAN 440 078557001F 1.000 EA
034017014AB LCKW 3/8 STD. PLATED 4.000 EA
