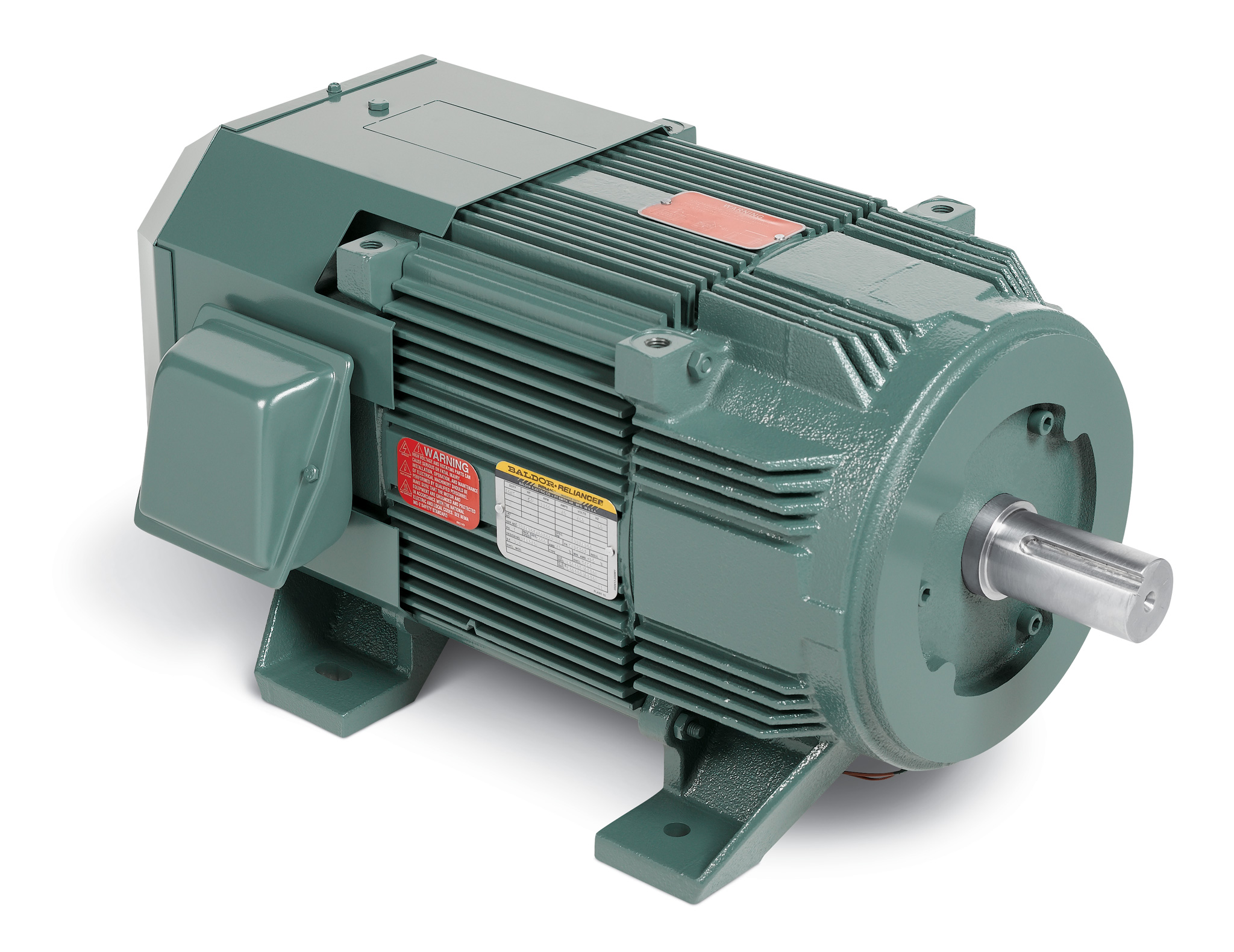

XEFRPM36604

60HP, 1800, 460V, HL364T, TEFC, F1

Product Information Packet PDF

Ship Weight 760.000 LB
UPC 781568837719

Specs

Catalog Number XEFRPM36604
Enclosure TEFC
Frame HL364T
Frame Material Exposed Laminations
Frequency 60.00 Hz
Output @ Frequency 60.000 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 460.0 V @ 60 HZ
Agency Approvals CCSA US
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Constant Torque Speed Range 1-60
Current @ Voltage 60.000 A @ 460.0 V
Duty Rating CONT
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 60.0 a
Frame Prefix HL
Heater Indicator No Heater
Insulation Class H
IP Rating IP54
KVA Code G
Mounting Arrangement F1
Product Family Fan - Centrifugal
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1.15
Shaft Diameter 2.374 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Speed 1800 rpm
Motor Standards NEMA
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat

Drawings

{{ getDrwKindName(drawing.kind) }}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

DUTY HP RPM AMPS VOLTS HZ
CONT 60 1800 60 460 60
CAT.NO. XEFRPM36604 SPEC. NO. H36-A000-0001
SER.NO FRAME SIZE HL364T TYPE PSM
AMB. 40 S.F. 1.15 ENCL. TEFC PH 3 DESIGN B CODE G
NEMA NOM. EFF 97 GUARANTEED EFFICIENCY 96.4 POWER FACTOR 98.6 INSUL. CLASS H
D.E. BRG. 75BC02J30X O.D.E. BRG. 55BC02J30X
VPWM INVERTER DUTY @1.0SF CHP HZ 60-90 CT HZ 1-60 VT HZ 0-60
