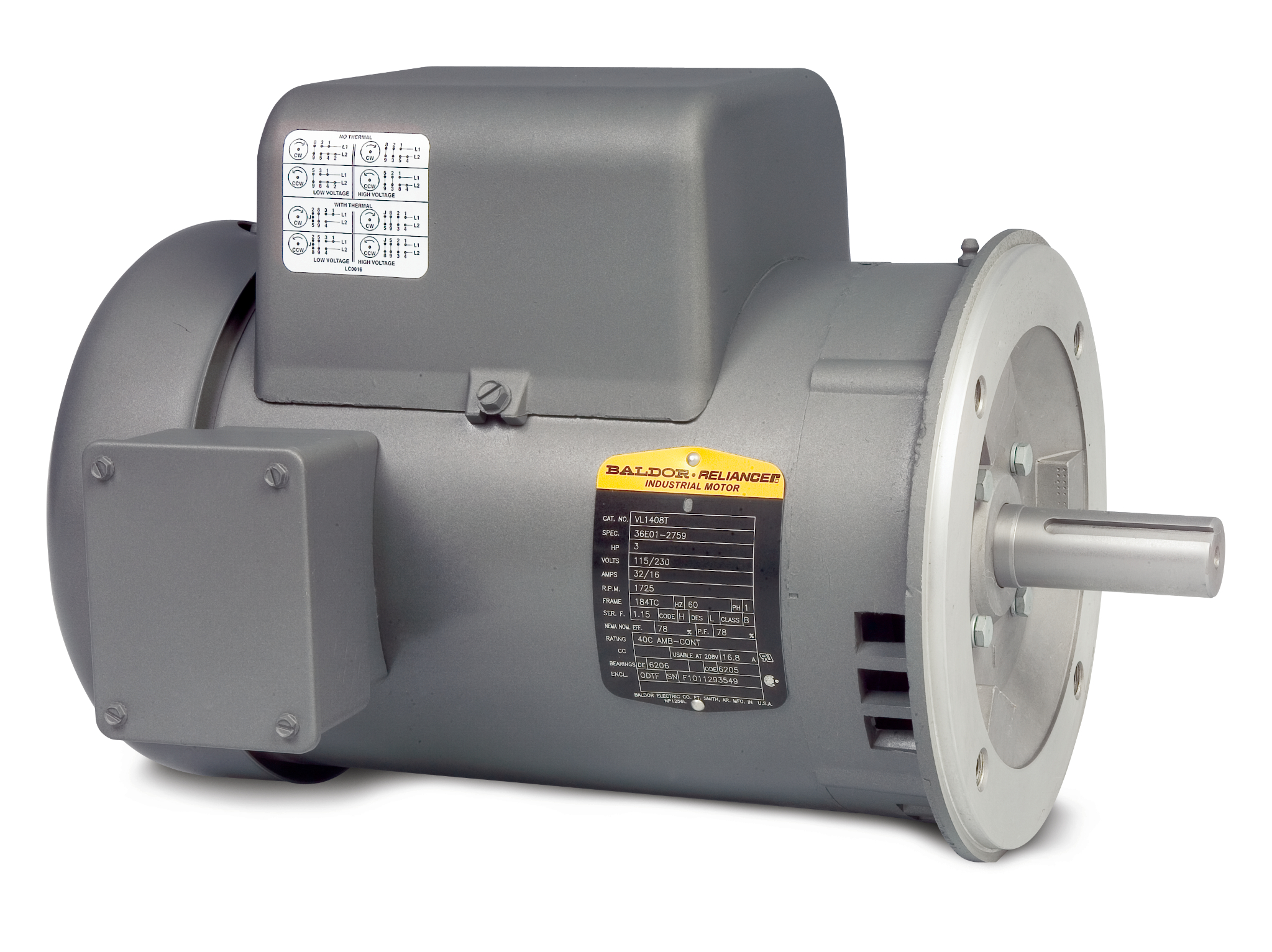

VL1406T

Ship Weight	61.000 LB
UPC	781568110959

Specs

Catalog Number VL1406T

Enclosure ODTF

Frame 182TC

Frame Material Steel

Frequency 60.00 Hz

Motor Letter Type Cap Start, Cap Run

Output @ Frequency 3.000 HP @ 60 HZ

Phase 1

Synchronous Speed @ Frequency 3600 RPM @ 60 HZ

Voltage @ Frequency 230.0 V @ 60 HZ
115.0 V @ 60 HZ

Haz Area Class and Group None

Haz Area Division Not Applicable

Agency Approvals C UR US
CURUS

Ambient Temperature 40 °C

Auxillary Box No Auxillary Box

Auxillary Box Lead Termination None

Base Indicator No Mounting

Bearing Grease Type Polyrex EM (-20F +300F)

Blower None

Current @ Voltage 14.700 A @ 208.0 V
27.200 A @ 115.0 V
13.600 A @ 230.0 V

Design Code L

Drip Cover Drip Cover

Duty Rating CONT

Efficiency @ 100% Load 75.5 %

Electrically Isolated Bearing Not Electrically Isolated

Feedback Device NO FEEDBACK

High Voltage Full Load Amps 13.6 a

Front Face Code Drip Cover Mounting

Front Shaft Indicator None

Heater Indicator No Heater

Insulation Class B

Inverter Code Not Inverter

KVA Code H

Lifting Lugs No Lifting Lugs

Locked Bearing Indicator Locked Bearing

Motor Lead Exit Ko Box

Motor Lead Termination Flying Leads

Motor Lead Quantity/Wire Size 4 @ 14 AWG, A PH

Motor Type 3532LC

Mounting Arrangement F1

Number of Poles 2

Overall Length 15.18 IN

Power Factor 92

Product Family General Purpose

Pulley End Bearing Type Ball

Pulley Face Code C-Face

Pulley Shaft Indicator Standard

Rodent Screen None

RoHS Status ROHS COMPLIANT

Service Factor 1.15

Shaft Diameter 1.125 IN

Shaft Extension Location Pulley End

Shaft Ground Indicator No Shaft Grounding

Shaft Rotation Reversible

Shaft Slinger Indicator No Slinger

Speed 3450 rpm

Speed Code Single Speed

Motor Standards NEMA

Starting Method Direct on line

Thermal Device - Bearing None

Thermal Device - Winding None

Vibration Sensor Indicator No Vibration Sensor

Winding Thermal 1 None

Winding Thermal 2 None

Drawings

CAD File

2D CAD

3D CAD

Remove

Add

Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.

The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.

CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.

CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.

CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.

Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.

Building download package.

Nameplate

CAT.NO.	VL1406T
SPEC.	35U226Z508
HP	3
VOLTS	115/230
AMP	27.2/13.6
RPM	3450
FRAME	182TC			HZ		60				PH		1
SER.F.	1.15	CODE			H	DES		L	CLASS		B
NEMA-NOM-EFF	75.5		PF		92
RATING	40C AMB-CONT
CC
DE	6206			ODE			6203
ENCL	ODTF	SN

	NP1256L

Performance

Performance at 230 V, 60 Hz, 3 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT

No-Load Current 0 A

Line-Line Res. @ 25° C 0.812 Ohms A Ph / 1.04 Ohms B Ph

Temp. Rise @ Rated Load 40° C

Temp. Rise @ S.F. Load 51° C

Start Configuration DOL

Break-Down Torque 11 LB-FT

Pull-Up Torque 7.2 LB-FT

Locked-Rotor Torque 10 LB-FT

Starting Current 85.8 A

Load Characteristics

Rated Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power Factor	30.0	67.0	83.0	89.0	92.0	93.0	93.0	93.0
Efficiency	0.0	62.1	74.3	77.4	76.6	73.4	68.4	74.7
Speed (RPM)	3,599	3,564	3,534	3,500	3,458	3,405	3,324	3,426
Line Amps	4.42	5.47	7.62	10.30	13.60	17.70	23.00	16.10

Performance Curves

Parts

Part Number	Description	Quantity
OC3040F18SP	7YL OIL CAP 40MFD/370V	1.000 EA
EC1815A06SP	ELEC CAP 115V 2.0 X 4.3	1.000 EA
35FN3002A05SP	EXFN, PLASTIC, 6.376 OD, .638 ID	1.000 EA

Accessories

Part Number	Description	List Price
35-1409	C FACE KIT	294.00 USD
