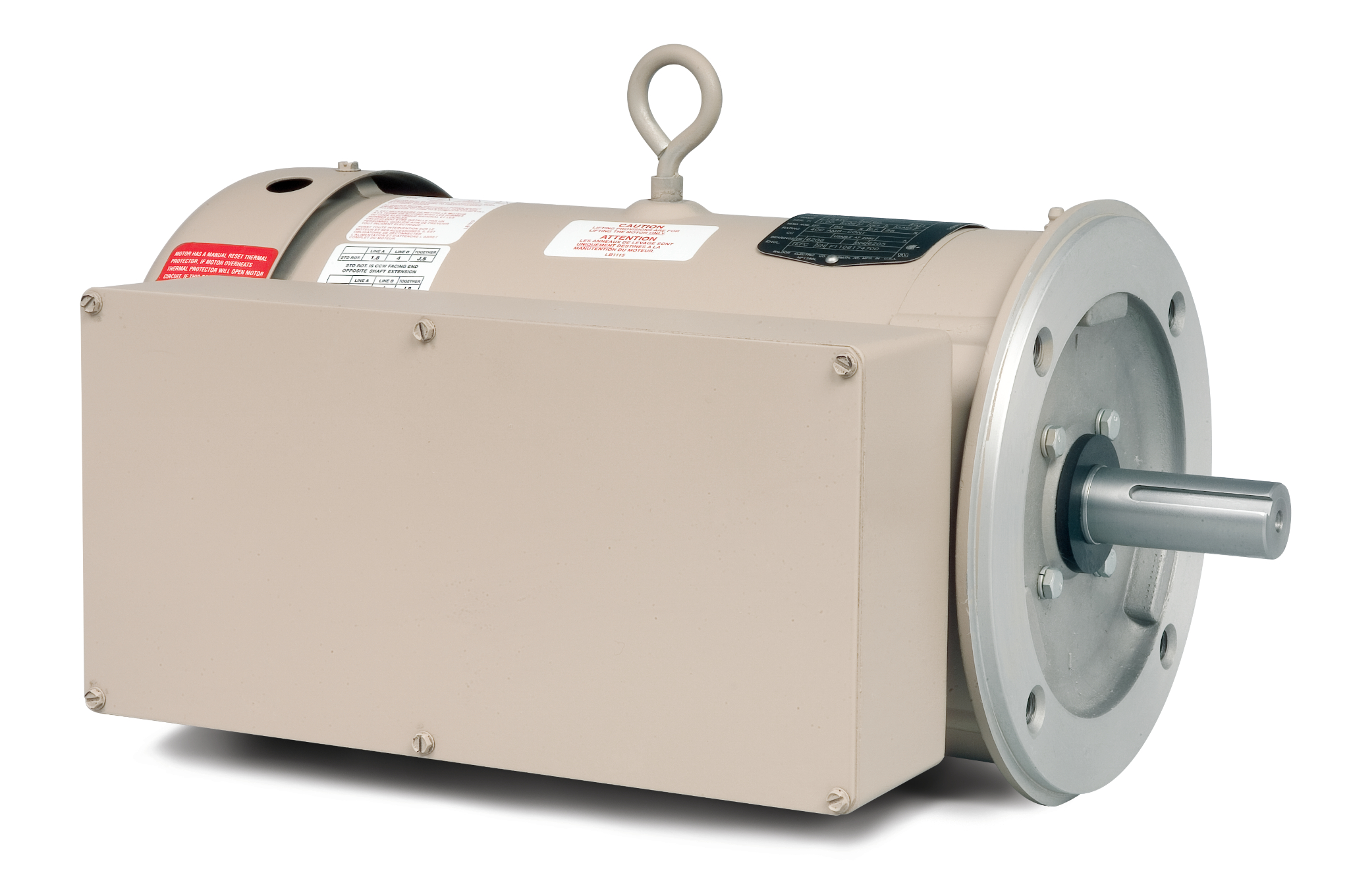

VFDL3612TM

5HP, 1725RPM, 1PH, 60HZ, 184TC, 3646LC, TEFC, F

Product Information Packet PDF

Ship Weight 101.000 LB
UPC 781568154281

Specs

Catalog Number VFDL3612TM
Enclosure TEFC
Frame 184TC
Frame Material Steel
Frequency 60.00 Hz
Motor Letter Type Cap Start, Cap Run
Output @ Frequency 5.000 HP @ 60 HZ
Phase 1
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 230.0 V @ 60 HZ
XP Class and Group None
XP Division Not Applicable
Agency Approvals UR
CSA
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Current @ Voltage 23.000 A @ 230.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 80.0 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 23.0 a
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No Heater
Insulation Class F
Inverter Code Not Inverter
KVA Code J
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Termination Flying Leads
Motor Lead Quantity/Wire Size 2 @ 10 AWG, A PH
Motor Type 3646LC
Mounting Arrangement F1
Number of Poles 4
Overall Length 18.33 IN
Power Factor 88
Product Family General Purpose
Product Type FARM DUTY
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.00
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1725 rpm
Speed Code Single Speed
Motor Standards NEMA
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 Manual Thermal Overload
Winding Thermal 1 Location KO
Winding Thermal 2 None

Drawings

{{ getDrwKindName(drawing.kind) }}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT.NO. VFDL3612TM
SPEC. 36Q158W279G1
HP 5
VOLTS 230
AMP 23
RPM 1725
FRAME 184TC HZ 60 PH 1
SER.F. 1.00 CODE J DES L CL F
NEMA-NOM-EFF 80 PF 88
RATING 40C AMB-CONT
CC USABLE AT 208V
DE 6206 ODE 6205
ENCL TEFC SN
NP1280L

Performance

Performance at 230 V, 60 Hz, 5 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 0.353 Ohms A Ph / 2.23 Ohms B Ph
Temp. Rise @ Rated Load 97° C
Temp. Rise @ S.F. Load
Start Configuration DOL
Break-Down Torque 43 LB-FT
Pull-Up Torque 36 LB-FT
Locked-Rotor Torque 46 LB-FT
Starting Current 163 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 21.0 54.0 71.0 85.0 89.0 89.0 91.0 0.0
Efficiency 0.0 65.0 76.1 81.5 80.8 79.3 75.5 0.0
Speed (RPM) 1,798 1,786 1,769 1,750 1,732 1,713 1,687 0
Line Amps 10.00 12.70 14.00 18.50 22.60 27.30 33.50 0.00

Performance Curves

Parts

Part Number Description Quantity
OC3030F11SP CAPACITOR 30 MFD 370 VAC 1.000 EA
TPLED1027SP THERMAL 1PH 1.5 MAN REF LED989 TDR #5817 1.000 EA
EC1216C06SP ELEC CAP, 216-259 MFD, 250V, 2.06D X 4. 2.000 EA
HA1005A03SP SLINGER, OD 1.750, ID .938, 205 BRG 1.000 EA
HW4600B36SP V-RING SLINGER 1.188 X 1.690 X .24 VITON 1.000 EA
36FN3000A01SP EXFN, PLASTIC, 7.00 OD, .912 ID 1.000 EA
37GS3003SP GASKET, CAPAC BOX LID X 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (2200bx) 4/22 1.000 EA
