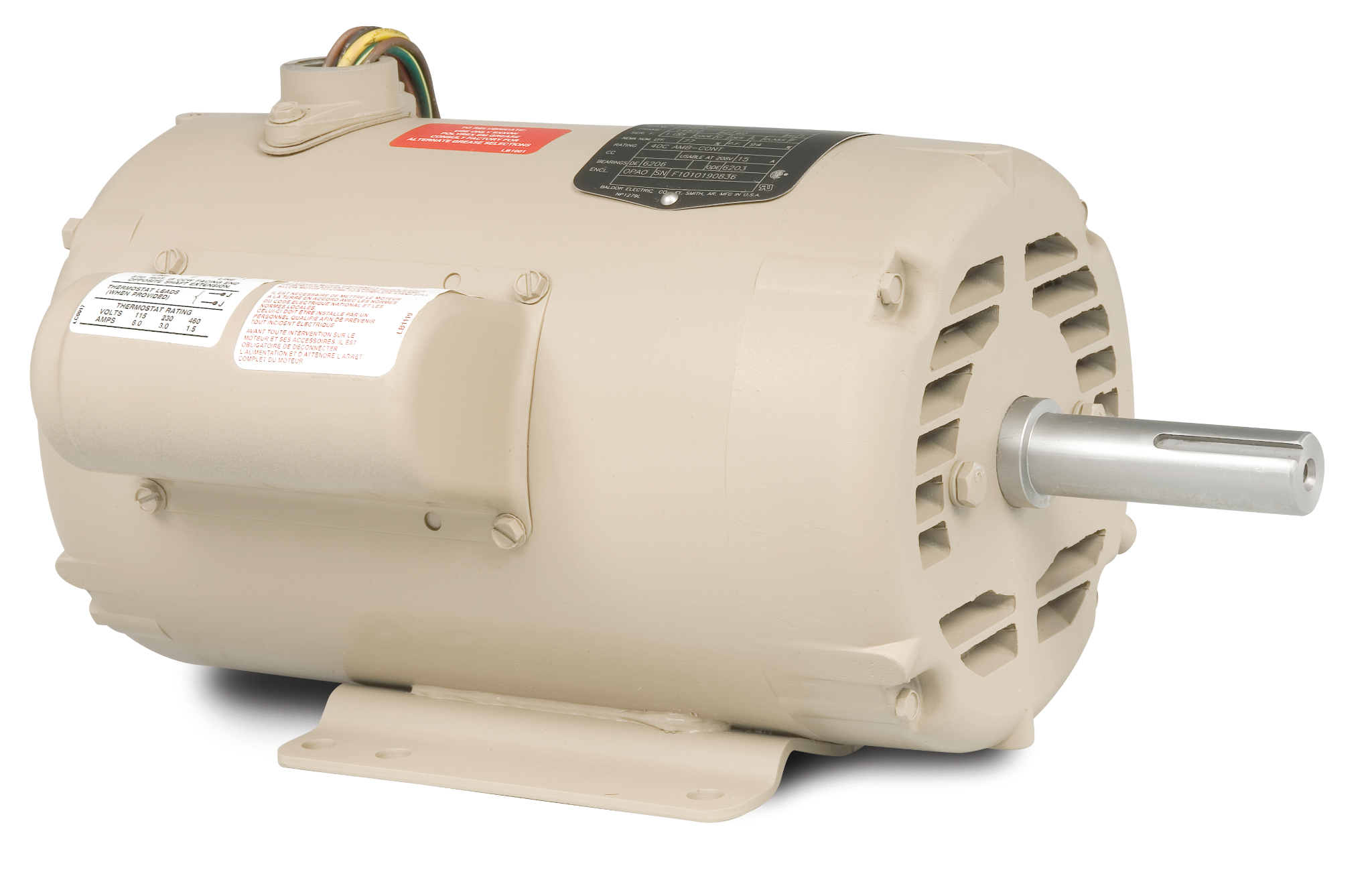

UCL3145

3-4.5HP, 3450RPM, 1PH, 60HZ, 145TZ, 3540LC

Product Information Packet PDF

Ship Weight 60.000 LB
UPC 781568205273

Specs

Catalog Number UCL3145
Enclosure OLC
Frame 145TZ
Frame Material Steel
Frequency 60.00 Hz
Output @ Frequency 4.500 HP @ 60 HZ
3.000 HP @ 60 HZ
Phase 1
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Voltage @ Frequency 230.0 V @ 60 HZ
XP Class and Group None
XP Division Not Applicable
Agency Approvals UR
CSA
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Current @ Voltage 14.300 A @ 230.0 V
21.500 A @ 208.0 V
Design Code -
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 77.8 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 14.3 a
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No Heater
Insulation Class F
Inverter Code Not Inverter
KVA Code J
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Pipe Or Pipe Adaptor
Motor Lead Termination Flying Leads
Motor Lead Quantity/Wire Size 2 @ 12 AWG, A PH
Motor Type 3540LC
Mounting Arrangement F1
Number of Poles 2
Overall Length 15.62 IN
Power Factor 91
Product Family General Purpose
Product Type FARM DUTY
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Tapped & Key
Rodent Screen Included
RoHS Status ROHS NON-COMPLIANT
Service Factor 1.00
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Motor Standards NEMA
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None

Drawings

{{ getDrwKindName(drawing.kind) }}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT.NO. UCL3145
SPEC. 35T926T819
HP 3-4.5 AIR OVER
VOLTS 230
AMP 14.3-20
RPM 3450
FRAME 145TZ HZ 60 PH 1
SER.F. 1.00 CODE J DES - CL F
NEMA-NOM-EFF 77.8 PF 91
RATING 40C AMB-CONT
CC USABLE AT 208V 21.5
DE 6206 ODE 6203
ENCL OLC SN
NP1279L
CAT.NO. UCL3145
SPEC. 35T926T819
HP 3-4.5 AIR OVER
VOLTS 230
AMP 14.3-20
RPM 3450
FRAME 145TZ HZ 60 PH 1
SER.F. 1.00 CODE J DES - CL F
NEMA-NOM-EFF 77.8 PF 91
RATING 40C AMB-CONT
CC USABLE AT 208V 21.5
DE 6206 ODE 6203
ENCL OLC SN
NP1263L

Performance

Performance at 230 V, 60 Hz, 4.5 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 0.462 Ohms A Ph / 2.24 Ohms B Ph
Temp. Rise @ Rated Load
Temp. Rise @ S.F. Load
Start Configuration DOL
Break-Down Torque 17 LB-FT
Pull-Up Torque 10.5 LB-FT
Locked-Rotor Torque 13 LB-FT
Starting Current 136 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 38.0 70.0 83.0 89.0 92.0 93.0 93.0 0.0
Efficiency 0.0 57.4 71.5 76.8 78.5 78.4 77.1 0.0
Speed (RPM) 3,592 3,569 3,544 3,516 3,486 3,451 3,409 0
Line Amps 7.10 9.20 12.30 16.00 20.30 25.00 30.40 0.00

Performance Curves

Parts

Part Number Description Quantity
OC3030F11SP CAPACITOR 30 MFD 370 VAC 1.000 EA
HA6021A01SP ADAPTOR, MACH 1.000 EA
35CB4802A02SP CAPACITOR COVER, STAMPED X 2.000 EA

Accessories

Part Number Description List Price
35-1409 C FACE KIT 208.00 USD
