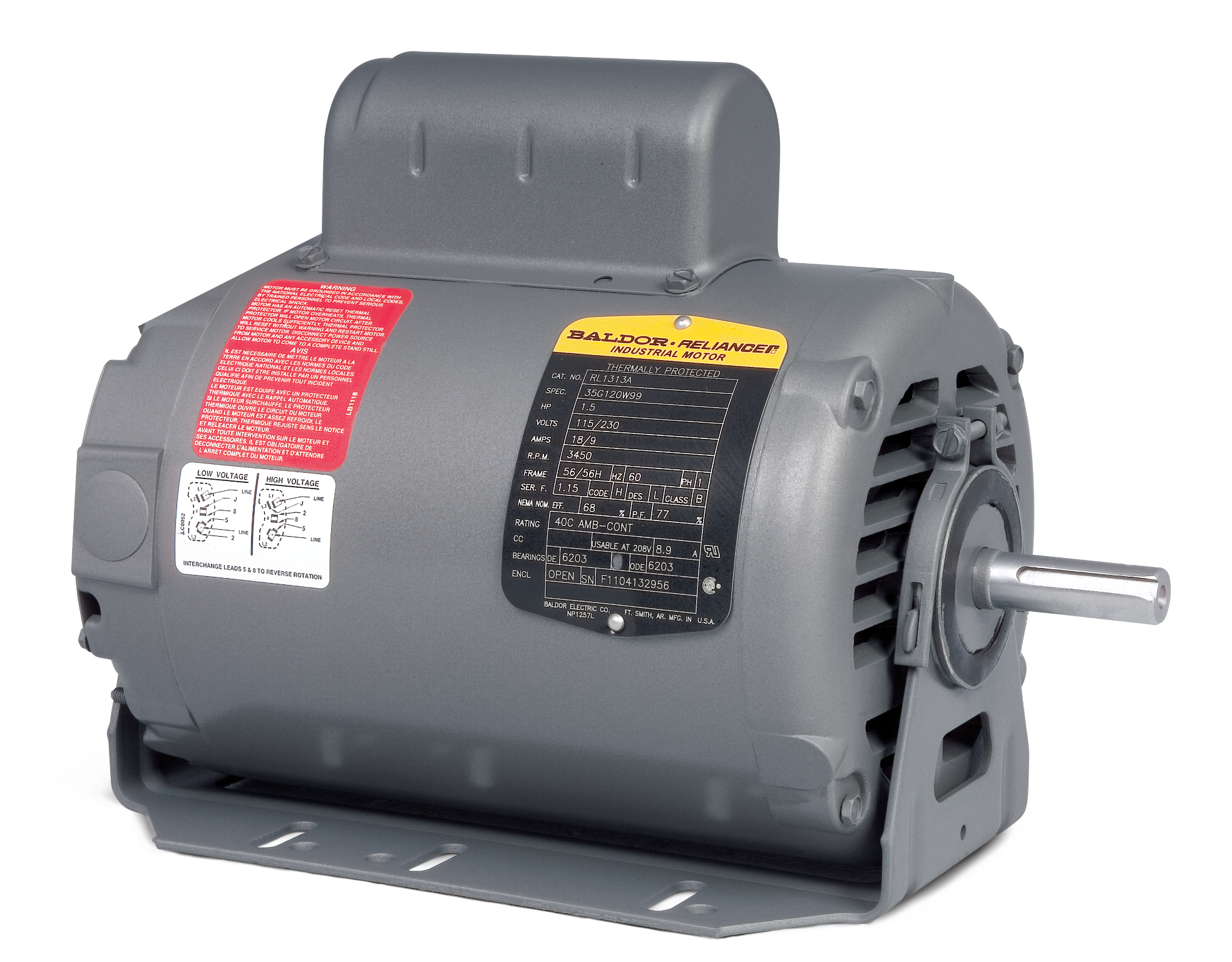

RL1301A277

Ship Weight	23.000 LB
UPC	781568308295

Specs

Catalog Number RL1301A277

Enclosure ODP

Frame 56

Frame Material Steel

Frequency 60.00 Hz

Motor Letter Type Cap Start, Induction Run

Output @ Frequency .330 HP @ 60 HZ

Phase 1

Synchronous Speed @ Frequency 1800 RPM @ 60 HZ

Voltage @ Frequency 277.0 V @ 60 HZ

Haz Area Class and Group None

Haz Area Division Not Applicable

Agency Approvals CURUS

Ambient Temperature 40 °C

Auxillary Box No Auxillary Box

Auxillary Box Lead Termination None

Base Indicator Resilient

Bearing Grease Type Polyrex EM (-20F +300F)

Blower None

Current @ Voltage 2.500 A @ 277.0 V

Design Code N

Drip Cover No Drip Cover

Duty Rating CONT

Efficiency @ 100% Load 60.0 %

Electrically Isolated Bearing Not Electrically Isolated

Feedback Device NO FEEDBACK

High Voltage Full Load Amps 2.5 a

Front Face Code Resilient Mount

Front Shaft Indicator None

Heater Indicator No Heater

Insulation Class B

Inverter Code Not Inverter

KVA Code L

Lifting Lugs No Lifting Lugs

Locked Bearing Indicator No Locked Bearing

Motor Lead Exit Terminal Panel

Motor Lead Termination Flying Leads

Motor Lead Quantity/Wire Size 5 @ 18 AWG

Motor Type 3414L

Mounting Arrangement F1

Number of Poles 4

Overall Length 10.97 IN

Power Factor 60

Product Family General Purpose

Pulley End Bearing Type Ball

Pulley Face Code Resilient Mount

Pulley Shaft Indicator Standard

Rodent Screen None

Service Factor 1.35

Shaft Diameter 0.625 IN

Shaft Extension Location Pulley End

Shaft Ground Indicator No Shaft Grounding

Shaft Rotation Reversible: Connected Standard

Shaft Slinger Indicator No Slinger

Speed 1725 rpm

Speed Code Single Speed

Motor Standards NEMA

Starting Method Direct on line

Thermal Device - Bearing None

Thermal Device - Winding None

Vibration Sensor Indicator No Vibration Sensor

Winding Thermal 1 Automatic Thermal Overload

Winding Thermal 1 Location SB

Winding Thermal 2 None

Drawings

CAD File

2D CAD

3D CAD

Remove

Add

Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.

The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.

CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.

CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.

CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.

Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.

Building download package.

Nameplate

CAT.NO.	RL1301A277
SPEC.	34K18W220
HP	.33
VOLTS	277
AMP	2.5
RPM	1725
FRAME	56						HZ	60				PH	1
SER.F.	1.35	CODE				L	DES		N	CL	B
NEMA-NOM-EFF	60		PF		60
RATING	40C AMB-CONT
CC
DE	6203			ODE			6203
ENCL	OPEN	SN
	SFA 2.8
	NP1257L

Performance

Performance at 277 V, 60 Hz, 0.33 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT

No-Load Current 0 A

Line-Line Res. @ 25° C 9.11 Ohms A Ph / 18.4 Ohms B Ph

Temp. Rise @ Rated Load

Temp. Rise @ S.F. Load

Start Configuration DOL

Break-Down Torque 3.12 LB-FT

Pull-Up Torque 2.75 LB-FT

Locked-Rotor Torque 4.06 LB-FT

Starting Current 10.3 A

Load Characteristics

Rated Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power Factor	21.0	32.0	43.0	52.0	60.0	67.0	72.0	69.0
Efficiency	0.0	34.7	50.5	58.7	63.3	65.7	66.6	66.1
Speed (RPM)	1,793	1,782	1,771	1,758	1,744	1,729	1,712	1,722
Line Amps	1.95	1.99	2.06	2.18	2.33	2.53	2.77	2.63

Performance Curves

Parts

Part Number	Description	Quantity
34CB4501SP	TERMINAL BOX LID, STAMPED X (PLATED)	1.000 EA
34CB4800SP	CAPACITOR COVER, STAMPED PRIMED	1.000 EA
MN416A01	TAG-INSTAL-MAINT no wire (2500bx)4/22	1.000 EA
