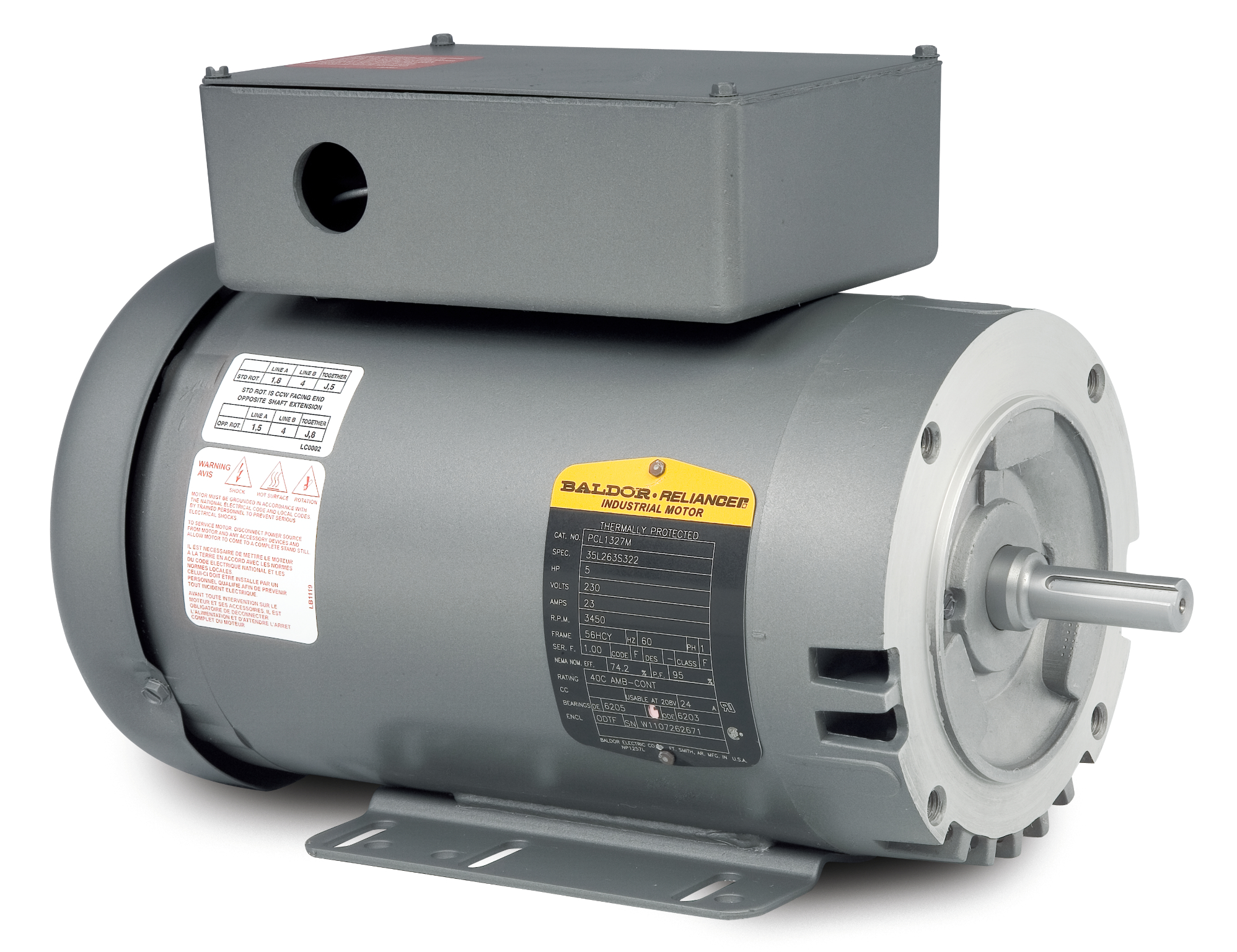

PCL1327M

5HP, 3450RPM, 1PH, 60HZ, 56HCY, 3535LC, ODTF

Product Information Packet PDF

Ship Weight 57.000 LB
UPC 781568112595

Specs

Catalog Number PCL1327M
Enclosure ODTF
Frame 56HCY
Frame Material Steel
Frequency 60.00 Hz
Motor Letter Type Cap Start, Cap Run
Output @ Frequency 5.000 HP @ 60 HZ
Phase 1
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Voltage @ Frequency 230.0 V @ 60 HZ
XP Class and Group None
XP Division Not Applicable
Agency Approvals CSA
UR
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Current @ Voltage 23.000 A @ 230.0 V
24.000 A @ 208.0 V
Design Code -
Drip Cover Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 74.2 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 23.0 a
Front Face Code Drip Cover Mounting
Front Shaft Indicator None
Heater Indicator No Heater
Insulation Class F
Inverter Code Not Inverter
KVA Code F
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Cap Box
Motor Lead Termination Flying Leads
Motor Lead Quantity/Wire Size 2 @ 12 AWG, A PH
Motor Type 3535LC
Mounting Arrangement F1
Number of Poles 2
Overall Length 14.11 IN
Power Factor 95
Product Family General Purpose
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.00
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Motor Standards NEMA
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding Do Not Use
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 Manual Thermal Overload
Winding Thermal 1 Location KO
Winding Thermal 2 None

Drawings

{{ getDrwKindName(drawing.kind) }}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT.NO. PCL1327M
SPEC. 35L263S322
HP 5
VOLTS 230
AMP 23
RPM 3450
FRAME 56HCY HZ 60 PH 1
SER.F. 1.00 CODE F DES - CL F
NEMA-NOM-EFF 74.2 PF 95
RATING 40C AMB-CONT
CC USABLE AT 208V 24
DE 6205 ODE 6203
ENCL ODTF SN
NP1257L

Performance

Performance at 230 V, 60 Hz, 5 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 0.535 Ohms A Ph / 1.1 Ohms B Ph
Temp. Rise @ Rated Load 89° C
Temp. Rise @ S.F. Load
Start Configuration DOL
Break-Down Torque 18.8 LB-FT
Pull-Up Torque 12.8 LB-FT
Locked-Rotor Torque 14.7 LB-FT
Starting Current 122 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 55.0 78.0 89.0 94.0 95.0 96.0 95.0 0.0
Efficiency 0.0 56.5 69.5 74.5 74.2 72.5 66.0 0.0
Speed (RPM) 3,595 3,570 3,535 3,500 3,450 3,390 3,275 0
Line Amps 8.90 10.40 13.70 17.80 23.00 28.60 36.20 0.00

Performance Curves

Parts

Part Number Description Quantity
OC3050F09SP CAPACITOR 50 MFD 370 VAC 1.000 EA
EC1161C06SP ELEC CAP, 161-193 MFD, 250V, 2.06D X 4. 2.000 EA
35CB4802A02SP CAPACITOR COVER, STAMPED X 1.000 EA
35FN3002A05SP EXFN, PLASTIC, 6.376 OD, .638 ID 1.000 EA
35FH4006A01SP DRIP COVER,STAMPED,W/ PRIMER 1.000 EA
