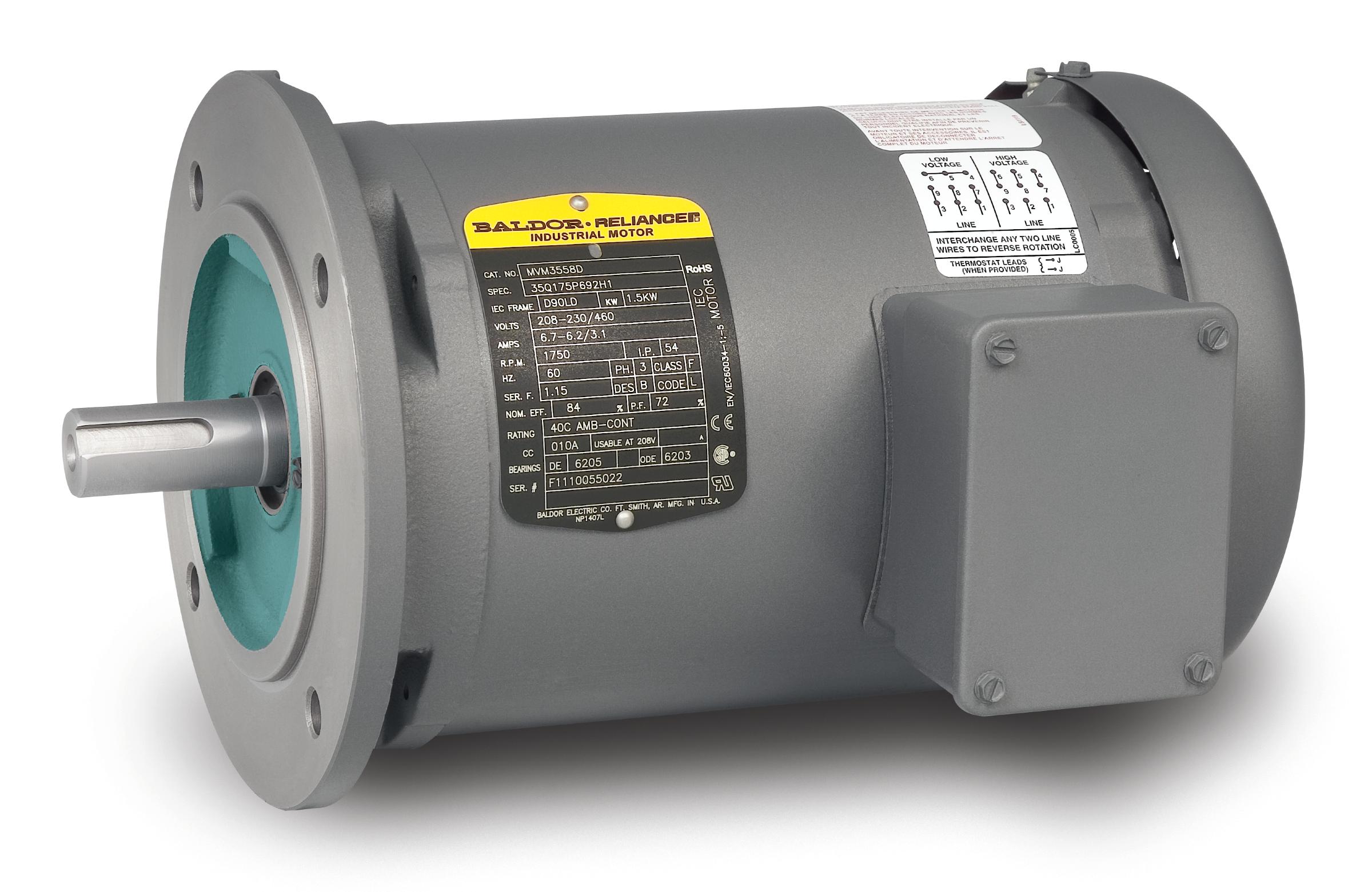

MVM3613D

3.7KW, 3450RPM, 3PH, 60HZ, D100LD, 3626M, TEFC

Product Information Packet PDF

Ship Weight 79.000 LB
UPC 781568109410
Product has been discontinued

Specs

Catalog Number MVM3613D
Enclosure TEFC
Frame D100LD
Frame Material Steel
Frequency 60.00 Hz
Motor Letter Type Three Phase
Output @ Frequency 3.700 KW @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Voltage @ Frequency 230.0 V @ 60 HZ
208.0 V @ 60 HZ
460.0 V @ 60 HZ
Haz Area Class and Group None
Haz Area Division Not Applicable
Agency Approvals CE
CSA
UR
WEEE
Ambient Temperature 40 °C
Auxiliary Box NO AUXILLARY BOX
Auxiliary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Current @ Voltage 5.800 A @ 460.0 V
12.600 A @ 208.0 V
11.600 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 87.5 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 5.8 a
Frame Prefix D
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No Heater
Insulation Class F
Inverter Code Not Inverter
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Termination Flying Leads
Motor Lead Quantity/Wire Size 9 @ 16 AWG
Motor Type 3626M
Mounting Arrangement B5
Number of Poles 2
Overall Length 15.77 IN
Power Factor 93
Product Family General Purpose
Pulley End Bearing Type Ball
Pulley Face Code D-Flange
Pulley Shaft Indicator Tapped & Key
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.103 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Motor Standards IEC
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None

Drawings

{{getDrwKindName(drawing.kind)}}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT.NO. MVM3613D
SPEC. 36H938T850H1
IEC FRAME D100LD K.W. 3.7KW TE
VOLTS 208-230/460
AMP 12.6-11.6/5.8
RPM 3450 I.P. 54
HZ 60 PH 3 CL F
SER.F. 1.15 DES B CODE K
NEMA-NOM-EFF 87.5 PF 93
RATING 40C AMB-CONT
CC 010A USABLE AT 208V N/A
DE 6206 ODE 6205
SER. #
NP1407L

Performance

Performance at 460 V, 60 Hz, 3.7 kw

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 2.44 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load 71° C
Temp. Rise @ S.F. Load 90° C
Start Configuration DOL
Break-Down Torque 32.6 LB-FT
Pull-Up Torque 23.6 LB-FT
Locked-Rotor Torque 26.7 LB-FT
Starting Current 54 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 12.0 60.0 81.0 89.0 93.0 94.0 95.0 94.0
Efficiency 0.0 82.4 87.8 88.3 87.5 86.0 84.1 86.6
Speed (RPM) 3,599 3,564 3,530 3,494 3,454 3,412 3,363 3,429
Line Amps 1.89 2.34 3.36 4.52 5.79 7.24 8.80 6.66

Performance Curves

Parts

Part Number Description Quantity
36FN3000C01SP EXFN, PLASTIC, 5.25 OD, .912 ID 1.000 EA
36GS1000SP GASKET-CONDUIT BOX, .06 THICK #SV-330 LE 1.000 EA
36EP3104A01 FREP MACH W/GRSR, RAISED FH PADS 1.000 EA
37GS1001SP GASKET, CONDUIT BOX LID, .06 THICK LEXID 1.000 EA
LB1624 WARNING LABEL 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (2400 bx)4/22 1.000 EA
