MT-4545-ATYCN

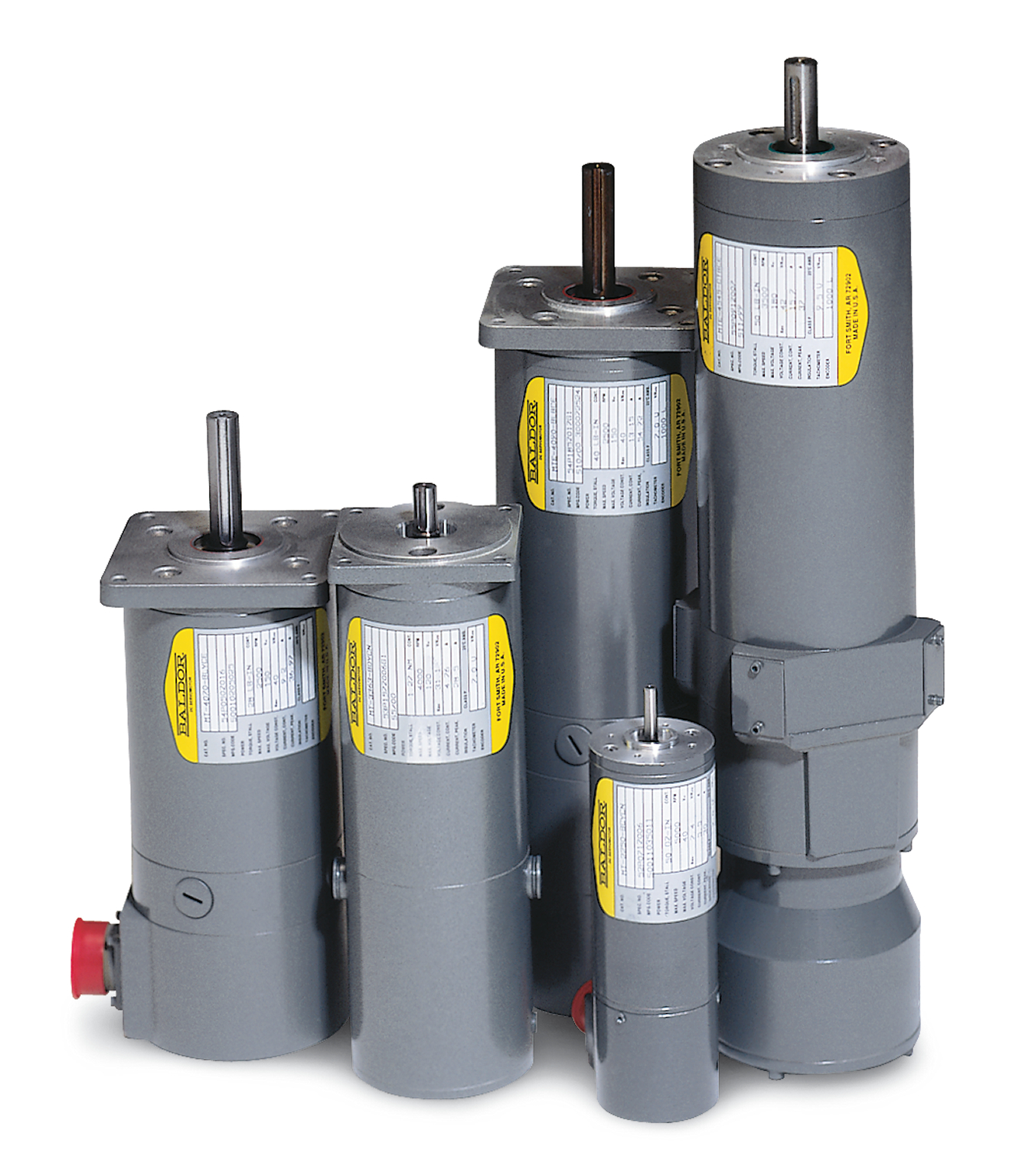

DC Servo Mtr, 5.65NM, 180v, 2000rpm max

Product Information Packet PDF

Ship Weight 23.700 LB
UPC 781568181379
Product has been discontinued

Specs

Enclosure TENV
Motor Type 5548P
Nameplate Speed 2000
Nameplate Voltage 180
Peak Current 36.1 a
Agency Approvals UR
Ambient Temperature 25 °C
Connection Diagram CD0194
Constant Stall Current 8.02 a
Dimensional Drawing Numbers 55LYP537
Duty Rating CONT
Feedback Signal NONE
Frame Material Laminated
Insulation Class F
Motor Lead Quantity/Wire Size 2 @ 16 AWG
Mounting Arrangement 0.000
Motor Standards NEMA
