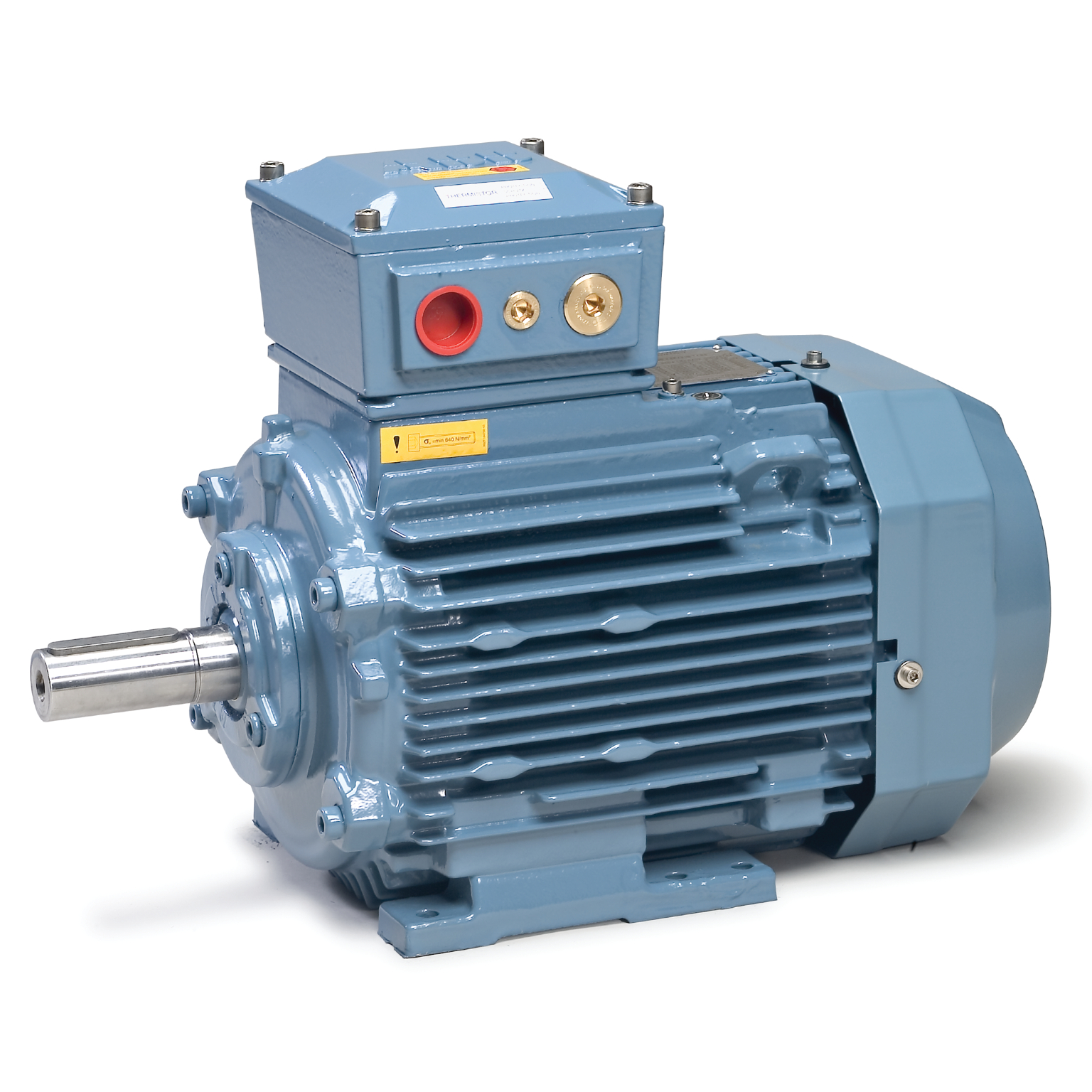

MM16114-EX2

M3JP 160 MLC 4P B3 11KW
Ship Weight 511.467 LB
UPC 781568678695

Specs

Catalog Number MM16114-EX2
Enclosure TEFC
Frame 160
Frame Material Cast Iron
Frequency 50.00 Hz
Output @ Frequency 11.00 KW @ 50 HZ
Phase 3
Synchronous Speed @ Frequency 1500 RPM @ 50 HZ
Voltage @ Frequency 690 V @ 50 HZ
415 V @ 50 HZ
400 V @ 50 HZ
Ambient Temperature 40 °C
Auxillary Box Top
CE CE
Current @ Voltage 12.30 A @ 690 V
21.30 A @ 415 V
21.50 A @ 400 V
Duty Rating S1
Efficiency @ 100% Load 91.3 %
Efficiency @ 50% Load 90.3 %
Efficiency @ 75% Load 91.4 %
High Voltage Full Load Amps 12.3 a
Insulation Class F
IP Rating IP55
Number of Poles 4
Power Factor .08
Product Family Hazardous Areas
PTC Thermistor Conn Diagram 3GZF321200-1D
Rotor Inertia 0.00096 lb-ft2
Speed 1470 rpm
1472 rpm
Speed Code Single Speed
Motor Standards IEC
