MM11044-EX1

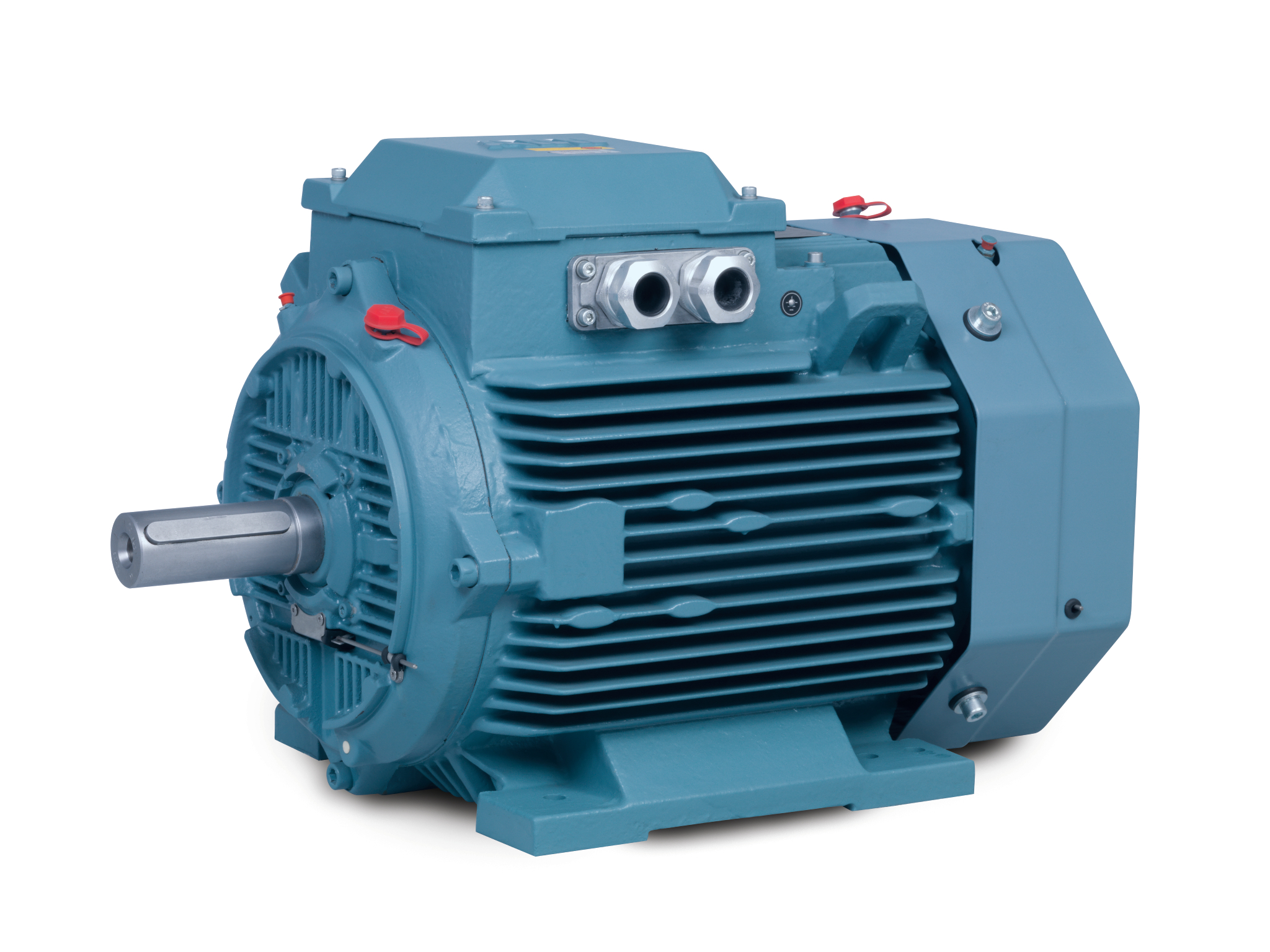

M3GP 112 MC 4P B3 4KW
Ship Weight 168.000 LB
UPC 781568678596
Product has been discontinued

Specs

Catalog Number MM11044-EX1
Enclosure TEFC
Frame 112
Frame Material Cast Iron
Frequency 50.00 Hz
Output @ Frequency 4.00 KW @ 50 HZ
Phase 3
Synchronous Speed @ Frequency 1500 RPM @ 50 HZ
Voltage @ Frequency 230 V @ 50 HZ
400 V @ 50 HZ
Ambient Temperature 40 °C
Auxillary Box Top
CE CE
Current @ Voltage 14.70 A @ 230 V
8.59 A @ 400 V
Duty Rating S1
Efficiency @ 100% Load 85.8 %
Efficiency @ 50% Load 83.6 %
Efficiency @ 75% Load 85.7 %
High Voltage Full Load Amps 8.6 a
Insulation Class F
IP Rating IP55
Number of Poles 4
Power Factor .79
Product Family Hazardous Areas
PTC Thermistor Conn Diagram 3GZF321200-1D
Rotor Inertia 0.00093 lb-ft2
Speed 1458 rpm
Speed Code Single Speed
Motor Standards IEC
