MM09152-PP

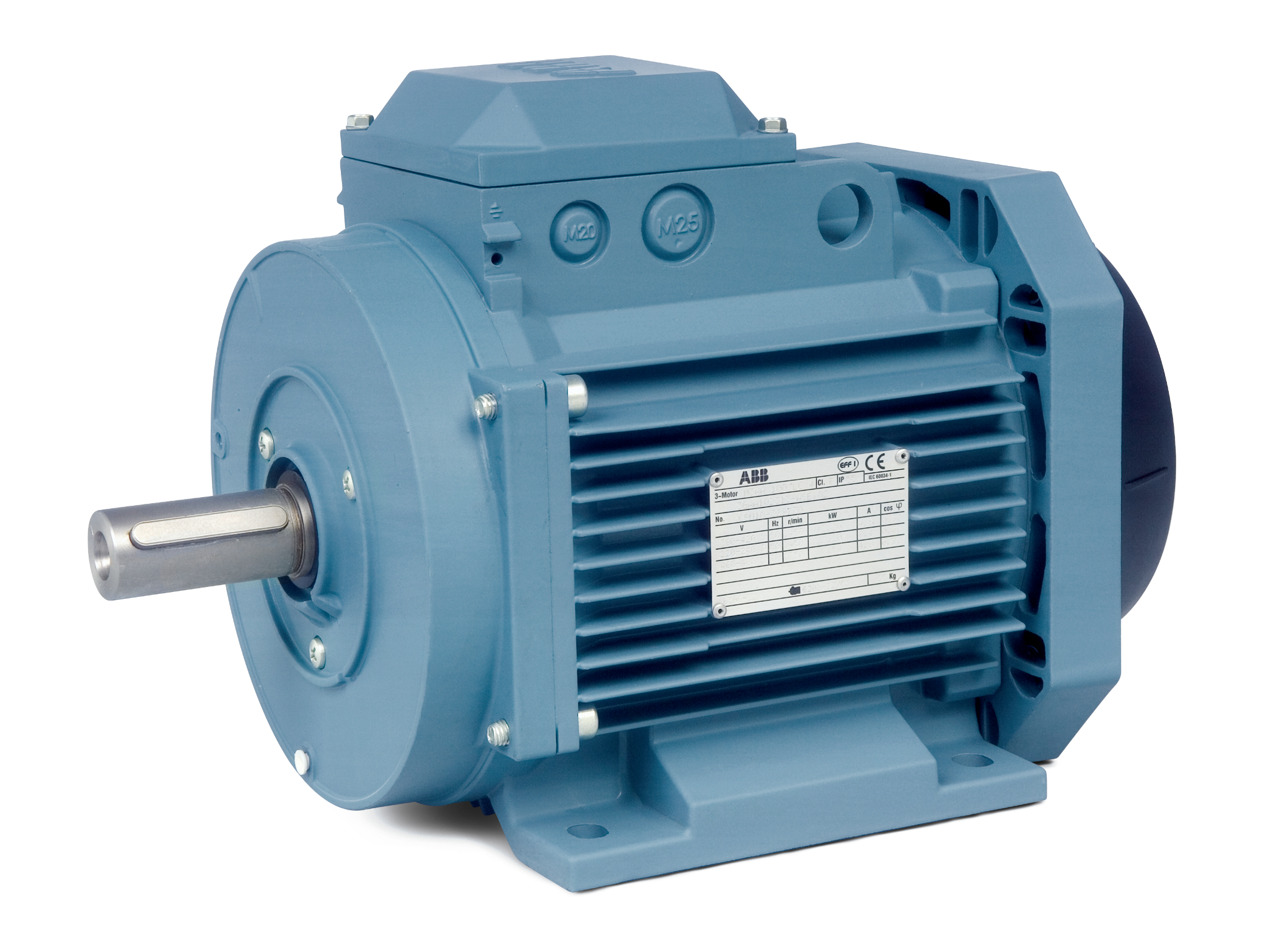

M3BP 90 SLB 2P B3 1.5KW
Ship Weight 53.000 LB
UPC 781568659861
Product has been discontinued

Specs

Catalog Number MM09152-PP
Enclosure TEFC
Frame 90
Frame Material Cast Iron
Frequency 50.00 Hz
60.00 Hz
Output @ Frequency 1.50 KW @ 50 HZ
1.50 KW @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 3000 RPM @ 50 HZ
Voltage @ Frequency 460 V @ 60 HZ
400 V @ 50 HZ
230 V @ 50 HZ
Ambient Temperature 40 °C
Auxillary Box Top
CE CE
Current @ Voltage 2.57 A @ 460 V
2.94 A @ 400 V
5.11 A @ 230 V
Duty Rating S1
Efficiency @ 100% Load 82.9 %
Efficiency @ 50% Load 82.8 %
Efficiency @ 75% Load 83.8 %
High Voltage Full Load Amps 2.6 a
Insulation Class F
IP Rating IP55
Number of Poles 2
Power Factor .88
Product Family Process Performance
PTC Thermistor Conn Diagram 3GZF321200-1D
Rotor Inertia 0.00254 lb-ft2
Speed 2900 rpm
3505 rpm
Speed Code Single Speed
Motor Standards IEC
