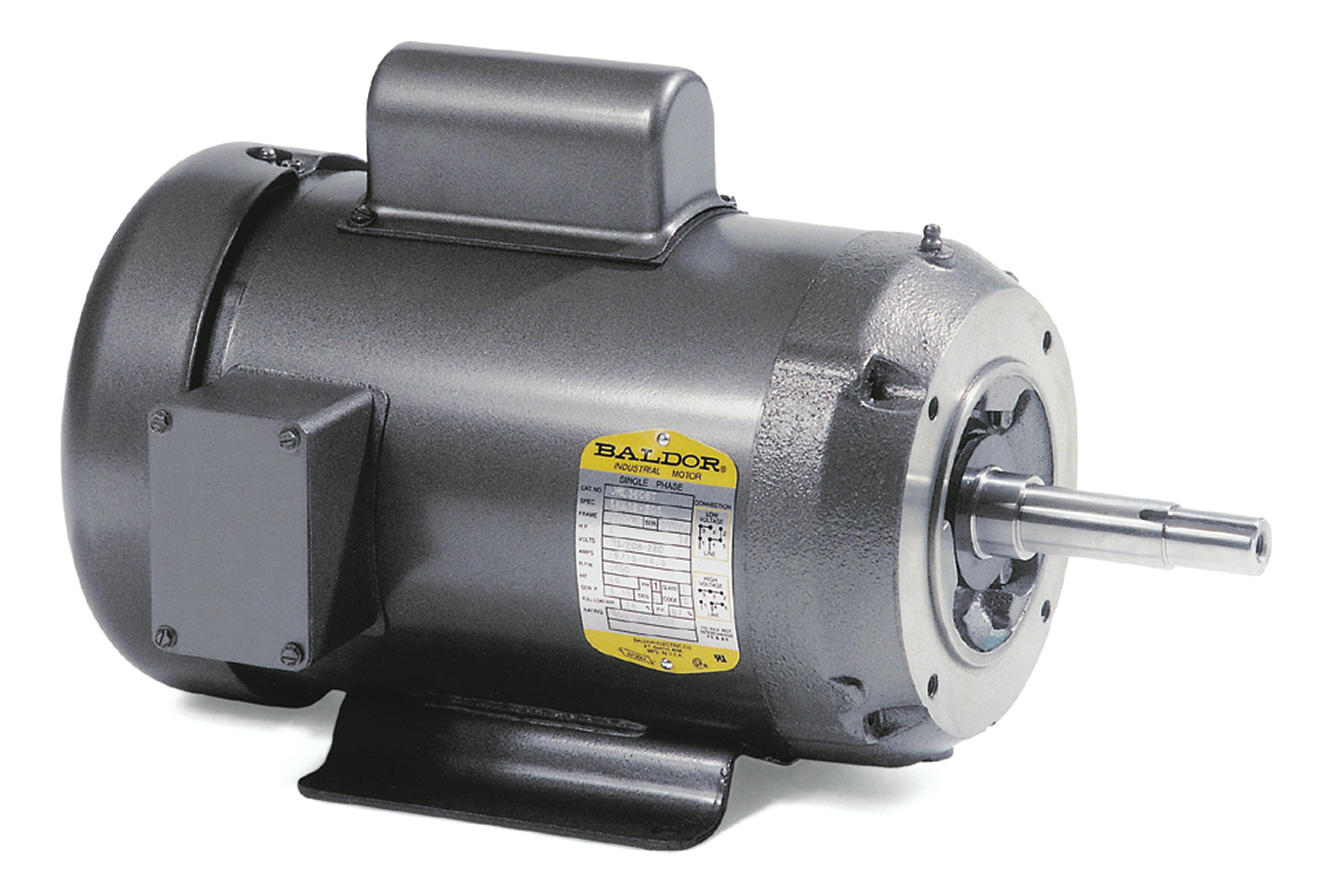

JML1512T

10HP, 1725RPM, 1PH, 60HZ, 215JM, 3744LC, ODTF

Product Information Packet PDF

Ship Weight 150.000 LB
UPC 781568204740

Specs

Catalog Number JML1512T
Enclosure ODTF
Frame 215JM
Frame Material Steel
Frequency 60.00 Hz
Motor Letter Type Cap Start, Cap Run
Output @ Frequency 10.000 HP @ 60 HZ
Phase 1
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 230.0 V @ 60 HZ
XP Class and Group None
XP Division Not Applicable
Agency Approvals CSA
UR
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Current @ Voltage 41.000 A @ 230.0 V
45.000 A @ 208.0 V
Design Code L
Drip Cover Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 84.0 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 41.0 a
Front Face Code Drip Cover Mounting
Front Shaft Indicator None
Heater Indicator No Heater
Insulation Class F
Inverter Code Not Inverter
KVA Code F
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Cap Box
Motor Lead Termination Flying Leads
Motor Lead Quantity/Wire Size 2 @ 8 AWG, A PH
Motor Type 3744LC
Mounting Arrangement F1
Number of Poles 4
Overall Length 20.95 IN
Power Factor 94
Product Family General Purpose
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen Included
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1725 rpm
Speed Code Single Speed
Motor Standards NEMA
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None

Drawings

{{ getDrwKindName(drawing.kind) }}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT.NO. JML1512T
SPEC. 37F842Y497
HP 10
VOLTS 230
AMP 41
RPM 1725
FRAME 215JM HZ 60 PH 1
SER.F. 1.15 CODE F DES L CLASS F
NEMA-NOM-EFF 84 PF 94
RATING 40C AMB-CONT
CC USABLE AT 208V 45
DE 6309 ODE 6206
ENCL ODTF SN
NP1256L

Performance

Performance at 230 V, 60 Hz, 10 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 0.18838 Ohms A Ph / 0.70995 Ohms B Ph
Temp. Rise @ Rated Load 87° C
Temp. Rise @ S.F. Load 119° C
Start Configuration DOL
Break-Down Torque 78.7 LB-FT
Pull-Up Torque 57.9 LB-FT
Locked-Rotor Torque 69.1 LB-FT
Starting Current 225 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 31.0 80.0 92.0 95.0 95.0 94.0 92.0 94.0
Efficiency 0.0 75.1 84.6 85.8 83.9 79.7 74.8 81.4
Speed (RPM) 1,799 1,786 1,770 1,753 1,729 1,700 1,666 1,712
Line Amps 10.20 13.50 20.60 29.70 40.80 53.90 70.50 48.70

Performance Curves

Parts

Part Number Description Quantity
OC3040F18SP 7YL OIL CAP 40MFD/370V 2.000 EA
EC1216C06SP ELEC CAP, 216-259 MFD, 250V, 2.06D X 4. 3.000 EA
37FN3002A01SP EXFN, PLASTIC, 9.00 OD, 1.155 ID 1.000 EA
37FH4000A05SP DRIP COVER, W/ PRIMER 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (2200bx) 4/22 1.000 EA
