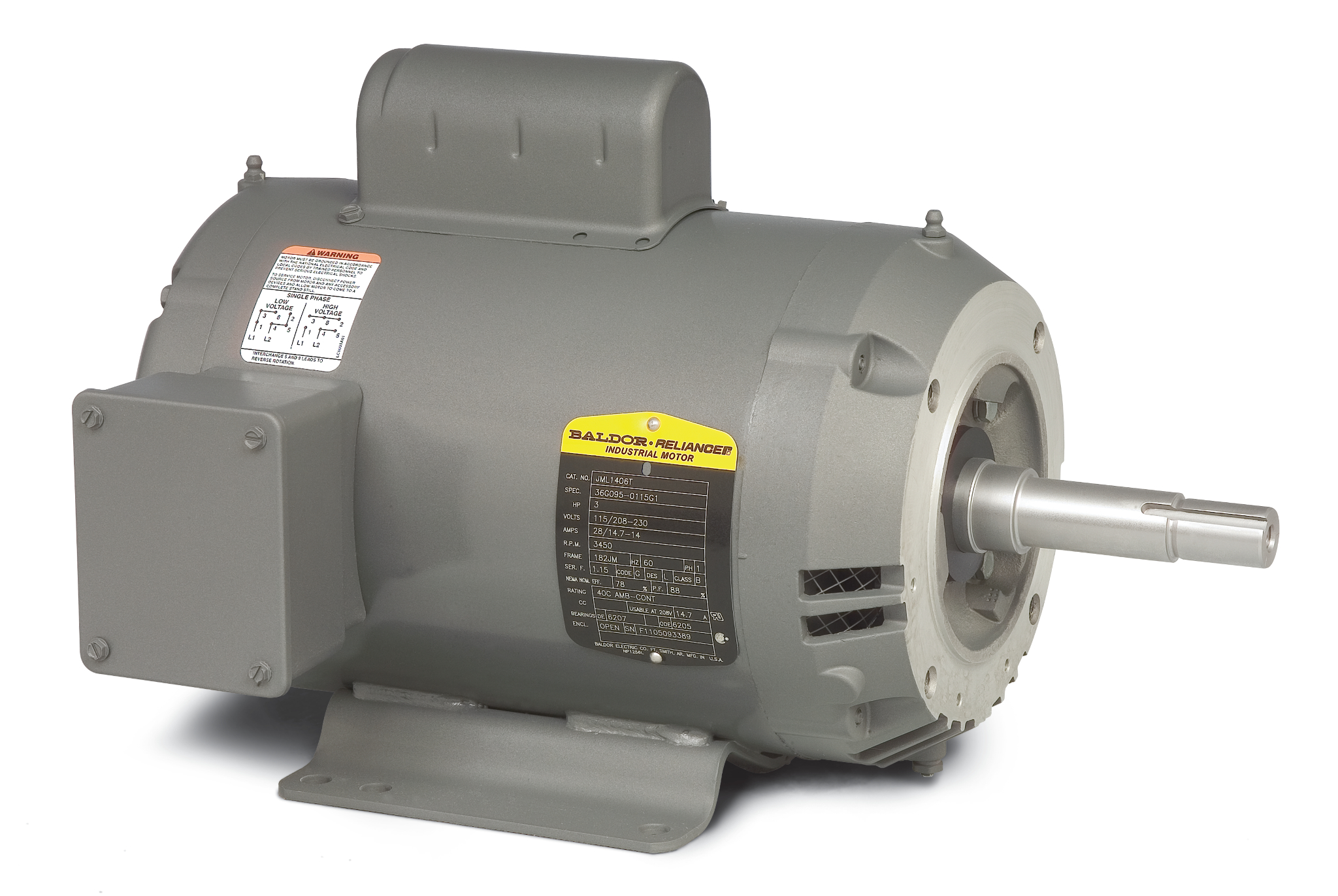

JML1406T

Ship Weight	69.000 LB
UPC	781568114629

Specs

Catalog Number JML1406T

Enclosure OPEN

Frame 182JM

Frame Material Steel

Frequency 60.00 Hz

Motor Letter Type Cap Start, Induction Run

Output @ Frequency 3.000 HP @ 60 HZ

Phase 1

Synchronous Speed @ Frequency 3600 RPM @ 60 HZ

Voltage @ Frequency 230.0 V @ 60 HZ
208.0 V @ 60 HZ
115.0 V @ 60 HZ

Haz Area Class and Group None

Haz Area Division Not Applicable

Agency Approvals CSA
UR

Ambient Temperature 40 °C

Auxillary Box No Auxillary Box

Auxillary Box Lead Termination None

Base Indicator Rigid

Bearing Grease Type Polyrex EM (-20F +300F)

Blower None

Current @ Voltage 28.000 A @ 115.0 V
14.700 A @ 208.0 V
14.000 A @ 230.0 V

Design Code L

Drip Cover No Drip Cover

Duty Rating CONT

Efficiency @ 100% Load 78.0 %

Electrically Isolated Bearing Not Electrically Isolated

Feedback Device NO FEEDBACK

High Voltage Full Load Amps 14.0 a

Front Face Code Standard

Front Shaft Indicator None

Heater Indicator No Heater

Insulation Class F

Inverter Code Not Inverter

KVA Code G

Lifting Lugs No Lifting Lugs

Locked Bearing Indicator Locked Bearing

Motor Lead Exit Ko Box

Motor Lead Termination Flying Leads

Motor Lead Quantity/Wire Size 4 @ 14 AWG, A PH

Motor Type 3628L

Mounting Arrangement F1

Number of Poles 2

Overall Length 16.50 IN

Power Factor 88

Product Family General Purpose

Pulley End Bearing Type Ball

Pulley Face Code C-Face

Pulley Shaft Indicator Tapped & Key

Rodent Screen Included

Service Factor 1.15

Shaft Diameter 0.875 IN

Shaft Extension Location Pulley End

Shaft Ground Indicator No Shaft Grounding

Shaft Rotation Reversible

Shaft Slinger Indicator Shaft Slinger

Speed 3450 rpm

Speed Code Single Speed

Motor Standards NEMA

Starting Method Direct on line

Thermal Device - Bearing None

Thermal Device - Winding None

Vibration Sensor Indicator No Vibration Sensor

Winding Thermal 1 None

Winding Thermal 2 None

Drawings

CAD File

2D CAD

3D CAD

Remove

Add

Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.

The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.

CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.

CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.

CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.

Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.

Building download package.

Nameplate

CAT.NO.	JML1406T
SPEC.	36G095-0115G1
HP	3
VOLTS	115/208-230
AMP	28/14.7-14
RPM	3450
FRAME	182JM			HZ		60				PH		1
SER.F.	1.15	CODE			G	DES		L	CLASS		F
NEMA-NOM-EFF	78		PF		88
RATING	40C AMB-CONT
CC
DE	6207			ODE			6205
ENCL	OPEN	SN

	NP1256L

Performance

Performance at 230 V, 60 Hz, 3 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT

No-Load Current 0 A

Line-Line Res. @ 25° C 0.175 Ohms A Ph / 0.914 Ohms B Ph

Temp. Rise @ Rated Load 56° C

Temp. Rise @ S.F. Load 74° C

Start Configuration DOL

Break-Down Torque 10.5 LB-FT

Pull-Up Torque 7.5 LB-FT

Locked-Rotor Torque 8.3 LB-FT

Starting Current 74 A

Load Characteristics

Rated Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power Factor	31.0	63.0	79.0	86.0	89.0	91.0	91.0	90.0
Efficiency	0.0	58.1	70.7	74.6	75.2	73.9	70.9	74.4
Speed (RPM)	3,588	3,557	3,522	3,484	3,439	3,385	3,314	3,407
Line Amps	5.35	6.60	8.70	11.40	14.50	18.20	22.70	16.70

Performance Curves

Parts

Part Number	Description	Quantity
EC1850A06SP	ELEC CAP 115V 2.0 X 4.3 X	1.000 EA
35CB4802A02SP	CAPACITOR COVER, STAMPED X	1.000 EA
MN416A01	TAG-INSTAL-MAINT no wire (2100bx)4/22	1.000 EA
