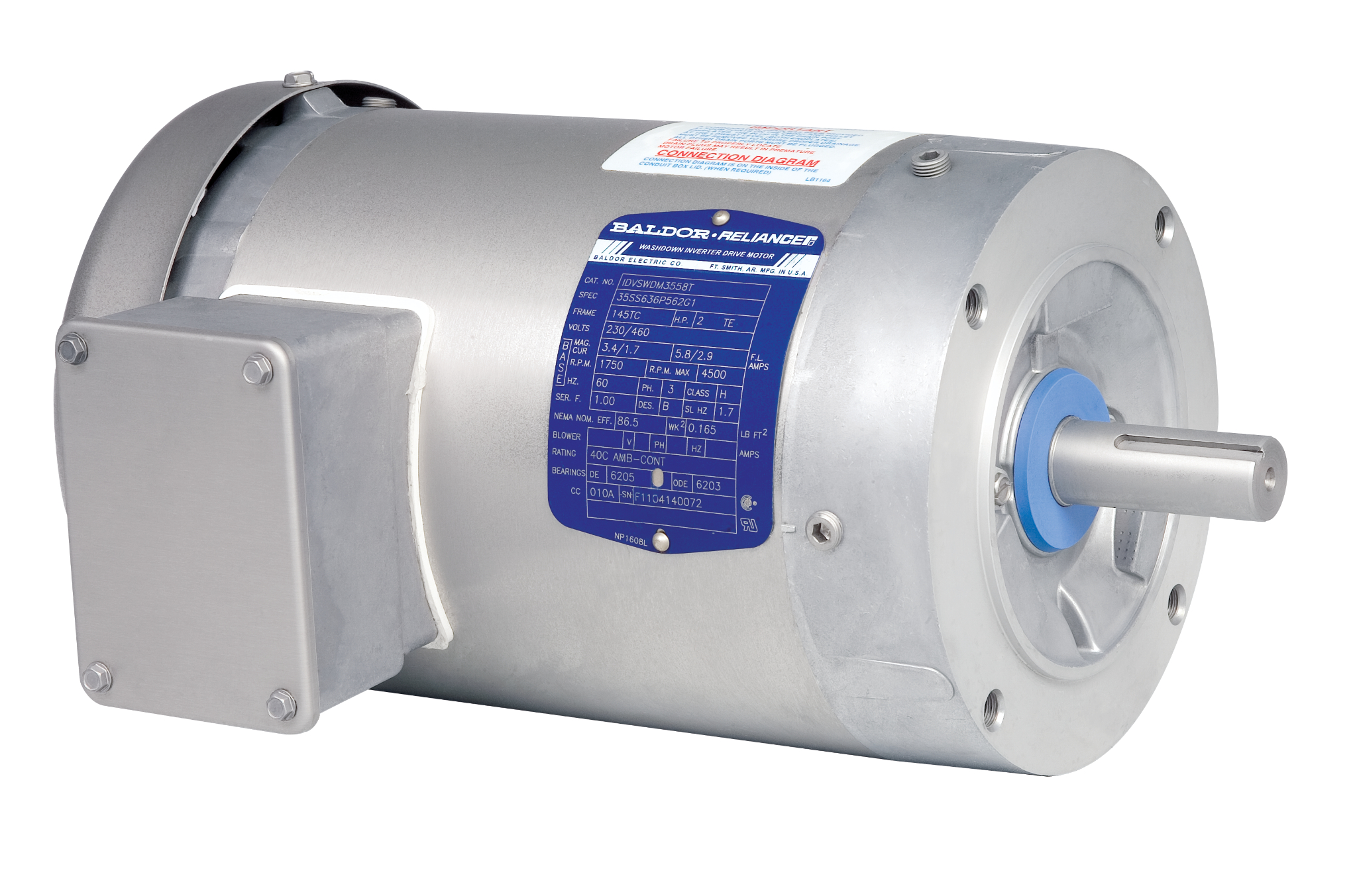

IDVSWDM3558

2HP, 1760RPM, 3PH, 60HZ, 56C, 3528M, TEFC, F1, N

Product Information Packet PDF

Ship Weight 45.000 LB
UPC 781568301128

Specs

Catalog Number IDVSWDM3558
Enclosure TEFC
Frame 56C
Frame Material Stainless Steel
Frequency 60.00 Hz
Motor Letter Type Three Phase
Output @ Frequency 2.000 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 230.0 V @ 60 HZ
460.0 V @ 60 HZ
Haz Area Class and Group None
Haz Area Division Not Applicable
Agency Approvals UR
CSA
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Current @ Voltage 2.900 A @ 460.0 V
5.800 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 86.5 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 2.9 a
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No Heater
Insulation Class H
Inverter Code Inverter Duty
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 4500 rpm
Motor Lead Exit Ko Box
Motor Lead Termination Flying Leads
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Type 3528M
Mounting Arrangement F1
Number of Poles 4
Overall Length 13.22 IN
Power Factor 75
Product Family Wash Down Paint Free
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS NON-COMPLIANT
Service Factor 1.00
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1750 rpm
Speed Code Single Speed
Motor Standards NEMA
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None

Drawings

{{getDrwKindName(drawing.kind)}}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT.NO. IDVSWDM3558
SPEC. 35S640G073G1
FRAME 56C H.P. 2 TE
VOLTS 230/460
MAG. CUR. 3.2/1.6 F.L. AMPS 5.6/2.8
R.P.M. 1760 R.P.M. MAX 2700
HZ. 60 PH. 3 CLASS H
SER.F. 1.00 DES. B SL HZ 1.3
NEMA NOM. EFF. 86.5 WK2 0.202
BLWR V PH HZ AMPS
RATING 40C AMB-CONT
DE BRG 6205 ODE BRG 6203
CC 010A SN
INV WDG ISR WIRE
NP3956L

Performance

Performance at 460 V, 60 Hz, 2 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 9.54 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load 64° C
Temp. Rise @ S.F. Load
Start Configuration DOL
Break-Down Torque 20.5 LB-FT
Pull-Up Torque 13.8 LB-FT
Locked-Rotor Torque 15 LB-FT
Starting Current 22.5 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 7.0 35.0 55.0 68.0 76.0 81.0 84.0 0.0
Efficiency 0.0 78.2 85.3 86.8 86.5 85.4 83.6 0.0
Speed (RPM) 1,799 1,791 1,782 1,771 1,760 1,748 1,734 0
Line Amps 1.62 1.71 1.97 2.34 2.82 3.36 3.97 0.00

Performance Curves

Parts

Part Number Description Quantity
HW4600B39SP V-RING SLINGER 0.550 X 0.790 X .18 VITON 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (2100bx)4/22 1.000 EA
