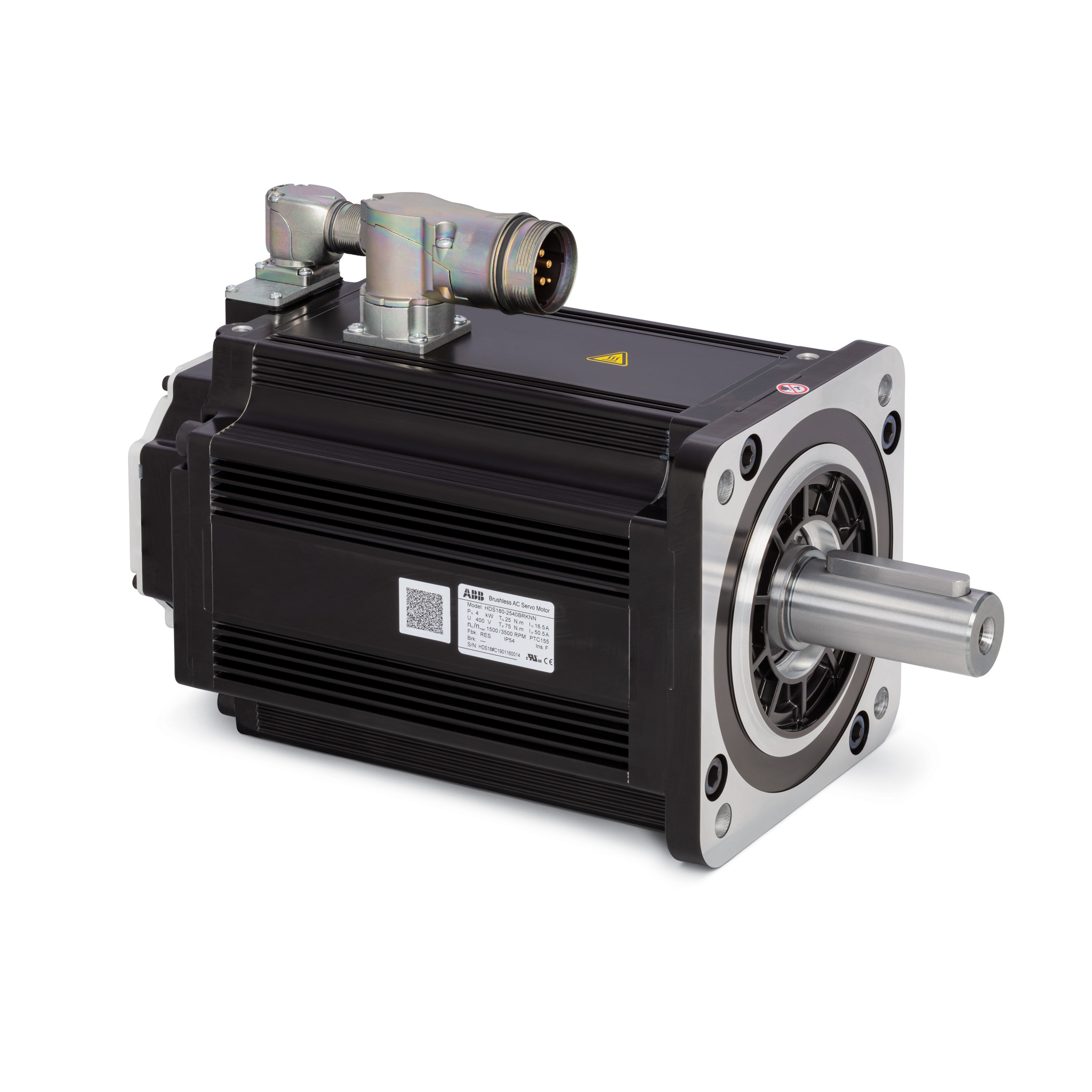

HDS180-2540BRKNN

HDS180-2540BRKNN, RES, KEY

Product Information Packet PDF

Ship Weight 43.431 LB
UPC 781568889817
Product has been discontinued

Specs

Bearing Grease Type Polyrex EM
Dimensional Drawing Numbers HD180LYA001
Nameplate Amps 16.5

Drawings

Dimension Sheet

Connection Diagram

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

MODEL: HDS180-2540BRKNN
PN 4.0 KW TO 25.0 N.M IO 16.5 A
U 400 V TP 75.0 N.M IP 50.5 A
NN/N MAX 1500/3500 RPM 3XPTC130
FBK RES IP IP54 INS F
BRK: VDC/ N.M
S/N
LB1577T01
