GCP24134

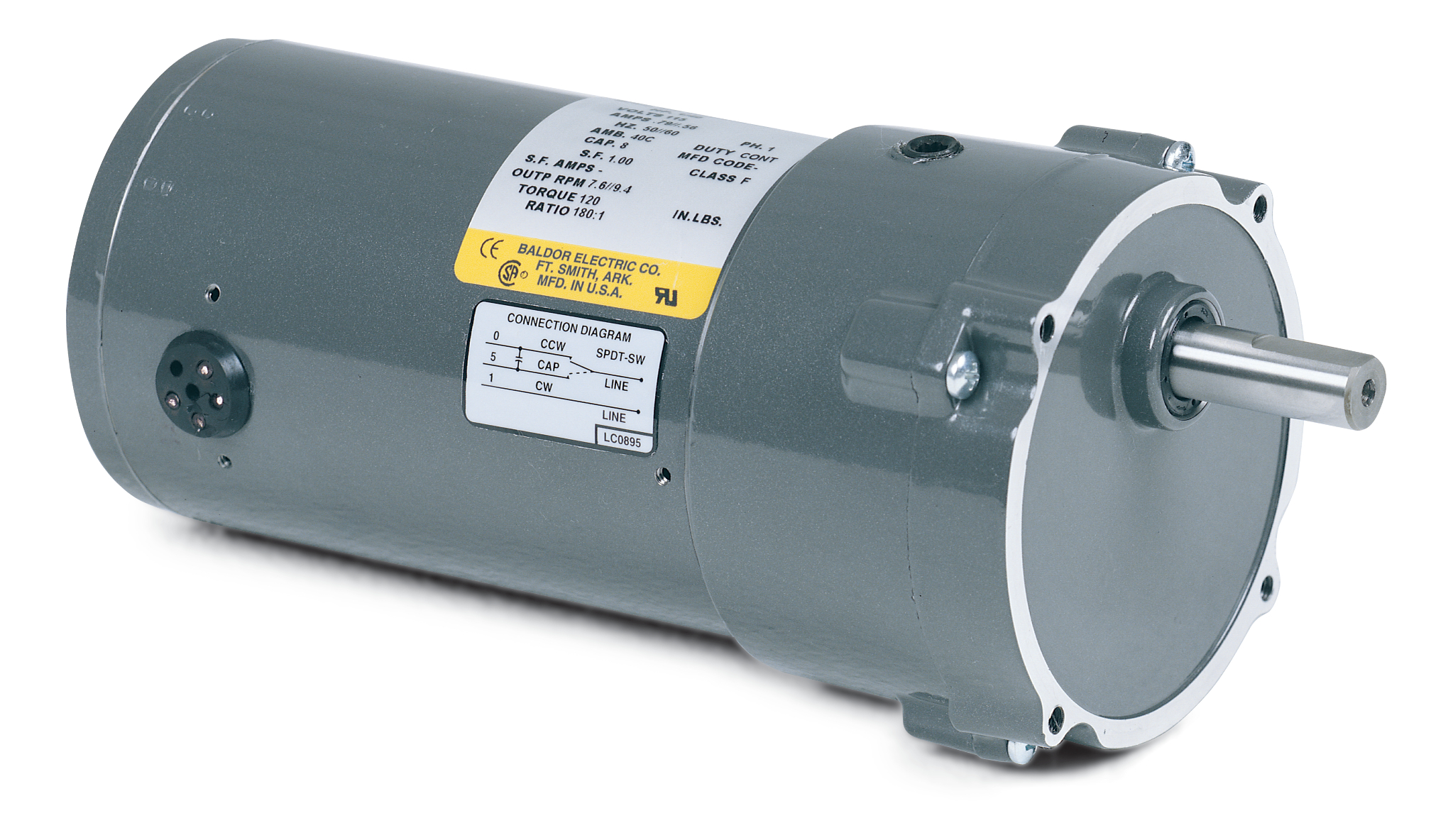

.08HP, 1340RPM, 1PH, 50/60HZ, PSSH-0, 2424C

Product Information Packet PDF

Ship Weight 10.000 LB
UPC 781568201534
Product has been discontinued

Specs

Catalog Number GCP24134
Enclosure TENV
TENV
Frame Material Steel
Steel
Frequency 50.00 Hz
60.00 Hz
50.00 Hz
60.00 Hz
Gear Ratio 30:1
Gear Style PSSH
Gearhead Type PARALLEL SHAFT
Motor Letter Type Oil Capacitor Start and Run
Number of Poles 4
4
Output Speed 45 rpm
55 rpm
Output Torque 83.70 lb-in
Phase 1
1
Speed 1340 rpm
1650 rpm
1340 rpm
1650 rpm
Synchronous Speed @ Frequency 1500 RPM @ 50 HZ
Voltage 115 V
Voltage @ Frequency 115.0 V @ 60 HZ
115.0 V @ 50 HZ
Agency Approvals CE
WEEE
UR
CSA
Ambient Temperature 40 °C
Capacitor Size 15
Connection Diagram CD1018
Current @ Voltage 1.000 A @ 115.0 V
.930 A @ 115.0 V
Dimensional Drawing Numbers 24E237W009G1
Duty Rating CONT
CONT
Feedback Signal NONE
Heater Indicator No Heater
Insulation Class F
F
Inverter Code Not Inverter
KVA Code -
-
Motor Lead Exit Lead Hole In Motor Band
Motor Lead Termination Flying Leads
Motor Lead Quantity/Wire Size 3 @ 18 AWG
Motor Type 2424C
Product Family General Purpose
RoHS Status ROHS COMPLIANT
Service Factor 1.00
Shaft Rotation Reversible
Starting Method Full Voltage
Thermal Device - Winding None
Winding Thermal 1 None
Winding Thermal 2 None

Drawings

{{getDrwKindName(drawing.kind)}}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Accessories

Part Number Description List Price
BKP2400 ONDUIT BOX KIT FOR 24 FRAME
LB73GR "L" BRACKET KIT FOR PSSH GEARBOX-GRAY
LB73 "L" BRACKET KIT FOR PSSH GEARBOX-BLACK
