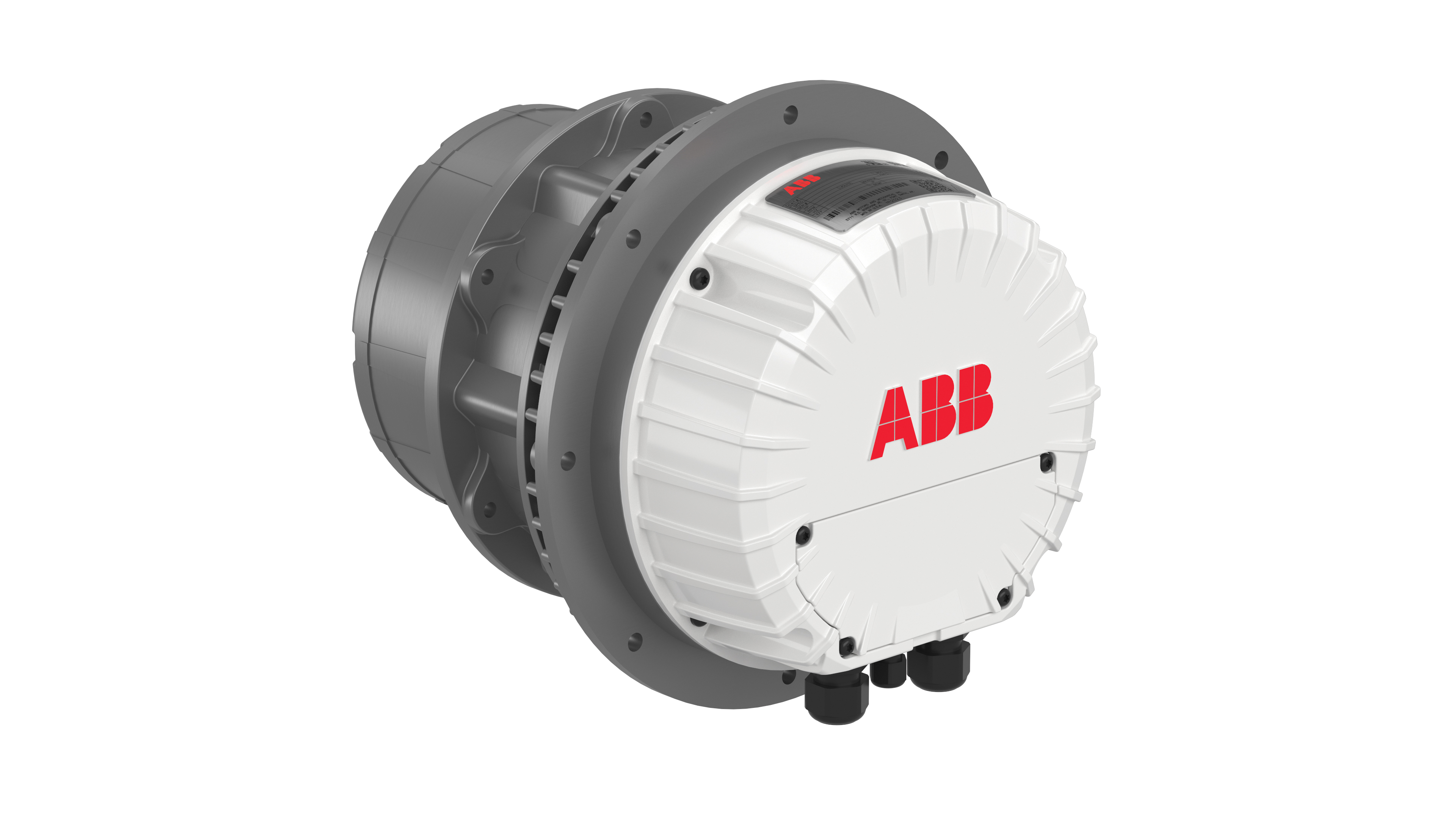

ERH110E4H5CE5

5HP, 2400PRM, 3PH, 50/60HZ, 178, TEAO, 460V
Ship Weight 33.400 LB
UPC 781568590157

Specs

Phase 3
Agency Approvals CE
Duty Rating CONT
Electrically Isolated Bearing Electrically Isolated Bearings
Enclosure TEAO
Frame Material Aluminum
Insulation Class F
Inverter Code INV_DUTY
IP Rating IP65
Lifting Lugs N
Motor Lead Termination LEADS_SPL
Mounting Arrangement SP
Overall Length 10.49 IN
Product Family Integrated Motor & Drive
Service Factor 1.00
Shaft Ground Indicator NONE
Speed Code MULTI_SPEED
Starting Method Inverter Power
Vibration Sensor Indicator NONE

Drawings

{{getDrwKindName(drawing.kind)}}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT # ERH110E4H5CE5 YEAR OF MANUFACTURE
SPEC ERH110E4H5CE5-001 CLASS F
CUST P/N IP 65 IC 418
SER # WT 15.150 KG
HP/KW 5/3.7 VOLTS 460
AMPS 7.1 EFF 86
R.P.M. (1/MIN) 2400 ENCL TEAO HZ 50/60
NP4557D02

Downloads

  • ERH PC Configuration Tool v20240119 beta
    This Windows tool allows the user to view variables, view and modify parameters and run a basic oscilloscope function for tuning and control (start, stop and speed reference setting) for commissioning purposes. It is also possible to change the command source to multiple settings, including analog 0-10Vdc, analog 10-0Vdc, fixed speed and serial link (i.e., MODBUS) control.
