EMVM11044C-PP

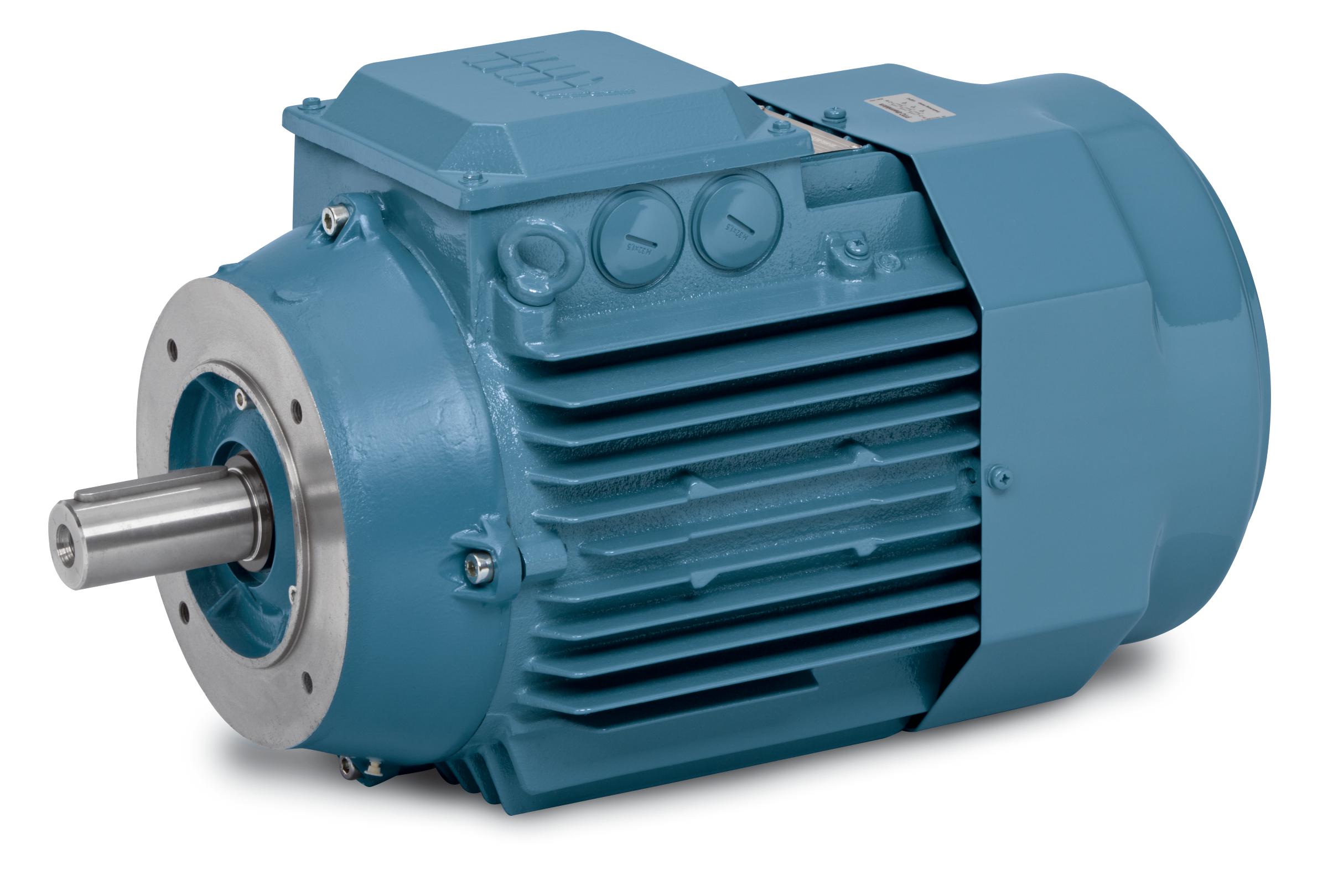

M3BP 112MG 4P B14 4KW
Ship Weight 115.000 LB
UPC 781568728529
Product has been discontinued

Specs

Catalog Number EMVM11044C-PP
Enclosure TEFC
Frame 112
Frequency 50.00 Hz
Output @ Frequency 4.00 KW @ 50 HZ
Phase 3
Synchronous Speed @ Frequency 1500 RPM @ 50 HZ
Voltage @ Frequency 230 V @ 50 HZ
380 V @ 50 HZ
400 V @ 50 HZ
Ambient Temperature 40 °C
Auxillary Box D-End Top
CE CE
Current @ Voltage 15.10 A @ 230 V
8.70 A @ 400 V
8.90 A @ 380 V
Duty Rating S1
High Voltage Full Load Amps 8.7 a
Insulation Class F
IP Rating IP55
PTC Thermistor Conn Diagram 3GZF321200-1D
Speed 1446 rpm
1454 rpm
Speed Code Single Speed
Motor Standards IEC
