EMM13556-PP

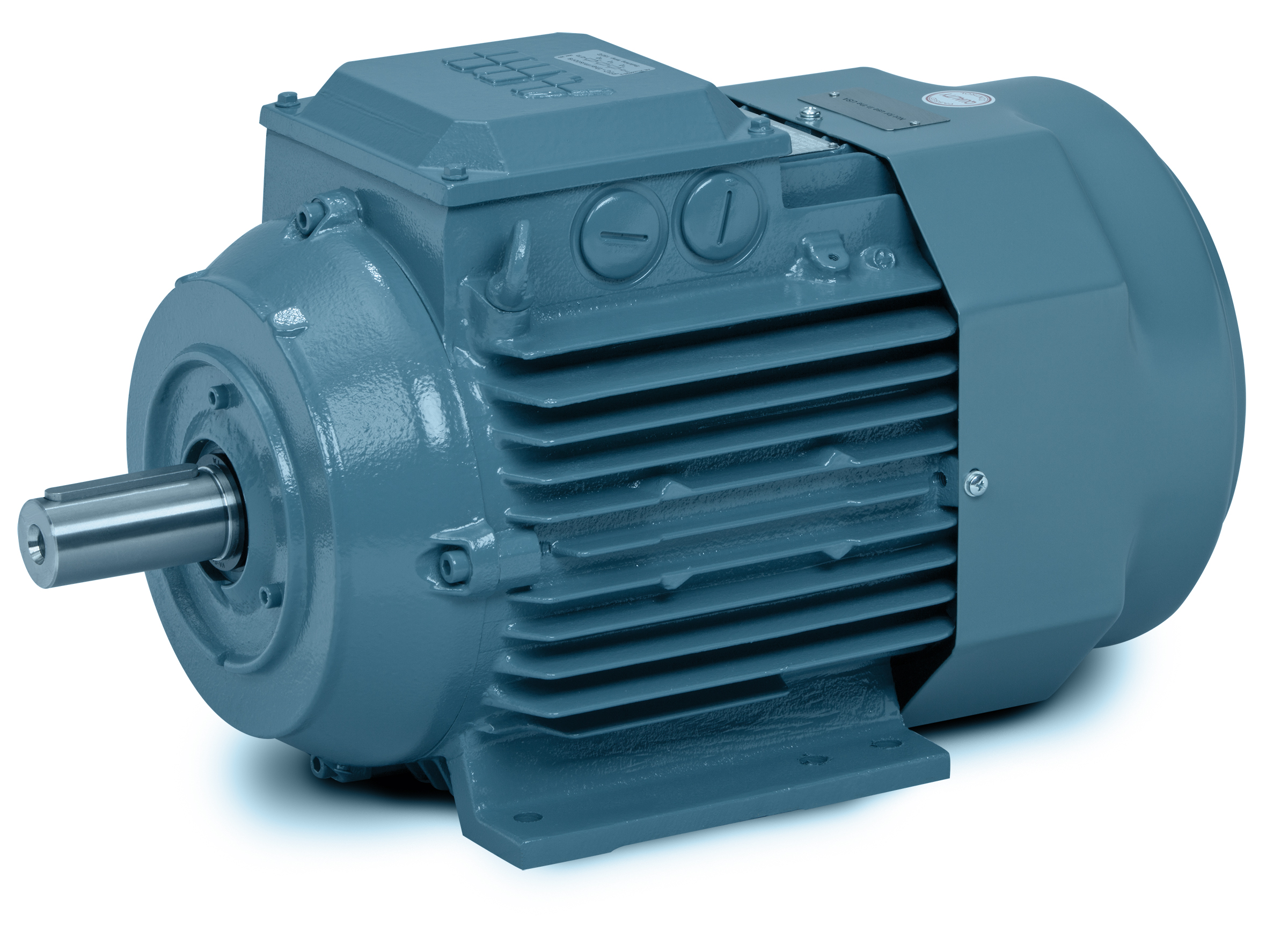

M3BP 132SMH 6P B3 5.5KW
Ship Weight 174.000 LB
UPC 781568755600
Product has been discontinued

Specs

Catalog Number EMM13556-PP
Enclosure TEFC
Frame 132
Frequency 50.00 Hz
Output @ Frequency 5.50 KW @ 50 HZ
Phase 3
Synchronous Speed @ Frequency 1000 RPM @ 50 HZ
Voltage @ Frequency 400 V @ 50 HZ
660 V @ 50 HZ
690 V @ 50 HZ
Ambient Temperature 40 °C
Auxillary Box D-End Top
CE CE
Current @ Voltage 12.10 A @ 400 V
7.00 A @ 690 V
7.20 A @ 660 V
Duty Rating S1
High Voltage Full Load Amps 7.0 a
Insulation Class F
IP Rating IP55
PTC Thermistor Conn Diagram 3GZF321200-1D
Speed 962 rpm
966 rpm
Speed Code Single Speed
Motor Standards IEC
