EM251254S-2340

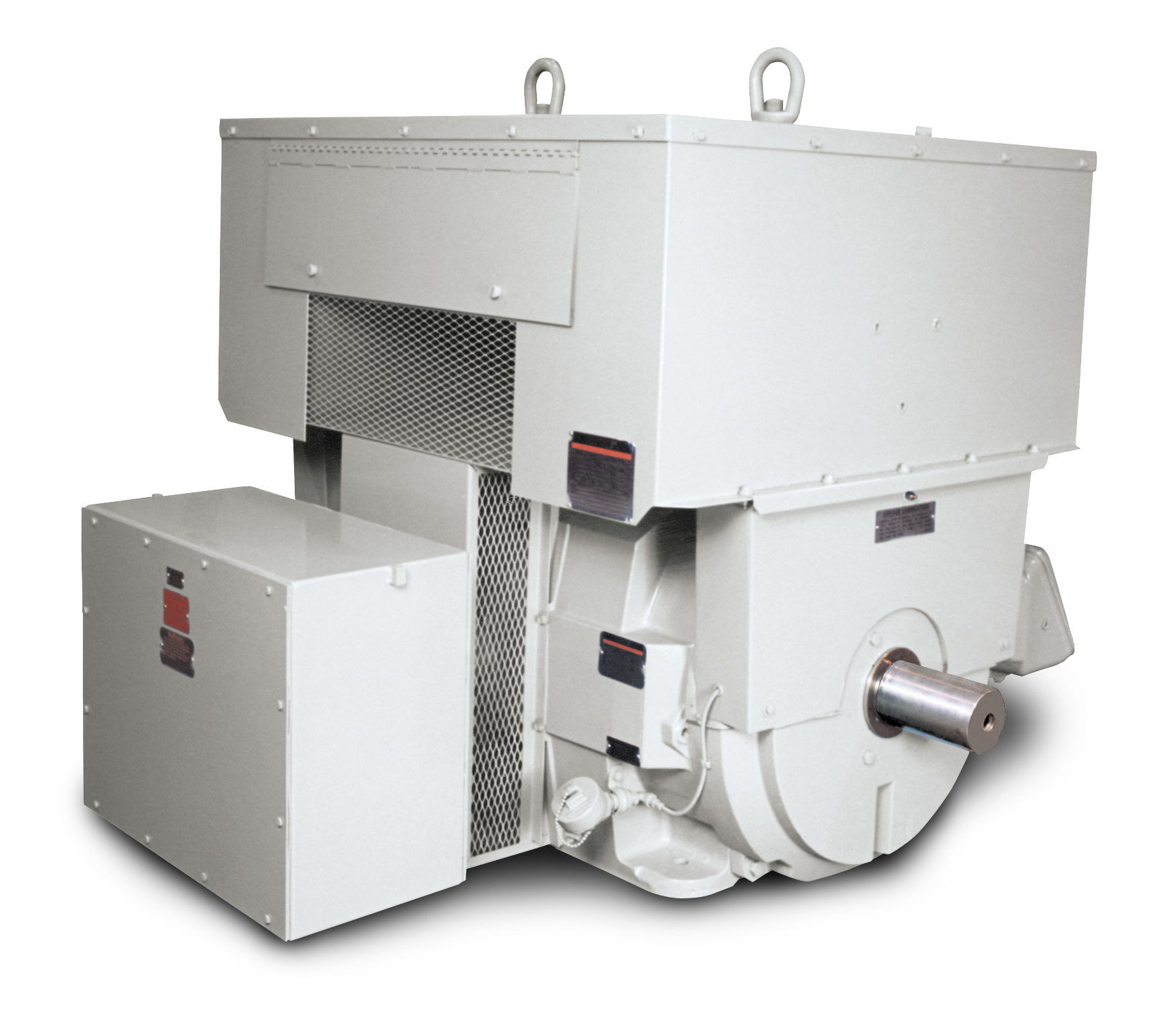

1250HP, 1800RPM, 3PH, O5810, WPII

Product Information Packet PDF

Ship Weight 7,081.000 LB
UPC 781568493212
Product has been discontinued

Specs

Catalog Number EM251254S-2340
Enclosure WPII
Frame 5810S
Frame Material Cast Iron
Frequency 60.00 Hz
Motor Letter Type Three Phase
Output @ Frequency 1250.000 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 2300.0 V @ 60 HZ
4000.0 V @ 60 HZ
Haz Area Class and Group CLI GP C,D
Haz Area Division Division II
Agency Approvals CCSA US
Ambient Temperature 40 °C
Auxiliary Box NO AUXILLARY BOX
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Current @ Voltage 164.000 A @ 4000.0 V
285.000 A @ 2300.0 V
Design Code -
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 95.4 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 164.0 a
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator Heater Included, 115 V
Insulation Class F
Inverter Code Not Inverter
KVA Code G
Lifting Lugs No Lifting Lugs
Motor Lead Termination Flying Leads
Motor Lead Quantity/Wire Size 6 @ 1/0 AWG
Motor Type A58176M
Mounting Arrangement F1
Number of Poles 4
Overall Length 63.99 IN
Product Family General Industrial
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Service Factor 1.15
Shaft Diameter 4.500 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1785 rpm
Speed Code Single Speed
Motor Standards NEMA
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding RTD Only
Vibration Sensor Indicator No Vibration Sensor
Haz Area Temp Code T3A

Drawings

{{getDrwKindName(drawing.kind)}}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

PREMIUM EFFICIENT SERIAL NO.
CATALOG NO. SPEC NO. KMO58-1254S-2340
HP 1250 RPM 1785 FRAME 5810S HZ 60 SERVICE FACTOR 1.15
VOLTS 2300/4000 F.L. AMPS 285/164 PHASE 3 TYPE P ENCL. WPII
F.L.EFF. 95.4 F.L.P.F. 86 MOTOR WEIGHT 6883 INSUL.CLASS F
DESIGN - NEMA CODE G MAX AMBIENT 40 DUTY CONT
C RISE/ AT HP AMPS
D.E. BRG. 120BC02J30X O.D.E. BRG. 120BC02J30X
WDG. THERMAL 100 OHM PLATINUM QTY. BRG. THERMAL
LUBE POLYREX EM
VOLTS 120/240 AMPS 2.0/3.9 WATTS 225/900 QTY 2
CERTIFICATE OF COMP NO. CC
000613007ES
FRAME ENERGY IDENTIFICATION NO.
5810S EFFICIENT KMO58-1254S-2340
HP 1250 TYPE P CLASS F
RPM 1785 AMB. 40
VOLT 2300/4000 S.F. 1.15
AMPS 285/164 DUTY 40C AMB-CONT
DES - CODE G PH 3 HZ 60 ENCL WPII
DRIVE END BEARING OPP DRIVE END BEARING
000613000YV
TCODE T3A TEMP 180 CL I DIV 2 GR C D X
CL.1,ZONE 2,GR IIAIIB CL II DIV 2 GR X X X
MOTOR I.D. NO.
000692000UJ
T. CODE T3A
CL I DIV 2 GR C D X CL II DIV 2 GR X X X
MOTOR I.D. NO.
000692000UY

Performance

Parts

Part Number Description Quantity
034017014AB LCKW 3/8 STD. PLATED 4.000 EA
034017014AB LCKW 3/8 STD. PLATED 4.000 EA
LT0002A08 TAG-SPACE HEATER 1.000 EA
