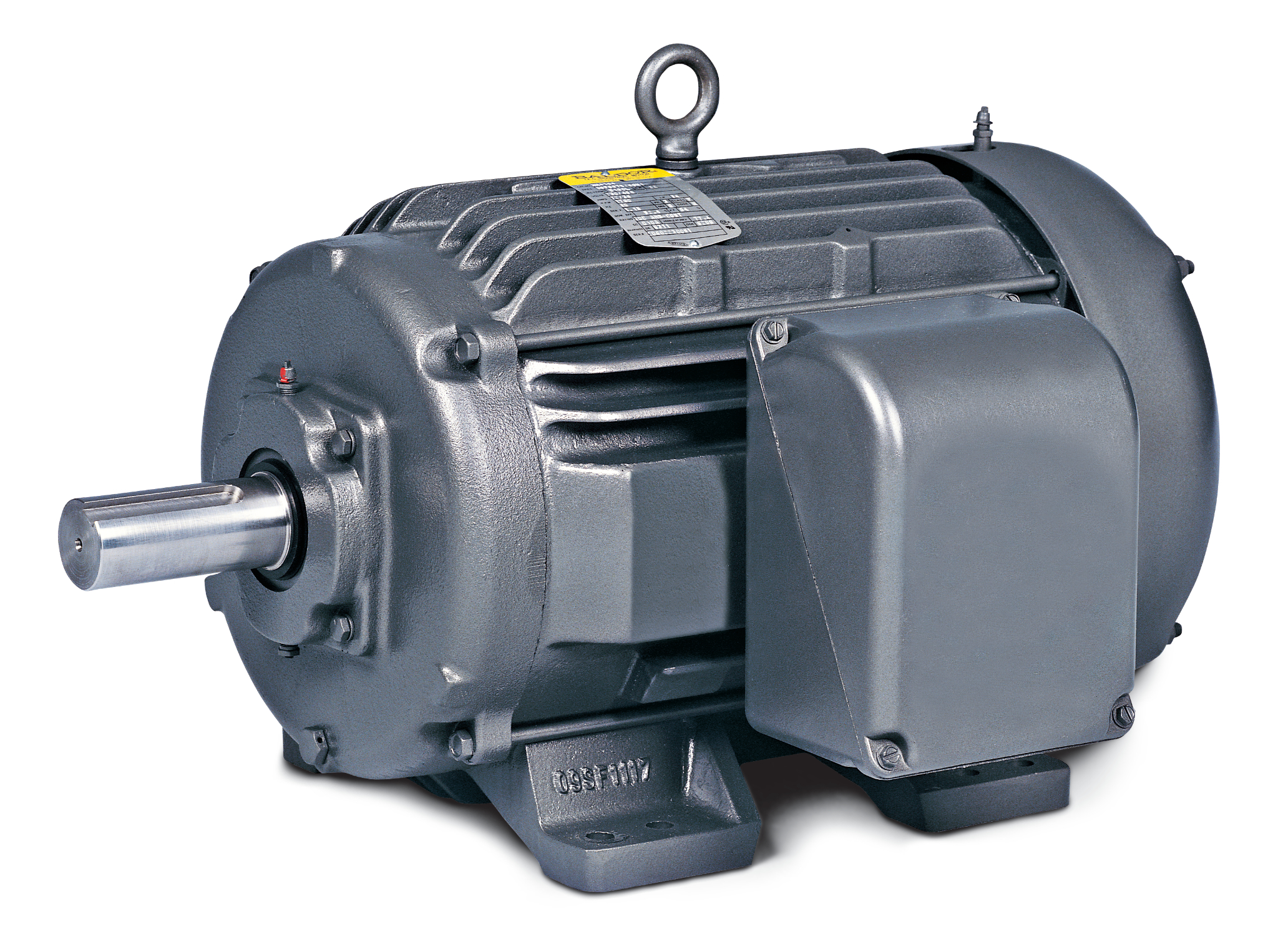

EM13084-58

7.5KW, 1460RPM, 3PH, 50HZ, 132M, 0750M, TEFC, B

Product Information Packet PDF

Ship Weight 91.000 LB
UPC 781568432891
Product has been discontinued

Specs

Catalog Number EM13084-58
Enclosure TEFC
Frame D132M
Frame Material Cast Iron
Frequency 50.00 Hz
Motor Letter Type Three Phase
Output @ Frequency 7.500 KW @ 50 HZ
Phase 3
Synchronous Speed @ Frequency 1500 RPM @ 50 HZ
Voltage @ Frequency 380.0 V @ 50 HZ
415.0 V @ 50 HZ
Haz Area Class and Group None
Haz Area Division Not Applicable
Agency Approvals CE
CSA
UR
WEEE
Ambient Temperature 40 °C
Auxiliary Box NO AUXILLARY BOX
Auxiliary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Current @ Voltage 14.600 A @ 380.0 V
14.300 A @ 415.0 V
Design Code N
Drip Cover No Drip Cover
Duty Rating S1
Efficiency @ 100% Load 90.4 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 14.3 a
Frame Prefix D
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No Heater
Insulation Class F
Inverter Code Inverter Ready
KVA Code J
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box W/Term Block
Motor Lead Termination Ring Terminals
Motor Lead Quantity/Wire Size 6 @ 14 AWG
Motor Type 0750M
Mounting Arrangement B3
Number of Poles 4
Overall Length 18.23 IN
Power Factor 83
Product Family General Purpose
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.00
Shaft Diameter 1.496 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1460 rpm
Speed Code Single Speed
Motor Standards IEC
Starting Method Wye Start - Delta Run
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None

Drawings

{{getDrwKindName(drawing.kind)}}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT NO
SPEC. 07J431X644G1
KW 7.5KW PH 3
VOLTS DELTA 380-415
AMP 14.6-14.3
R/MIN 1460 WEIGHT 41 KG
FRAME D132M HZ 50 I.P. 55
SER.F. 1.00 CODE J DES N CL F
IEC EFF 90.4 % (100%)
COS 83
RATING 40C AMB-S1 MTG B3
DE BRG 6208 ODE 6206
ENCL TEFC SN
BLANK IE3-91.8(75%)91.8(50%)
NP2157L

Performance

Performance at 415 V, 50 Hz, 7.5 kw

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 0.899 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load 69° C
Temp. Rise @ S.F. Load
Start Configuration DOL
Break-Down Torque 130 LB-FT
Pull-Up Torque 72.1 LB-FT
Locked-Rotor Torque 97.8 LB-FT
Starting Current 113 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 5.0 40.0 62.0 74.0 80.0 83.0 84.0 0.0
Efficiency 0.0 86.9 90.9 91.7 91.5 90.4 89.1 0.0
Speed (RPM) 1,499 1,493 1,486 1,478 1,471 1,462 1,453 0
Line Amps 6.85 7.48 9.14 11.50 14.30 17.30 20.70 0.00

Performance Curves

Parts

Part Number Description Quantity
09GS1013SP GS FOR 09CB3501, 12CB1500 & 12CB1503 LID 1.000 EA
LB1624 WARNING LABEL 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (2400 bx)4/22 1.000 EA
