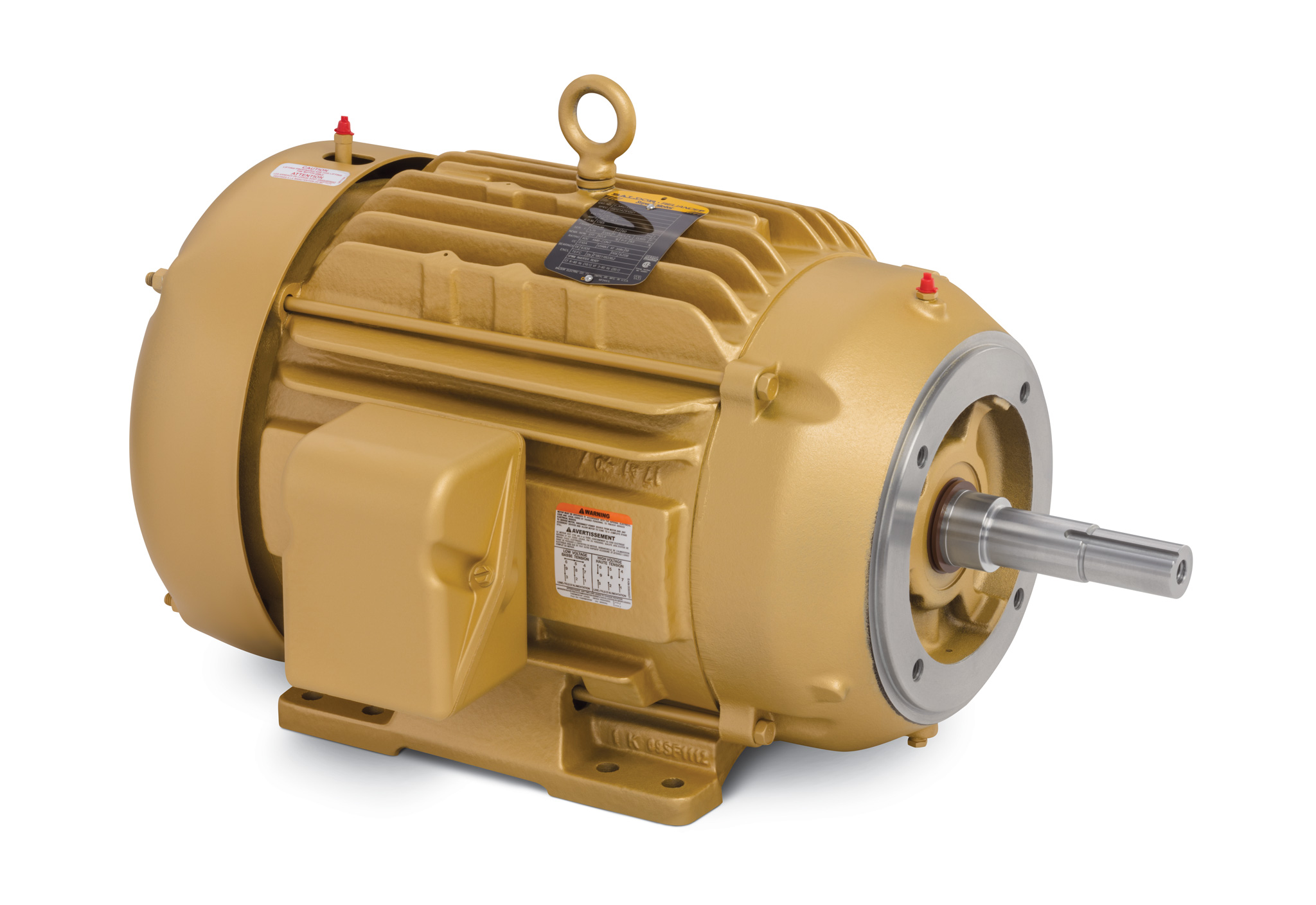

EJMM2394T-G

15HP, 3520RPM, 3PH, 60HZ, 254JM, 0930M, TEFC, F

Product Information Packet PDF

List Price 3,384.00 USD
Multiplier Symbol L1
Ship Weight 260 LB
UPC 781568664537

Specs

Output 15.000 hp
Phase 3
Synchronous Speed 3,600 rpm
Frequency 60.00 Hz
Voltage 230 V
460 V
Frame Material Iron
Frame 254JM
XP Class and Group NONE
XP Division Not Applicable
Brand Baldor-Reliance
Agency Approvals CSA
CSA EEV
UR
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type POLYREX EM (-20F +300F)
Blower None
Current 38.0 A @ 208 V
35.0 A @ 230 V
17.5 A @ 460 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.0%
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device No feedback
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No heater
High Voltage Full Load Amps 17.5 A
Insulation Class H
Inverter Code Inverter ready
KVA Code G
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit KO Box
Motor Lead Quantity/Wire Size 9 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Motor Type 0930M
Number of Poles 2
Overall Length 25.30 in
Power Factor 87
Product Family General Purpose
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.250 in
Shaft Extension Location Pulley End
Shaft Ground Indicator Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3,520 rpm
Speed Code Single Speed
Starting Method Direct on line
Thermal Device - Bearing NONE (OLD)
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None

Drawings

{{ getDrwKindName(drawing.kind) }}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.
Baldor is a Member of the Part Community by CADENAS

Nameplate

CAT.NO. EJMM2394T-G
SPEC. 09J657Z602G1
HP 15
VOLTS 230/460
AMP 35/17.5
RPM 3520
FRAME 254JM HZ 60 PH 3
SER.F. 1.15 CODE G DES B CL H
NEMA-NOM-EFF 91 PF 87
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 38
DE 6309 ODE 6208
ENCL TEFC SN
VPWM INVERTER READY
CT6-60H(10:1)VT3-60H(20:1
NP3441L

Performance

Performance at 460 V, 60 Hz, 15 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 0.68654 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load 63° C
Temp. Rise @ S.F. Load 78° C
Start Configuration DOL
Break-Down Torque 105 LB-FT
Pull-Up Torque 26.2 LB-FT
Locked-Rotor Torque 36.3 LB-FT
Starting Current 110 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 8.0 55.0 77.0 85.0 87.0 89.0 89.0 88.0
Efficiency 0.0 86.4 91.0 91.6 91.0 90.0 88.6 90.4
Speed (RPM) 3,599 3,583 3,564 3,543 3,521 3,496 3,468 3,506
Line Amps 5.58 6.93 9.78 13.50 17.50 21.60 26.40 20.00

Performance Curves

Parts

Part Number Description Quantity List Price
09CB3002SP CB W/1.38 LEAD HOLE FOR 37, 39, 307 & 30 1.000 EA 35.00 USD
09GS1000SP GASKET-CONDUIT BOX, 1/16 THICK LEXIDE 1.000 EA 6.00 USD
09FH4000SP FAN COVER, STAMPED 1.000 EA 199.00 USD
09CB3501SP CONDUIT BOX LID FOR 09CB3001 & 09CB3002 1.000 EA 29.00 USD
09GS1013SP 09 GS FOR 09CB3501 LID - LEXIDE 1.000 EA 5.00 USD
MN416A01 TAG-INSTAL-MAINT no wire (1100/bx) 11/14 1.000 EA 0.04 USD
