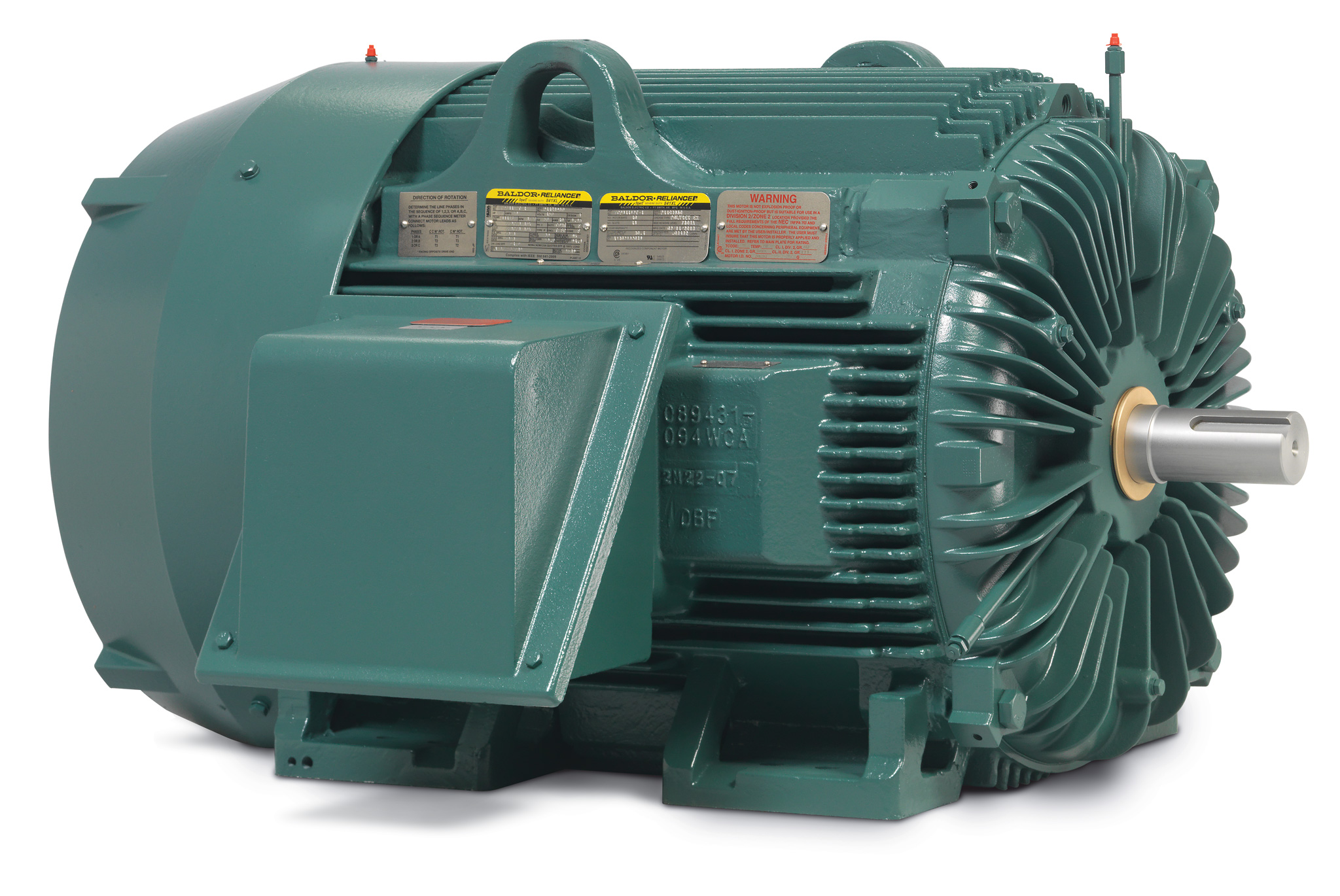

ECP844156TR-4

150HP, 1190RPM, 3PH, 60HZ, 447T, TEFC, FOOT,

Product Information Packet PDF

Ship Weight 2,537.000 LB
UPC 781568464373

Specs

Catalog Number ECP844156TR-4
Enclosure TEFC
Frame 447T
Frame Material Iron
Frequency 60.00 Hz
Output @ Frequency 150.000 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Voltage @ Frequency 460.0 V @ 60 HZ
XP Class and Group CLI GP A,B,C,D
XP Division Division II
Agency Approvals CCSA US
UR
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Mobil SHC 220 (Athens Only)
Constant Torque Speed Range 15-60
Current @ Voltage 170.000 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 95.8 %
Enclosure Modification 841
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 170.0 a
Heater Indicator No Heater
Insulation Class F
Inverter Code Inverter Ready
IP Rating IP56
KVA Code F
Lifting Lugs No Lifting Lugs
Motor Lead Quantity/Wire Size 3 @ 1/0 AWG
Motor Type A44120M
Mounting Arrangement F1
No Load Current 38.6 a
Number of Poles 6
Overall Length 48.46 IN
Power Factor 86
Pulley End Bearing Type Roller
Pulley Face Code C-Face
Service Factor 1.15
Shaft Diameter 3.375 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Phase Seq-Std Rot (CCWODE)
Shaft Slinger Indicator No Slinger
Speed 1190 rpm
Speed Code Single Speed
Motor Standards Other
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
XP Temp Code T3

Drawings

{{ getDrwKindName(drawing.kind) }}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT NO ECP844156TR-4 SPEC NO. A44-8391-1496
HP 150 AMPS 170 VOLTS 460 DESIGN B
FRAME SIZE 447T RPM 1190 HZ 60 AMB 40 SF 1.15
D.E. BRG.DATA NU222 O.D.E. BRG.DATA 6318 PH 3 DUTY CONT INSUL.CLASS F
D.E. BRG. 110RU02M30X TYPE P P ENCL TEFC CODE F
O.D.E. BRG. 90BC03J30X POWER FACTOR 86 NEMA-NOM-EFFICIENCY 95.8
3/4 LOAD EFF. 96.2 IP 56 MAX CORR KVAR 25.0 GUARANTEED EFFICIENCY 95
TEMP CODE T3 TEMP = 200
CHP HZ 60-90 CT HZ 15-60 VT HZ 0-60
INVERTER-TEMP-CODE T3
SER.NO. MOTOR WEIGHT
NP3237
CAT NO ECP844156TR-4 SPEC NO. A44-8391-1496
NO. ROTOR BARS 71 GREASE TYPE MOBIL SHC 220
NO. SLOTS 90 NL AMPS AT RATED VOLTAGE 38.6
5 YEAR WARRANTY WINDING RES @25 C .03239 OHMS
MFG. DATE SER.NO
000613007EX
MOBIL SHC -220 GREASE
NP2496L
