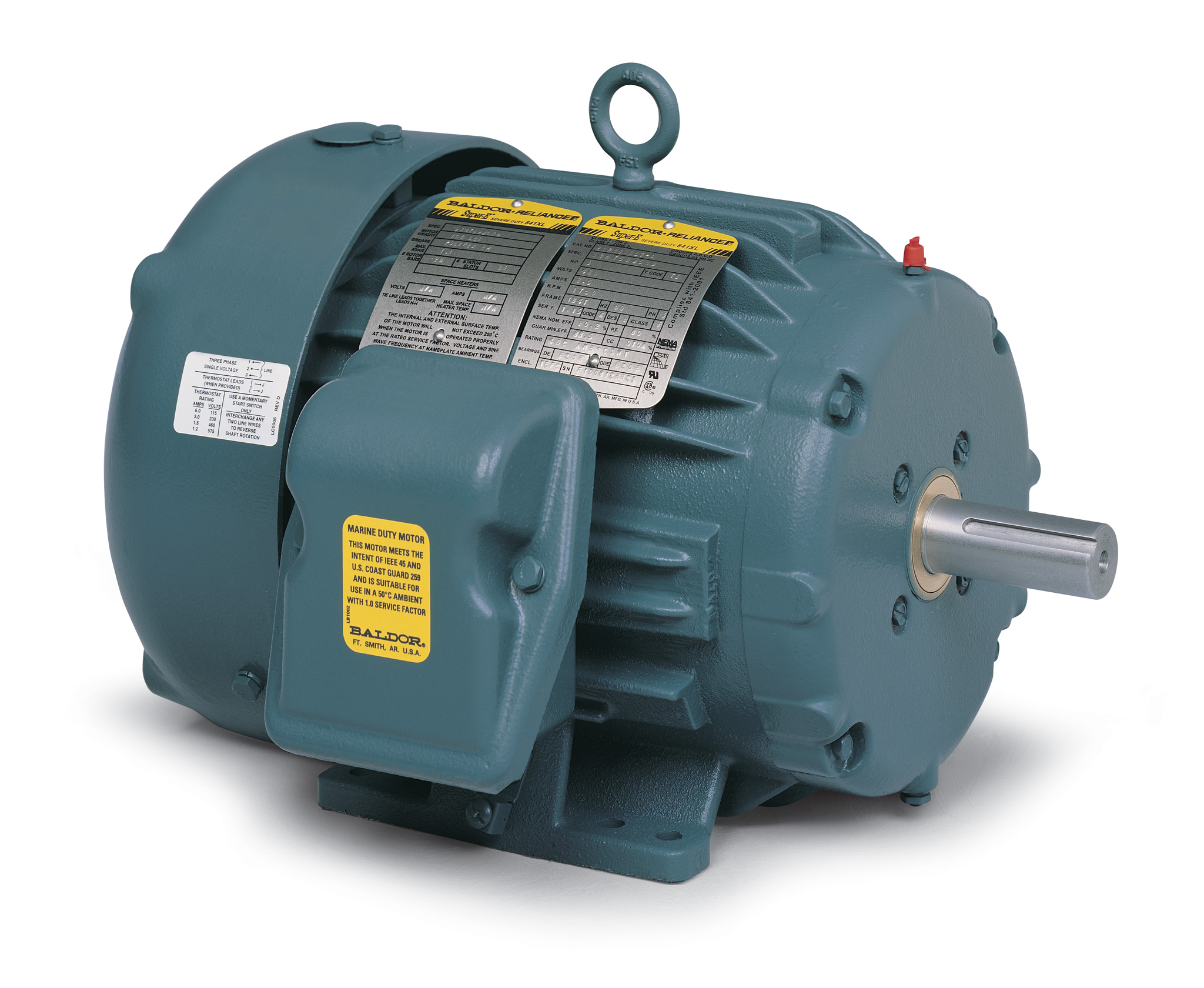

ECP83581T-5

1HP, 1765RPM, 3PH, 60HZ, 143T, 0524M, TEFC, F1

Product Information Packet PDF

Ship Weight 67.000 LB
UPC 781568621172

Specs

Catalog Number ECP83581T-5
Enclosure TEFC
Frame 143T
Frame Material Iron
Frequency 60.00 Hz
Output @ Frequency 1.000 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 575.0 V @ 60 HZ
XP Class and Group CLI GP A,B,C,D
XP Division Division II
Agency Approvals CSA
CSA EEV
UR
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Constant Torque Speed Range 1.2
Current @ Voltage 1.200 A @ 575.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 87.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure Modification 841
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 1.2 a
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No Heater
Insulation Class F
Inverter Code Inverter Duty
KVA Code N
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 2700 rpm
Motor Lead Exit Ko Box
Motor Lead Termination Flying Leads
Motor Lead Quantity/Wire Size 3 @ 18 AWG
Motor Type 0524M
Mounting Arrangement F1
Number of Poles 4
Overall Length 12.87 IN
Power Factor 70
Product Family Chem Process S/P 32-8 IEEE 841
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1765 rpm
Speed Code Single Speed
Motor Standards NEMA
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None
XP Temp Code T4

Drawings

{{ getDrwKindName(drawing.kind) }}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT.NO. ECP83581T-5
SPEC. 05E811X064G2
HP 1 TE IP 56
VOLTS 575
AMPS 1.2
R.P.M. 1765
FRAME 143T HZ 60 PH 3
SER.F. 1.15 CODE N DES. B CLASS F
RATING 40C AMB-CONT
SN
DE 6205 ODE 6205
NEMA NOM. EFF. 85.5 P.F. 70
GUAR. MIN. EFF. 82.5 CC 010A
T. CODE T4 TEMP= 135
NP3235E
SPEC. 05E811X064G2
ABMA DE BRG 25BC02X30X
ABMA ODE BRG 25BC02X30X
GREASE POLYREX EM
MOTOR WEIGHT 67 ROTOR BARS 28 STATOR BARS 36
MAX. R.P.M. 2700 MAX. KVAR .46
INV.TYPE PWM
T= 135
CHP 60 TO 90
CT 1.2 TO 60
VT 0- TO 60
HTR-VOLTS N/A HTR-AMPS N/A
HTR-WATTS MAX. SPACE HEATER TEMP. N/A
NP3186E

Parts

Part Number Description Quantity
51XW2520A12 SCREW, HEX SER SLT HD, ZN, 1/4-20 X .75 2.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (2100/bx) 4/22 1.000 EA
