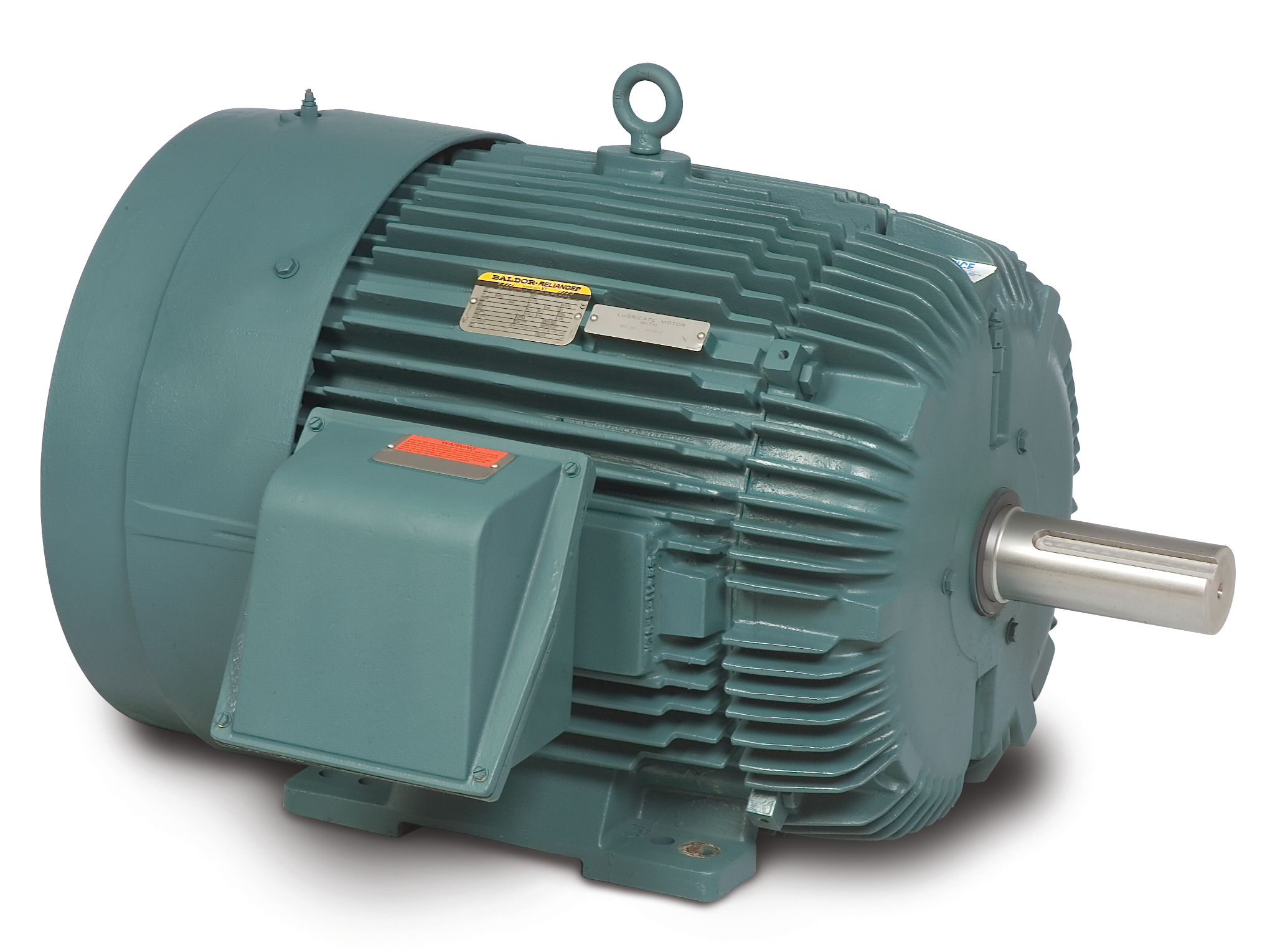

ECP4316TR-4

75HP, 1780RPM, 3PH, 60HZ, 365T, TEFC, F1

Product Information Packet PDF

Ship Weight 965.000 LB
UPC 781568726082

Specs

Catalog Number ECP4316TR-4
Enclosure TEFC
Frame 365T
Frame Material Iron
Frequency 60.00 Hz
Motor Letter Type Three Phase
Output @ Frequency 75.000 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 460.0 V @ 60 HZ
XP Class and Group CLI GP A,B,C,D
XP Division Division II
Agency Approvals CSA EEV
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Mobil SHC 220 (Athens Only)
Constant Torque Speed Range 30-60
Current @ Voltage 85.900 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 95.4 %
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 85.9 a
Heater Indicator No Heater
Insulation Class F
Inverter Code Inverter Ready
KVA Code G
Lifting Lugs Standard Lifting Lugs
Motor Lead Quantity/Wire Size 3 @ 4 AWG
Motor Type A36070M
Mounting Arrangement F1
Number of Poles 4
Overall Length 33.44 IN
Power Factor 86
Product Family General Industrial
Pulley End Bearing Type Roller
Pulley Face Code Standard
Service Factor 1.15
Shaft Diameter 2.374 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1780 rpm
Speed Code Single Speed
Motor Standards NEMA
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
XP Temp Code T3

Drawings

{{ getDrwKindName(drawing.kind) }}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

MOBIL SHC -220 GREASE
NP2496L
CAT NO ECP4316TR-4 SPEC NO. A36-5051-0082
HP 75 AMPS 85.9 VOLTS 460 DESIGN B
FRAME 365T RPM 1780 HZ 60 AMB 40 SF 1.15
D.E. BRG.DATA NU313 O.D.E. BRG.DATA 6313 PH 3 DUTY CONT INSUL.CLASS F
D.E. BRG. 65RU03M30X TYPE P ENCL TEFC CODE G
O.D.E. BRG. 65BC03J30X POWER FACTOR 86 NEMA NOM EFFICIENCY 95.4
3/4 LOAD EFF. 95.8 MAX CORR KVAR 16.0 GUARANTEED EFFICIENCY 94.5
TEMP CODE T3 TEMP = 200
CHP HZ 60-90 CT HZ 30-60 VT HZ 0-60
INVERTER-TEMP-CODE T3
SER.NO. MOTOR WEIGHT
NP3238
