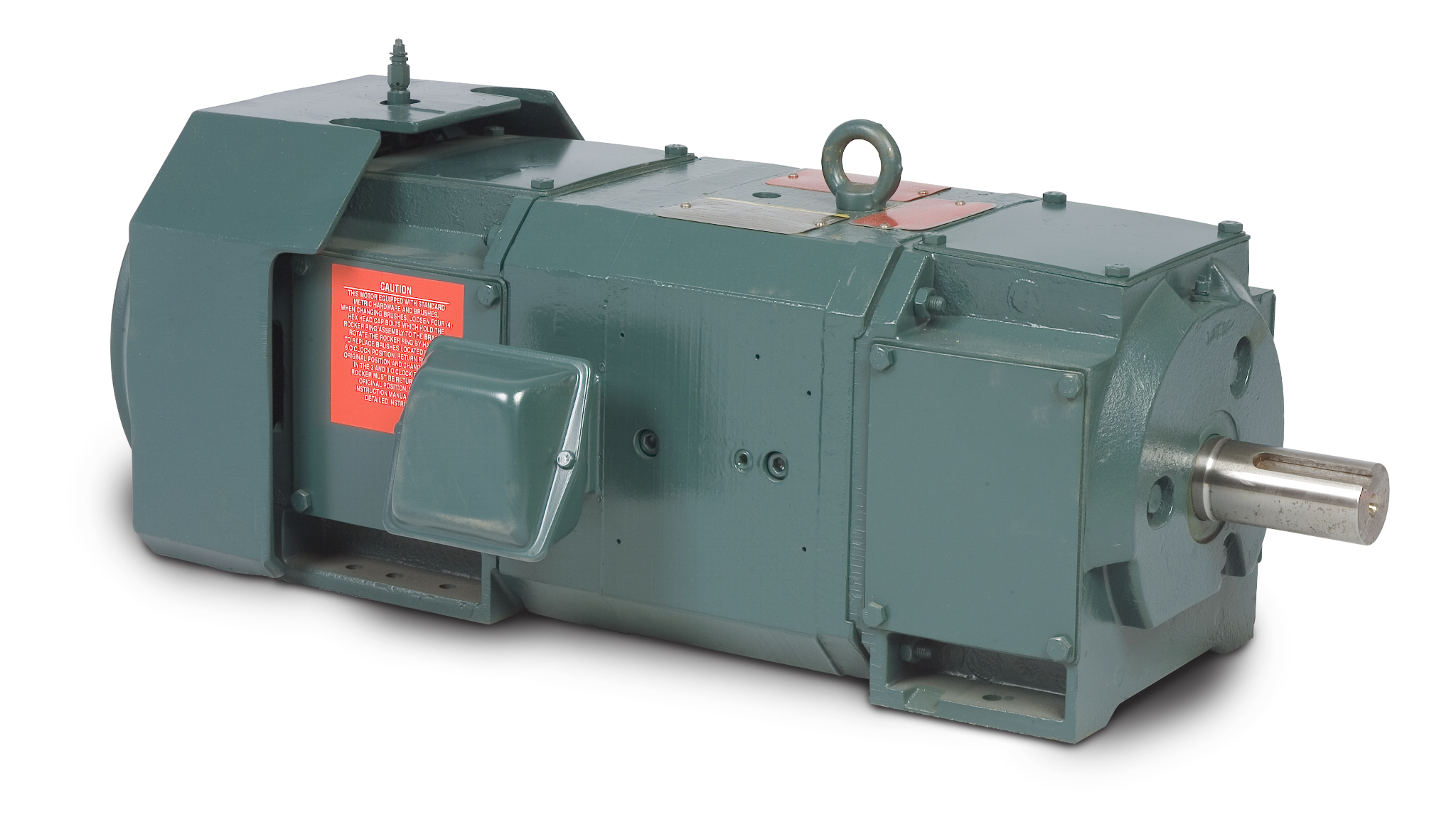

D5520R

20 1750/2300 LC2512ATZ TEFC 500V

Product Information Packet PDF

Ship Weight 640.000 LB
UPC 781568463376

Specs

Armature Voltage 500 V
Base Speed 1750 rpm
Enclosure TEFC
Field Voltage 300 V
Frame LC2512ATZ
Frame Material Laminated
Output Power 20.000 HP
Agency Approvals CCSA US
Ambient Temperature 40 °C
Armature Current 33.0 a
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Feedback Device CUST SUPPLIED
Field Winding Type STAB SHUNT
Frame Prefix LC
Heater Indicator No Heater
Insulation Class F
Lifting Lugs Standard Lifting Lugs
Mounting Arrangement F1
Overall Length 38.94 IN
Service Factor 1.00
Shaft Diameter 2.124 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Slinger Indicator No Slinger
Motor Standards NEMA
Thermal Device - Bearing None

Drawings

{{getDrwKindName(drawing.kind)}}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT.NO. D5520R SPEC NO. T25S0304
FR LC 2512ATZ HP 20 DUTY CONT
ENCL. TEFC RPM 1750/ 2300 S.F. 1.0
ENCL MOD VOLTS 500 INSUL F
MAX SAFE SPEED 4500 AMPS 33.00 AMB. 40
FIELD DATA SER.NO.
WINDING STAB SHUNT POWER CODE C
VOLTS 300 D.E. BRG. 60BC03J30X
MAX AMPS @ 25 C 2.06 O.D.E. BRG. 50BC02J30X
HOT AMPS 1.43/ .98 MIN. AMB. 0 TYPE TR
BRUSH:419904051AB; FLD. DATA
FOR HIGH VOLTS; F.V. 150/300
000613006HP

Performance

Parts

Part Number Description Quantity
419904051AB BRUSH EXTRUDER DUTY C 4.000 EA
706364051AA BRHLD ADD HARDWARE 4.000 EA
