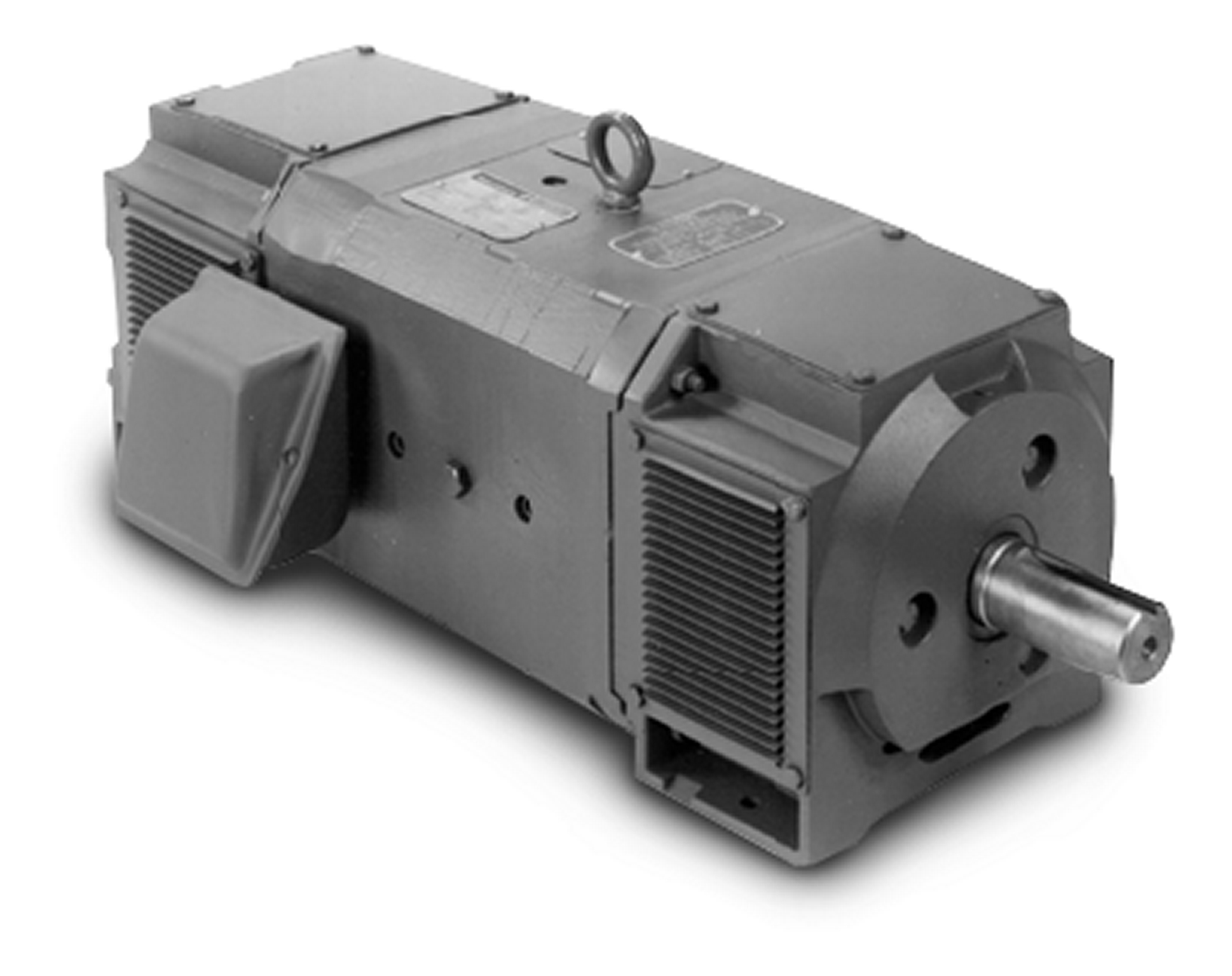

D5060R

60 1750 LC2812ATZ DPG

Product Information Packet PDF

Ship Weight 846.000 LB
UPC 781568463147

Specs

Armature Voltage 500 V
Base Speed 1750 rpm
Enclosure DP
Field Voltage 300 V
Frame LC2812ATZ
Frame Material Steel
Output Power 60.000 HP
Agency Approvals CCSA US
Ambient Temperature 40 °C
Armature Current 100.5 a
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Feedback Device NO FEEDBACK
Field Winding Type STAB SHUNT
Frame Prefix LC
Heater Indicator No Heater
Insulation Class F
Lifting Lugs Standard Lifting Lugs
Mounting Arrangement F2
Overall Length 39.62 IN
Service Factor 1.00
Shaft Diameter 2.374 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Slinger Indicator No Slinger
Motor Standards NEMA
Thermal Device - Bearing None

Drawings

{{ getDrwKindName(drawing.kind) }}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT.NO. D5060R SPEC NO. T28S1314
FR LC 2812ATZ HP 60 DUTY CONT
ENCL. DP RPM 1750/ 2100 S.F. 1.0
ENCL MOD GUARDED VOLTS 500 INSUL F
MAX SAFE SPEED 4500 AMPS 100.50 AMB. 40
FIELD DATA SER.NO.
WINDING STAB SHUNT POWER CODE C
VOLTS 300 D.E. BRG. 65BC03J30X
MAX AMPS @ 25 C 2.78 O.D.E. BRG. 55BC02J30X
HOT AMPS 1.90/ 1.48 MIN. AMB. 0 TYPE TR
BRUSH:419904051AD
000613006HP

Performance

Parts

Part Number Description Quantity
419904-51AD BRUSH C 8.000 EA
