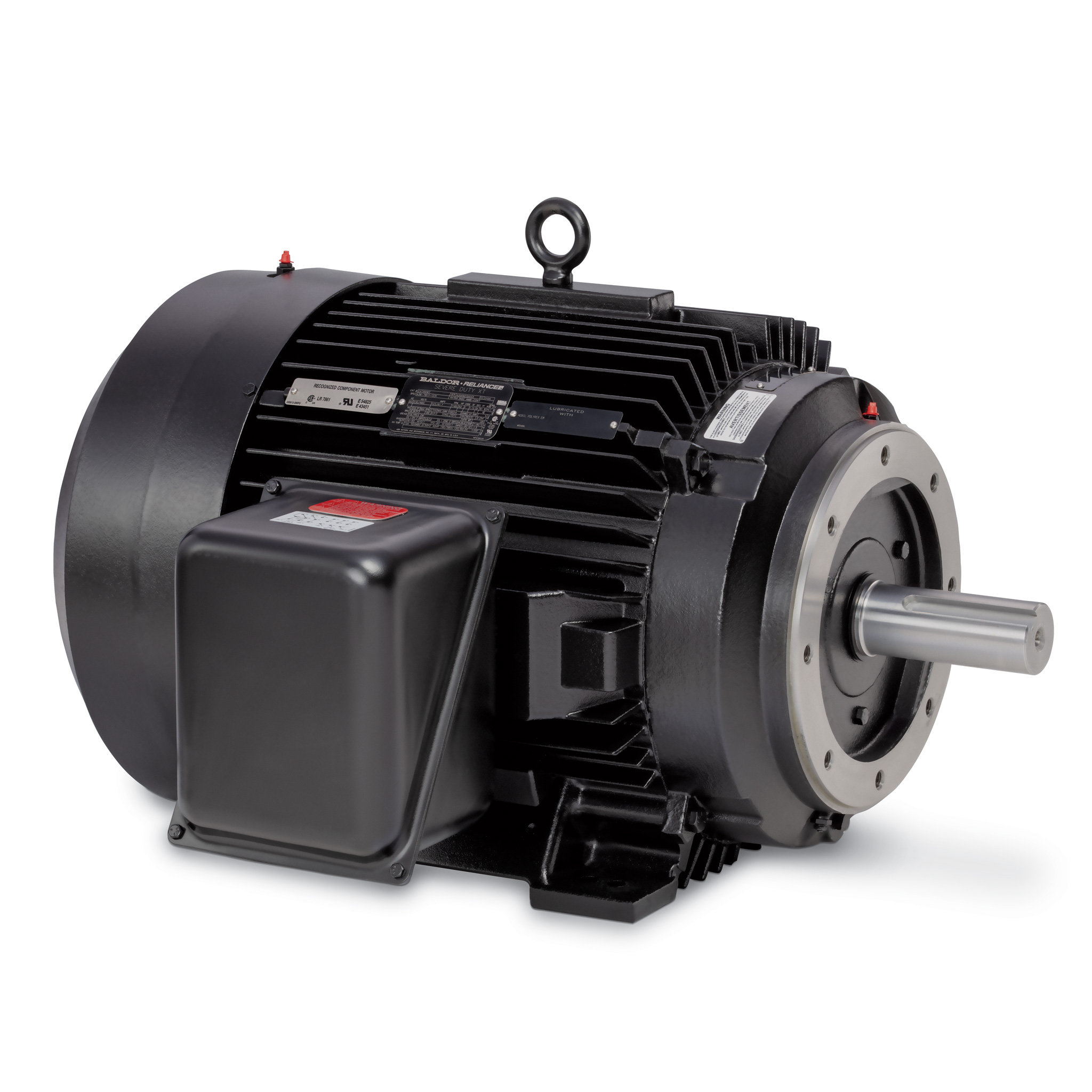

CXT3604T

60HP, 1780RPM, 3PH, 60HZ, 364TC, A3658M, TEFC

Product Information Packet PDF

Ship Weight 947.000 LB
UPC 781568964859

Specs

Catalog Number CXT3604T
Enclosure TEFC
Frame 364TC
Frame Material Iron
Frequency 60.00 Hz
Motor Letter Type Three Phase
Output @ Frequency 60.000 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 230.0 V @ 60 HZ
460.0 V @ 60 HZ
XP Class and Group None
XP Division Division II
Agency Approvals NEMA PREMIUM
UR
CSA EEV
CCSA US
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Current @ Voltage 140.000 A @ 230.0 V
152.000 A @ 208.0 V
70.000 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 95.0 %
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 70.0 a
Heater Indicator No Heater
Insulation Class F
Inverter Code Inverter Ready
IP Rating NONE
KVA Code G
Lifting Lugs Standard Lifting Lugs
Max Speed 3600 rpm
Motor Lead Quantity/Wire Size 3 @ 4 AWG
Motor Type A3658M
Mounting Arrangement F1
Number of Poles 4
Overall Length 33.48 IN
Power Factor 84
Product Family General Industrial
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Service Factor 1.15
Shaft Diameter 2.375 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1780 rpm
Speed Code Single Speed
Motor Standards NEMA
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None

Drawings

{{ getDrwKindName(drawing.kind) }}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT # CXT3604T SER CC 010A
SPEC A36-7842-4075 RATING 40C AMB-CONT
HZ VOLTS AMPS RPM HP CODE SF DES PF NEMA NOM. EFF
60 230/460 140/70 1780 60 G 1.15 B 84 % 95 %
% %
PH 3 CL F MAX RPM 2700 MAX CORR KVAR 15 USABLE AT 208V 152 A
BRG DE 6313 ODE 6313 ENCL TEFC FR 364TC IP 54
GREASE POLYREX EM MTR WT LBS
CL I DIV 2 GRPS A,B,C,D CL I ZONE 2 GRPS IIA,IIB,IIC TEMP T 200 C
INV READY CT 10-60 HZ 6:1 VT 0-60 HZ 1000:1 CHP 60-90 HZ 1:1.5
INV TEMP CL T3 C USABLE AT 50HZ 50HP 190/380V 138/69A 1.0SF
NP4152LUA

Performance

Parts

Part Number Description Quantity
412118006A DRAIN 1.000 EA
