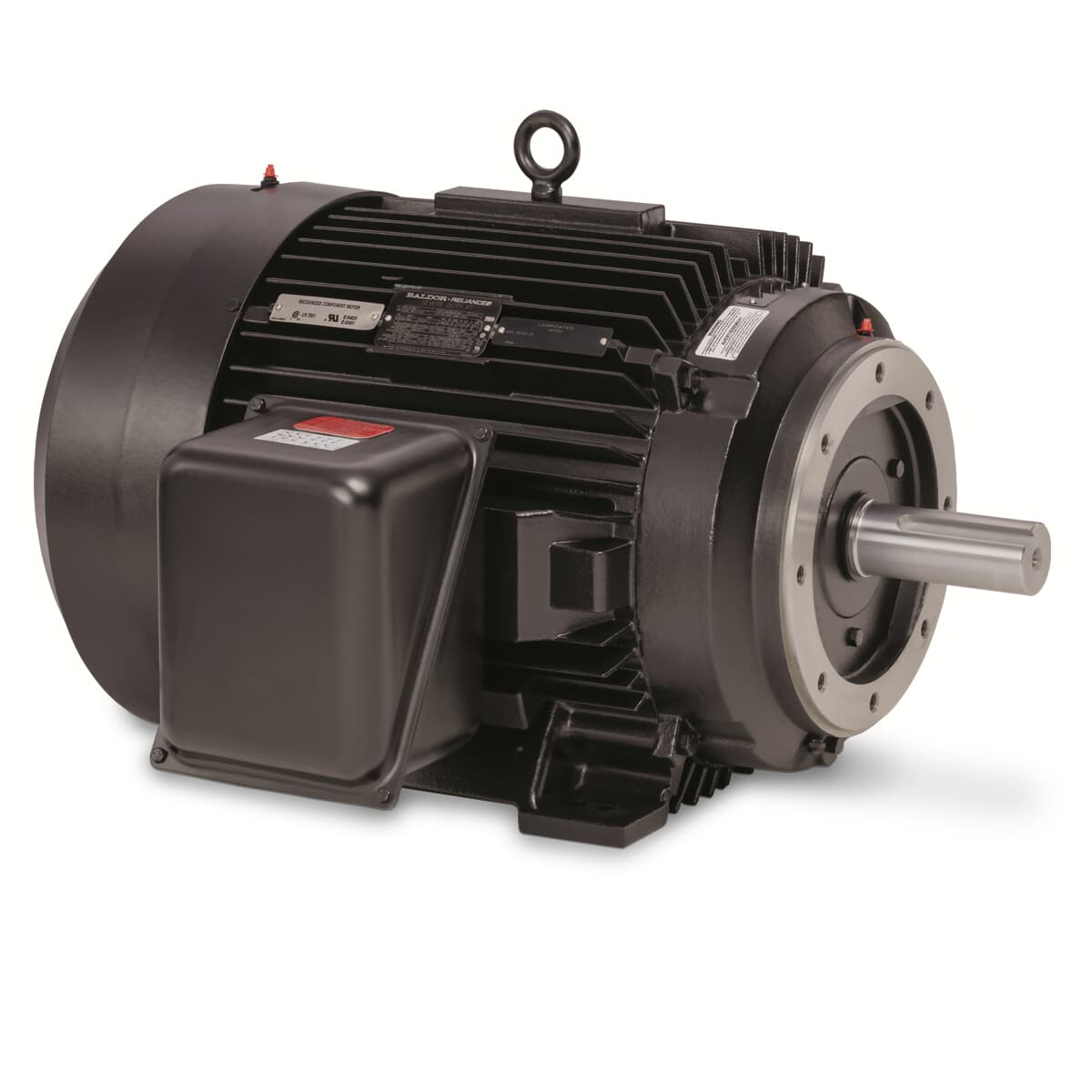

CXT3506T-5

50HP, 1185RPM, 3PH, 60HZ, 365TC, A3668M, TEFC

Product Information Packet PDF

Ship Weight 996.000 LB
UPC 781568983683

Specs

Catalog Number CXT3506T-5
Enclosure TEFC
Frame 365TC
Frame Material Iron
Frequency 60.00 Hz
Motor Letter Type Three Phase
Output @ Frequency 50.000 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Voltage @ Frequency 575.0 V @ 60 HZ
XP Class and Group None
XP Division Division II
Agency Approvals UR
NEMA_PREMIUM
NEMA PREMIUM
CCSAUSEEV
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Current @ Voltage 49.100 A @ 575.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 94.1 %
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 49.1 a
Heater Indicator No Heater
Insulation Class F
Inverter Code Inverter Ready
IP Rating NONE
KVA Code G
Lifting Lugs Standard Lifting Lugs
Max Speed 1800 rpm
Motor Lead Quantity/Wire Size 3 @ 6 AWG
Motor Type A3668M
Mounting Arrangement F1
Number of Poles 6
Overall Length 33.48 IN
Power Factor 81
Product Family General Industrial
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Service Factor 1.00
Shaft Diameter 2.374 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1185 rpm
Speed Code Single Speed
Motor Standards NEMA
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None

Drawings

{{getDrwKindName(drawing.kind)}}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT # CXT3506T-5 SER CC 010A
SPEC A36-0002-4022 RATING 40C AMB-CONT
HZ VOLTS AMPS RPM HP CODE SF DES PF NEMA NOM. EFF
60 575 49.1 1185 50 G 1.15 B 81 % 94.1 %
% %
PH 3 CL F MAX RPM 1800 MAX CORR KVAR 15 USABLE AT 208V N/A A
BRG DE 6313 ODE 6313 ENCL TEFC FR 365TC IP 54
GREASE POLYREX EM MTR WT 996 LBS
CL I DIV 2 GRPS A,B,C,D CL I ZONE 2 GRPS IIA,IIB,IIC TEMP T 180 C
INV READY CT 10:1 HZ 6-60 VT 1000:1 HZ 0-60 CHP 1:1.5 HZ 60-90
INV TEMP CL T3A C USABLE AT
NP4152LUA

Performance

Parts

Part Number Description Quantity
412118006A DRAIN 1.000 EA
078550001M FAN KB 60/30 (30) 360 1.000 EA
412118006A DRAIN 1.000 EA
