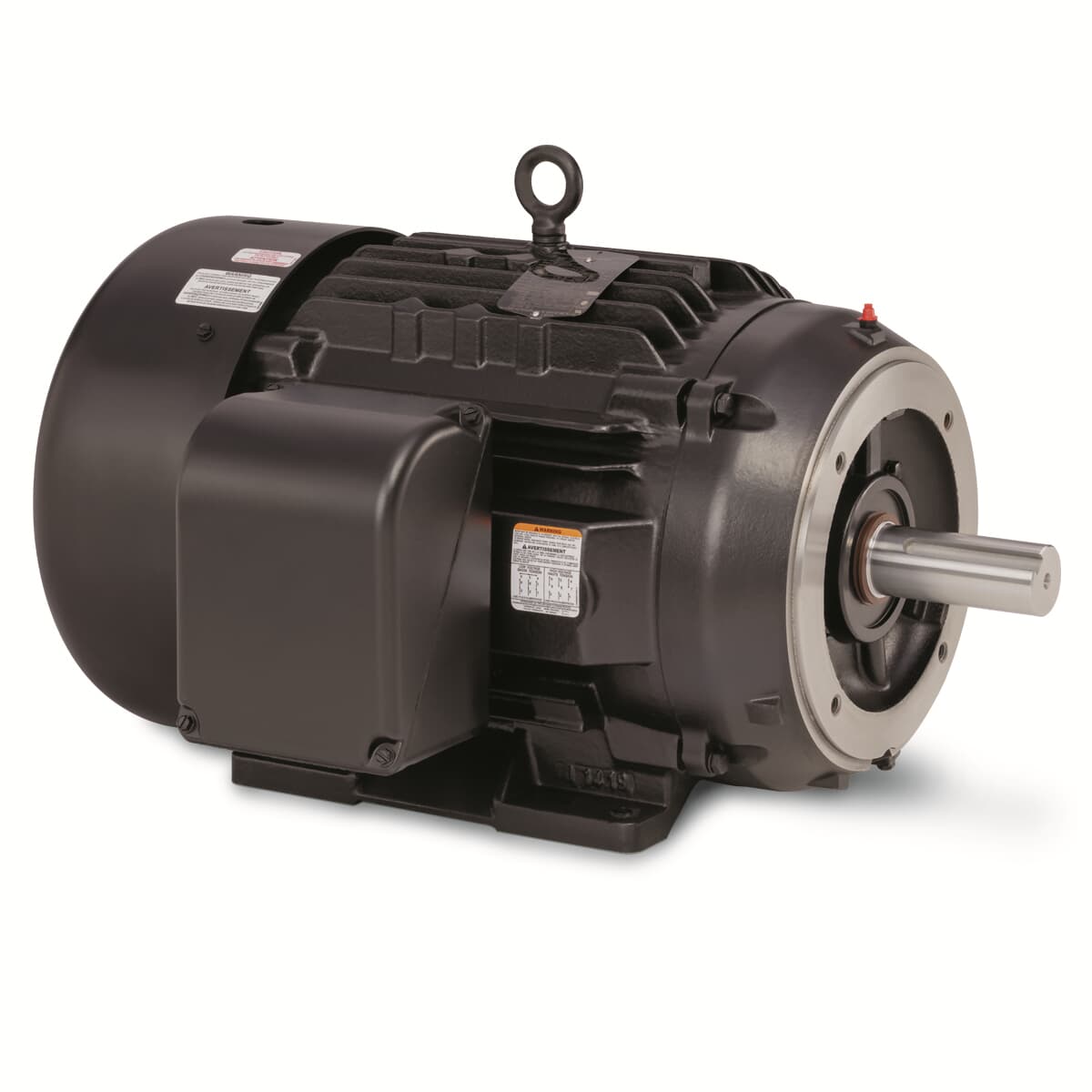

CXT3254T

25HP, 1770RPM, 3PH, 60HZ, 284TC, 1056M, TEFC, F

Product Information Packet PDF

Ship Weight 437.001 LB
UPC 781568959473
Product has been discontinued

Specs

Catalog Number CXT3254T
Enclosure TEFC
Frame 284TC
Frame Material Cast Iron
Frequency 60.00 Hz
Motor Letter Type Three Phase
Output @ Frequency 25.000 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 230.0 V @ 60 HZ
460.0 V @ 60 HZ
Haz Area Class and Group CLI GP A,B,C,D
Haz Area Division Division II
Agency Approvals CCSAUSEEV
CURUSEEV
NEMA_PREMIUM
UR
CCSA US
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Constant Torque Speed Range 1
Current @ Voltage 60.000 A @ 230.0 V
64.000 A @ 208.0 V
30.000 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.6 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 30.0 a
Heater Indicator No Heater
Insulation Class F
Inverter Code Inverter Duty
IP Rating NONE
KVA Code F
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Termination Flying Leads
Motor Type 1056M
Mounting Arrangement F1
Number of Poles 4
Overall Length 27.76 IN
Power Factor 85
Product Family General Purpose
Pulley Face Code C-Face
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.875 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Speed 1770 rpm
Speed Code Single Speed
Motor Standards NEMA
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None
Haz Area Temp Code T3A

Drawings

Dimension Sheet

Connection Diagram

Literature

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT.NO. CXT3254T I.P. 54
SPEC. 10-0001435 ENCL TEFC
FRAME 284TC H.P. 25
VOLTS 230/460 P.F. 85
F.L. AMPS 60/30 RATING 40C AMB-CONT
R.P.M. 1770
HZ. 60 PH. 3 CLASS F
SER.F. 1.15 DES. B SL HZ 1
NEMA NOM. EFF. 93.6 WK2 4.46
DE 6311 ODE 6309
MAG. CUR. 20.8/10.4
INV TYPE PWM CHP 60 TO 90 T. CODE T3A
CT 1 TO 60 VT O TO 60
CC 010A SN
USABLE AT 50HZ 20HP 190/380V
58/29A SF1.0
NP4163L

Performance

Performance at 460 V, 60 Hz, 25 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 0.29877 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load 54° C
Temp. Rise @ S.F. Load
Start Configuration DOL
Break-Down Torque 197 LB-FT
Pull-Up Torque 91.4 LB-FT
Locked-Rotor Torque 115 LB-FT
Starting Current 173 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 5.0 51.0 73.0 81.0 85.0 86.0 86.0 0.0
Efficiency 0.0 91.0 93.8 94.1 93.7 92.9 91.8 0.0
Speed (RPM) 1,799 1,793 1,786 1,779 1,771 1,762 1,752 0
Line Amps 10.40 12.50 17.00 22.90 29.50 36.50 44.70 0.00

Performance Curves

Parts

Part Number Description Quantity
MN416A01 TAG-INSTAL-MAINT no wire (2400 bx)4/22 1.000 EA
HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA
10CB3000SP KOBX, CAST W/2.00 LEAD HOLE 1.000 EA
HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA
10CB3500SP CONDUIT BOX LID, CAST 1.000 EA
10GS1000SP GASKET, CONDUIT BOX LID 1.000 EA
51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 4.000 EA
LB1624 COMBINED WARNING LABEL, ISO/ANSI PICTOGR 1.000 EA
