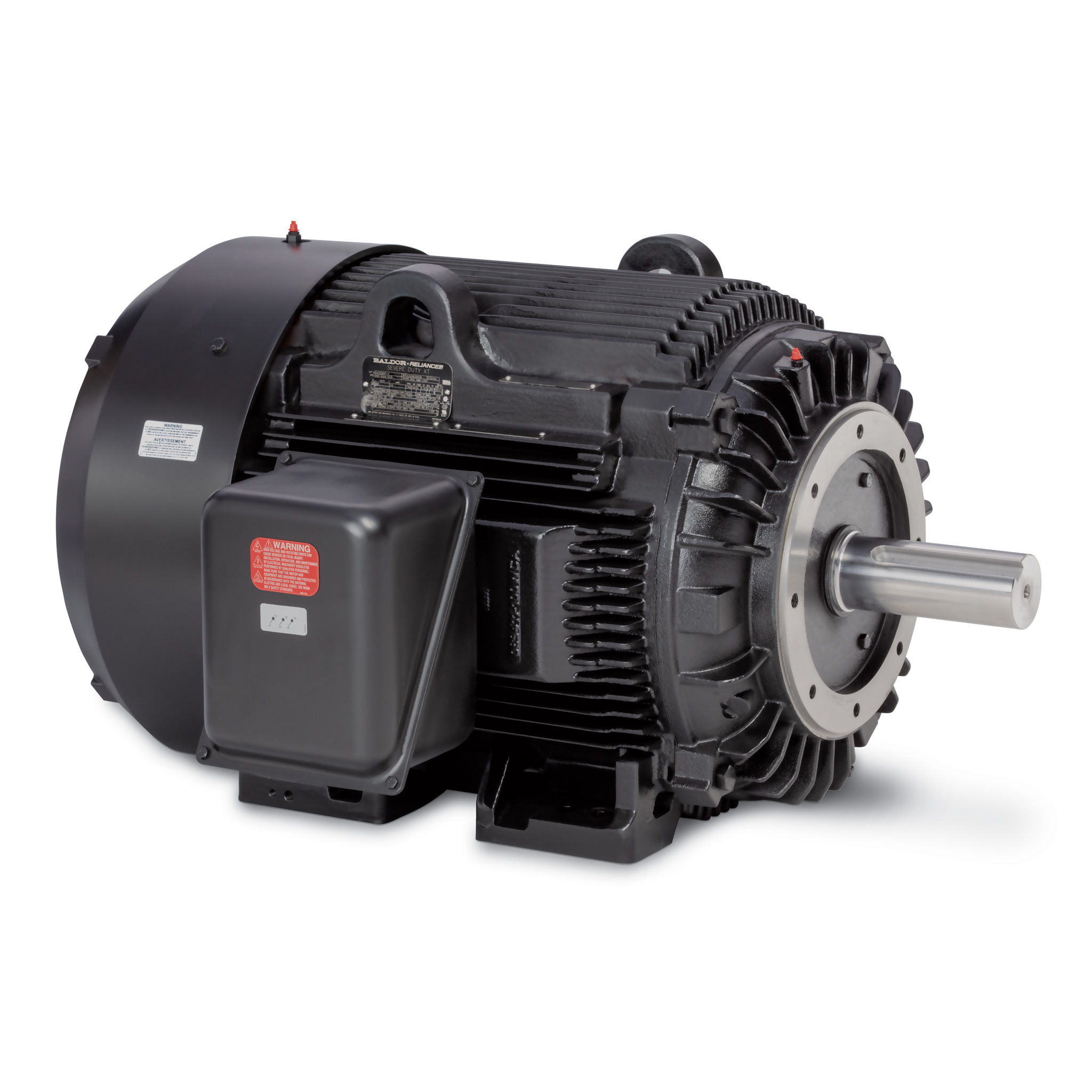

CXT31002TS

100HP, 3560RPM, 3PH, 60HZ, 405TSC, A40060M, TE

Product Information Packet PDF

Ship Weight 1,260.000 LB
UPC 781568966877

Specs

Catalog Number CXT31002TS
Enclosure TEFC
Frame 405TSC
Frame Material Iron
Frequency 60.00 Hz
Motor Letter Type Three Phase
Output @ Frequency 100.000 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Voltage @ Frequency 230.0 V @ 60 HZ
460.0 V @ 60 HZ
XP Class and Group CLI GP A,B,C,D
XP Division Division II
Agency Approvals NEMA PREMIUM
UR
CSA EEV
CCSA US
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Current @ Voltage 110.000 A @ 460.0 V
220.000 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 94.1 %
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 110.0 a
Heater Indicator No Heater
Insulation Class F
Inverter Code Inverter Ready
IP Rating NONE
KVA Code F
Max Speed 4500 rpm
Motor Lead Quantity/Wire Size 3 @ 2 AWG
Motor Type A40060M
Mounting Arrangement F1
Number of Poles 2
Overall Length 35.20 IN
Power Factor 90
Product Family General Industrial
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Service Factor 1.15
Shaft Diameter 2.125 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3560 rpm
Speed Code Single Speed
Motor Standards NEMA
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None

Drawings

{{getDrwKindName(drawing.kind)}}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT # CXT31002TS SER CC 010A
SPEC A40-7212-1107 RATING 40C AMB-CONT
HZ VOLTS AMPS RPM HP CODE SF DES PF NEMA NOM. EFF
60 230/460 220/110 3560 100 F 1.15 B 90 % 94.1 %
% %
PH 3 CL F MAX RPM 4500 MAX CORR KVAR 10 USABLE AT 208V N/A A
BRG DE 6313 ODE 6313 ENCL TEFC FR 405TSC IP 54
GREASE POLYREX EM MTR WT 1260 LBS
CL I DIV 2 GRPS A,B,C,D CL I ZONE 2 GRPS IIA,IIB,IIC TEMP T 200 C
INV READY CT 10:1 HZ 6-60 VT 0-60 HZ 1000:1 CHP 60-75 HZ 1:1.25
INV TEMP CL T3 C USABLE AT 50HZ 75HP 190/380V 202/101A 1.0SF
SFA 254/127
NP4152LUA

Performance

Parts

Part Number Description Quantity
412118006A DRAIN 2.000 EA
702675001D FAN 250-440 1.000 EA
