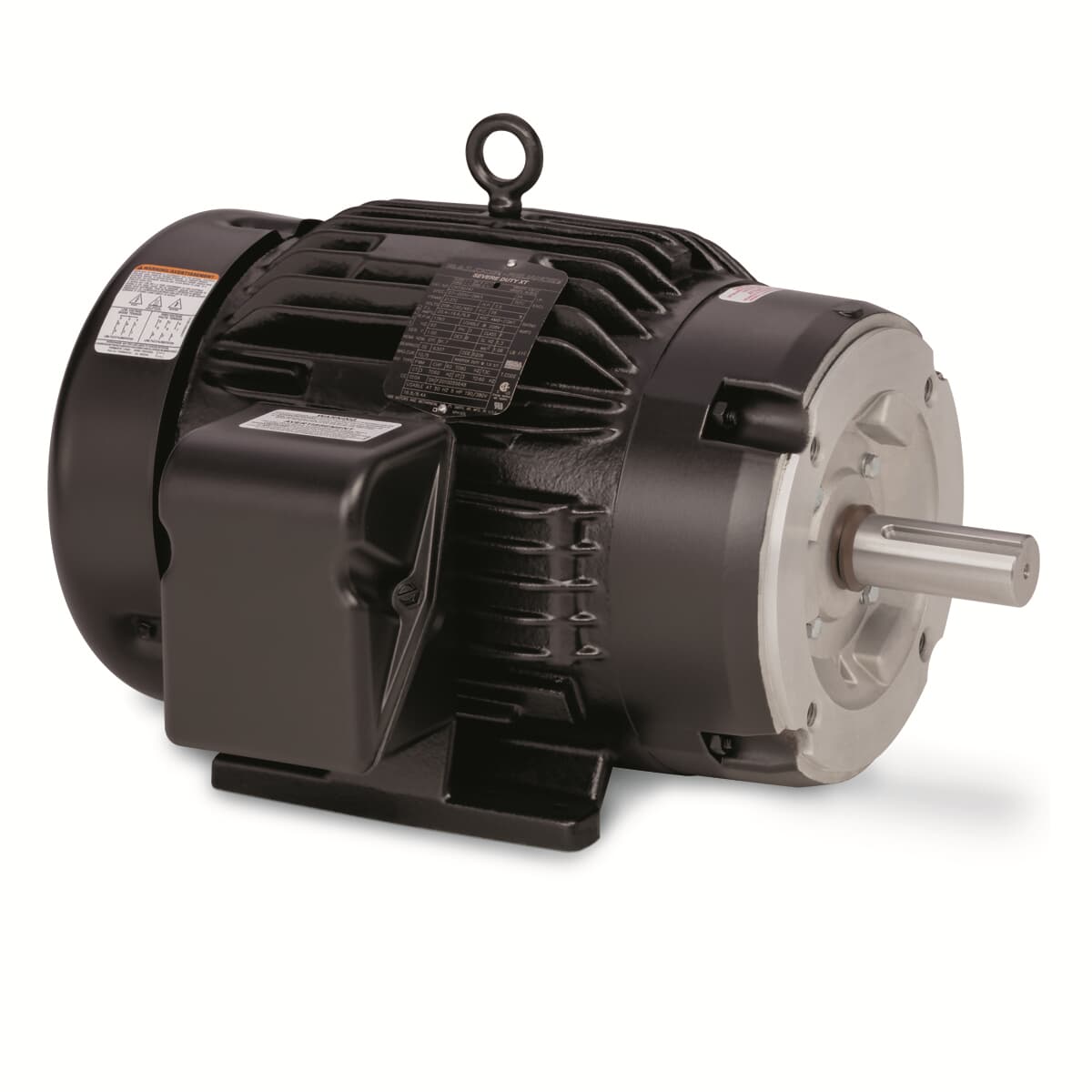

CXT3074T-5

7.5HP, 1760RPM, 3PH, 60HZ, 213TC, 0748M, TEFC

Product Information Packet PDF

Ship Weight 231.000 LB
UPC 781568982600

Specs

Catalog Number CXT3074T-5
Enclosure TEFC
Frame 213TC
Frame Material Iron
Frequency 60.00 Hz
Motor Letter Type Three Phase
Output @ Frequency 7.500 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 575.0 V @ 60 HZ
Haz Area Class and Group CLI GP A,B,C,D
Haz Area Division Division II
Agency Approvals CCSA US
CSA EEV
NEMA PREMIUM
NEMA_PREMIUM
UR
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Constant Torque Speed Range 3
Current @ Voltage 7.400 A @ 575.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.7 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 7.4 a
Heater Indicator No Heater
Insulation Class F
Inverter Code Inverter Duty
IP Rating NONE
KVA Code K
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Termination Flying Leads
Motor Type 0748M
Mounting Arrangement F1
Number of Poles 4
Overall Length 19.20 IN
Power Factor 85
Product Family General Purpose
Pulley Face Code C-Face
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.375 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Speed 1760 rpm
Speed Code Single Speed
Motor Standards NEMA
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None
Haz Area Temp Code T3C

Drawings

{{getDrwKindName(drawing.kind)}}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT.NO. CXT3074T-5 I.P. 54
SPEC. 07-0000-1112 ENCL TEFC
FRAME 213TC H.P. 7.5 T. CODE T3C
VOLTS 575 P.F. 85
F.L. AMPS 7.4 RATING 40C AMB-CONT
R.P.M. 1760 USABLE AT 208V N/A
HZ. 60 PH. 3 CLASS F
SER.F. 1.15 DES. A SL HZ 1.3
NEMA NOM. EFF. 91.7 WK2 1.18
DE 6307 ODE 6206
MAG. CUR. 3.2
INV TYPE PWM CHP 60 TO 90 INV TEMP CODE T3C
CT 3 TO 60 VT 3 TO 60
CC 010A SN
SFA 8.9
NP4224L

Performance

Performance at 575 V, 60 Hz, 7.5 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 2.03 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load 25° C
Temp. Rise @ S.F. Load 33° C
Start Configuration DOL
Break-Down Torque 79.0744 LB-FT
Pull-Up Torque 32.25 LB-FT
Locked-Rotor Torque 42.7086 LB-FT
Starting Current 47.9434 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 5.7 42.3 65.1 77.0 82.9 86.1 87.7 86.0
Efficiency 0.0 85.9 90.7 91.9 92.0 91.7 91.1 91.7
Speed (RPM) 1,800 1,794 1,788 1,782 1,775 1,768 1,761 1,768
Line Amps 3.50 3.88 4.77 5.98 7.37 8.91 10.56 8.91

Performance Curves

Parts

Part Number Description Quantity
LB1624 COMBINED WARNING LABEL, ISO/ANSI PICTOGR 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (2500bx)4/22 1.000 EA
37FN3002A01SP EXFN, PLASTIC, 9.00 OD, 1.155 ID 1.000 EA
HW4600B36SP V-RING SLINGER 1.188 X 1.690 X .24 VITON 1.000 EA
09CB3002SP CB W/1.38 LEAD HOLE FOR 37, 39, 307 & 30 1.000 EA
51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 2.000 EA
09CB3501SP CONDUIT BOX LID FOR 09CB3001 & 09CB3002 1.000 EA
09GS1013SP GS FOR 09CB3501, 12CB1500 & 12CB1503 LID 1.000 EA
51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 2.000 EA
