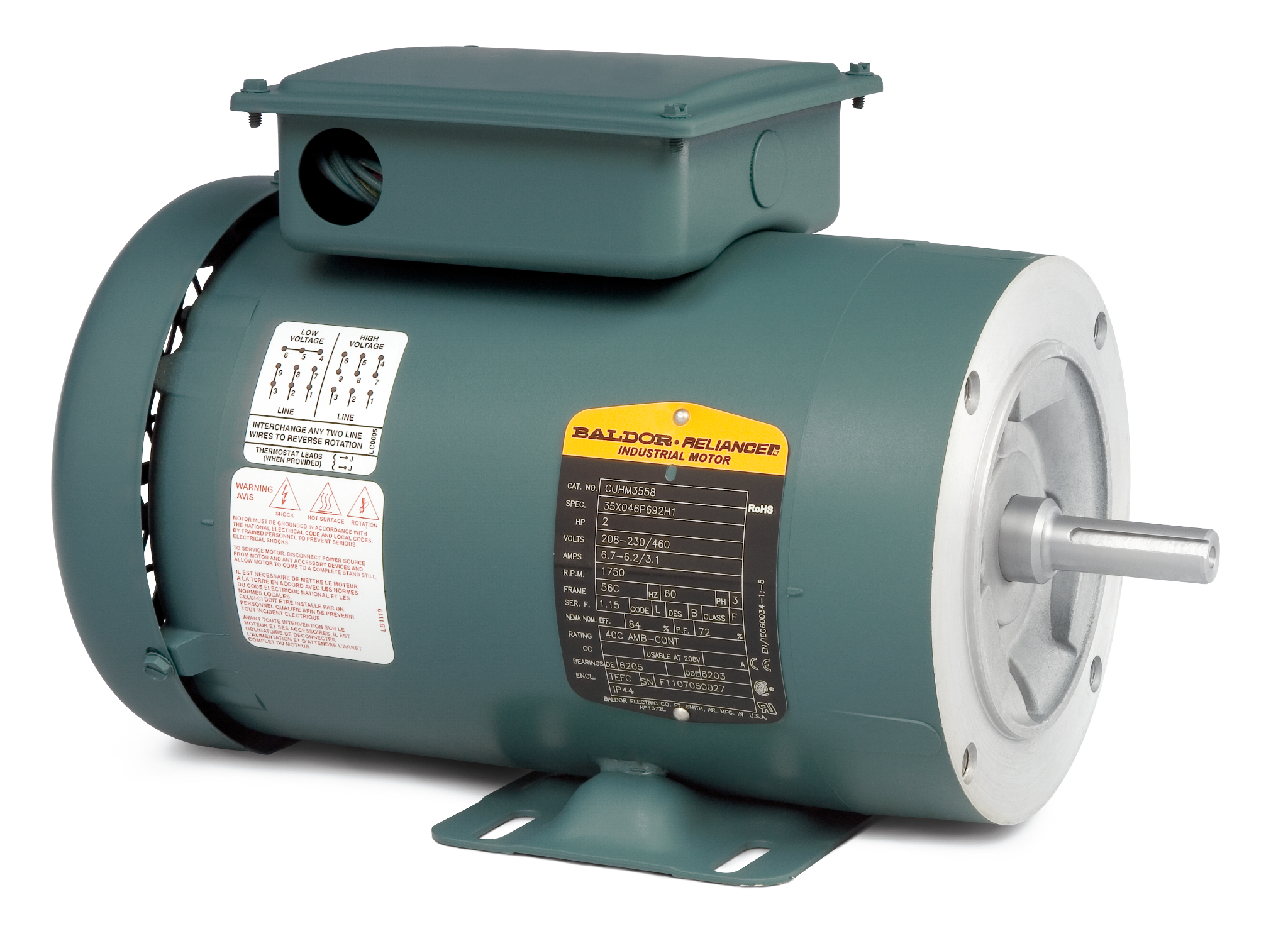

CUHL3519
1/.75KWHP, 1745RPM, 1PH, 60HZ, 56C, 3526LC, TE
Product Information Packet PDF
Ship Weight | 44.000 LB |
---|---|
UPC | 781568503676 |
Specs
Catalog Number
CUHL3519
Enclosure
TEFC
Frame
56C
Frame Material
Steel
Frequency
60.00 Hz
Motor Letter Type
Cap Start, Cap Run
Output @ Frequency
1.000 HP @ 60 HZ
Phase
1
Synchronous Speed @ Frequency
1800 RPM @ 60 HZ
Voltage @ Frequency
208.0 V @ 60 HZ
115.0 V @ 60 HZ
230.0 V @ 60 HZ
115.0 V @ 60 HZ
230.0 V @ 60 HZ
Haz Area Class and Group
None
Haz Area Division
Not Applicable
Agency Approvals
CE
CURUS
UKCA
WEEE
CURUS
UKCA
WEEE
Ambient Temperature
40 °C
Auxillary Box
No Auxillary Box
Auxillary Box Lead Termination
None
Base Indicator
Rigid
Bearing Grease Type
Polyrex EM (-20F +300F)
Blower
None
Current @ Voltage
9.800 A @ 115.0 V
5.100 A @ 208.0 V
4.900 A @ 230.0 V
5.100 A @ 208.0 V
4.900 A @ 230.0 V
Design Code
L
Drip Cover
No Drip Cover
Duty Rating
CONT
Efficiency @ 100% Load
78.0 %
Electrically Isolated Bearing
Not Electrically Isolated
Feedback Device
NO FEEDBACK
High Voltage Full Load Amps
4.9 a
Front Face Code
Standard
Front Shaft Indicator
None
Heater Indicator
No Heater
Insulation Class
F
Inverter Code
Not Inverter
KVA Code
L
Lifting Lugs
No Lifting Lugs
Locked Bearing Indicator
Locked Bearing
Motor Finish
CLEAR COAT
Motor Lead Exit
Ko Box
Motor Lead Termination
Flying Leads
Motor Lead Quantity/Wire Size
6 @ 18 AWG
Motor Type
3526LC
Mounting Arrangement
F3
Number of Poles
4
Overall Length
13.23 IN
Power Factor
90
Product Family
General Purpose
Pulley End Bearing Type
Ball
Pulley Face Code
C-Face
Pulley Shaft Indicator
Standard
Rodent Screen
None
Service Factor
1.15
Shaft Diameter
0.625 IN
Shaft Extension Location
Pulley End
Shaft Ground Indicator
No Shaft Grounding
Shaft Rotation
Reversible
Shaft Slinger Indicator
No Slinger
Speed
1745 rpm
Speed Code
Single Speed
Motor Standards
NEMA
Starting Method
Direct on line
Thermal Device - Bearing
None
Thermal Device - Winding
None
Vibration Sensor Indicator
No Vibration Sensor
Winding Thermal 1
None
Winding Thermal 2
None
Nameplate
CAT.NO. | CUHL3519 | |||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SPEC. | 35E6093G590 | |||||||||||||||||||||||||||||
HP | 1/.75KW | |||||||||||||||||||||||||||||
VOLTS | 115/208-230 | |||||||||||||||||||||||||||||
AMP | 9.8/5.1-4.9 | |||||||||||||||||||||||||||||
R.P.M. (1/MIN) | 1745 | |||||||||||||||||||||||||||||
FRAME | 56C | HZ | 60 | PH | 1 | |||||||||||||||||||||||||
SER.F. | 1.15 | CODE | L | DES | L | CL | F | |||||||||||||||||||||||
NEMA-NOM-EFF | 78 | PF | 90 | |||||||||||||||||||||||||||
RATING | 40C AMB-S1 CONT | |||||||||||||||||||||||||||||
CC | IP44 KG18 IC411 | |||||||||||||||||||||||||||||
DE | 6205 | ODE | 6203 | |||||||||||||||||||||||||||
ENCL | TEFC | SN | ||||||||||||||||||||||||||||
IE2-60HZ 78(75%),73(50%) | ||||||||||||||||||||||||||||||
NP1372L |
Performance
Performance at 230 V, 60 Hz, 1 hp
Typical performance; not guaranteed values.General Characteristics
Full Load Torque
0 LB-FT
No-Load Current
0 A
Line-Line Res. @ 25° C
2.6387 Ohms A Ph / 1.4489 Ohms B Ph
Temp. Rise @ Rated Load
53° C
Temp. Rise @ S.F. Load
62° C
Start Configuration
DOL
Break-Down Torque
10.6 LB-FT
Pull-Up Torque
7.64 LB-FT
Locked-Rotor Torque
11.7 LB-FT
Starting Current
40 A
Load Characteristics
Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. |
---|---|---|---|---|---|---|---|---|
Power Factor | 25.0 | 52.0 | 69.0 | 79.0 | 86.0 | 89.0 | 91.0 | 88.0 |
Efficiency | 0.0 | 58.6 | 73.2 | 78.2 | 79.7 | 79.1 | 77.2 | 79.3 |
Speed (RPM) | 1,796 | 1,785 | 1,773 | 1,760 | 1,745 | 1,728 | 1,708 | 1,735 |
Line Amps | 2.70 | 2.86 | 3.32 | 4.01 | 4.84 | 5.83 | 7.01 | 5.43 |
Performance Curves
Performance at 208 V, 60 Hz, 1 hp
Typical performance; not guaranteed values.General Characteristics
Full Load Torque
0 LB-FT
No-Load Current
0 A
Line-Line Res. @ 25° C
2.6174 Ohms A Ph / 1.4374 Ohms B Ph
Temp. Rise @ Rated Load
50° C
Temp. Rise @ S.F. Load
63° C
Start Configuration
DOL
Break-Down Torque
6.76 LB-FT
Pull-Up Torque
5.4 LB-FT
Locked-Rotor Torque
7.69 LB-FT
Starting Current
35.1 A
Load Characteristics
Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. |
---|---|---|---|---|---|---|---|---|
Power Factor | 28.0 | 62.0 | 78.0 | 86.0 | 90.0 | 92.0 | 93.0 | 91.0 |
Efficiency | 0.0 | 63.7 | 76.2 | 79.3 | 79.1 | 76.4 | 71.7 | 77.5 |
Speed (RPM) | 1,796 | 1,782 | 1,768 | 1,751 | 1,731 | 1,705 | 1,671 | 1,716 |
Line Amps | 2.02 | 2.34 | 3.04 | 3.95 | 5.04 | 6.38 | 8.09 | 5.84 |
Performance Curves
Parts
Part Number | Description | Quantity |
---|---|---|
OC3040F18SP | 7YL OIL CAP 40MFD/370V | 1.000 EA |
EC1540A06SP | ELEC CAP, 540-648 MFD, 125V, 2.06D X 4. | 1.000 EA |
35FH4005A32SP | IEC FH NO GRSR W/3 HOLES - PRIMED | 1.000 EA |
35FN3002A05SP | EXFN, PLASTIC, 6.376 OD, .638 ID | 1.000 EA |
MN416A01 | TAG-INSTAL-MAINT no wire (2500bx)4/22 | 1.000 EA |
