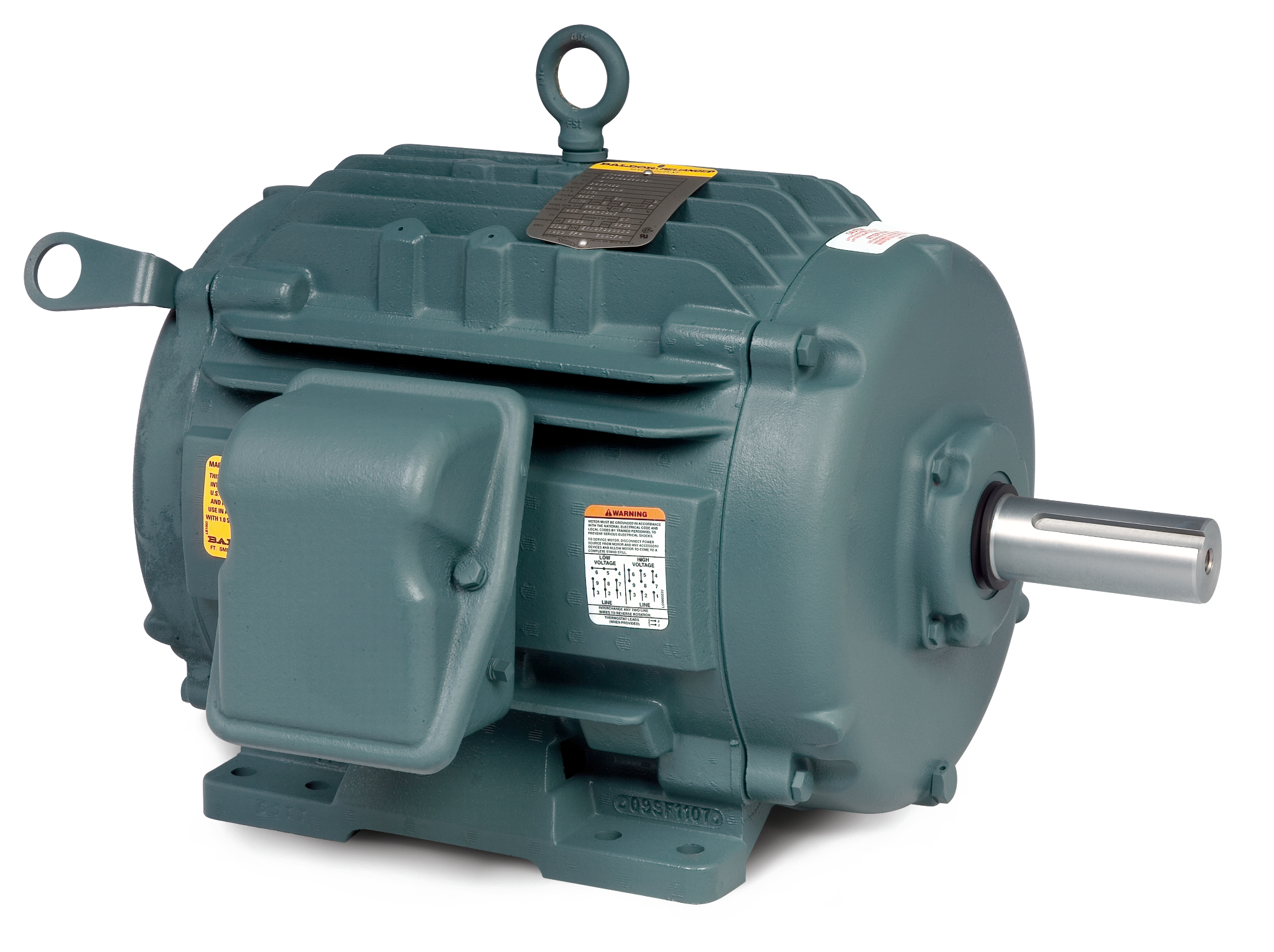

CTM2333T

15HP, 1760RPM, 3PH, 60HZ, 254T, 0756M, TEAO, F1

Product Information Packet PDF

Ship Weight 236.000 LB
UPC 781568654309

Specs

Catalog Number CTM2333T
Enclosure TEAO
Frame 254T
Frame Material Cast Iron
Frequency 60.00 Hz
Motor Letter Type Three Phase
Output @ Frequency 15.000 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 208.0 V @ 60 HZ
230.0 V @ 60 HZ
460.0 V @ 60 HZ
Haz Area Class and Group None
Haz Area Division Not Applicable
Agency Approvals CURUS
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Current @ Voltage 19.000 A @ 460.0 V
38.000 A @ 230.0 V
40.000 A @ 208.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.0 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 19.0 a
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No Heater
Insulation Class F
Inverter Code Not Inverter
KVA Code J
Lifting Lugs Vertical Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Termination Flying Leads
Motor Lead Quantity/Wire Size 9 @ 12 AWG
Motor Type 0756M
Mounting Arrangement F1
Number of Poles 4
Overall Length 22.16 IN
Power Factor 81
Product Family Chemical Processing (Not DC)
Pulley End Bearing Type Sealed Bearing
Pulley Face Code Standard
Pulley Shaft Indicator Tapped & Key
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1760 rpm
Speed Code Single Speed
Motor Standards NEMA
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None

Drawings

{{getDrwKindName(drawing.kind)}}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT.NO. CTM2333T
SPEC. 07N393T572G1
HP 15
VOLTS 208-230/460
AMP 40-38/19
RPM 1760
FRAME 254T HZ 60 PH 3
SER.F. 1.15 CODE J DES A CL F
NEMA-NOM-EFF 91 PF 81
RATING 40C AMB-CONT
CC
DE 6309 ODE 6206
ENCL TEAO SN
1700 FPM AT 170CFM
NP1258

Performance

Performance at 460 V, 60 Hz, 15 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 0.648 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load 66° C
Temp. Rise @ S.F. Load 79° C
Start Configuration DOL
Break-Down Torque 168 LB-FT
Pull-Up Torque 64.6 LB-FT
Locked-Rotor Torque 102 LB-FT
Starting Current 149 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 6.0 44.0 65.0 76.0 81.0 83.0 84.0 82.0
Efficiency 0.0 87.6 91.3 91.9 91.3 90.4 89.1 90.8
Speed (RPM) 1,799 1,791 1,783 1,775 1,765 1,754 1,743 1,758
Line Amps 8.11 9.13 11.65 14.96 19.00 23.28 28.06 21.60

Performance Curves

Performance at 208 V, 60 Hz, 15 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 0.162 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load 67° C
Temp. Rise @ S.F. Load 83° C
Start Configuration DOL
Break-Down Torque 135 LB-FT
Pull-Up Torque 50.5 LB-FT
Locked-Rotor Torque 79.4 LB-FT
Starting Current 262 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 6.0 55.0 75.0 82.0 85.0 86.0 85.0 86.0
Efficiency 0.0 90.0 92.4 92.3 91.2 89.9 88.1 90.4
Speed (RPM) 1,799 1,790 1,780 1,770 1,758 1,745 1,731 1,750
Line Amps 12.83 15.62 22.09 30.24 39.89 50.16 61.84 46.10

Performance Curves

Parts

Part Number Description Quantity
51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 2.000 EA
LB1624 COMBINED WARNING LABEL, ISO/ANSI PICTOGR 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (2500bx)4/22 1.000 EA
