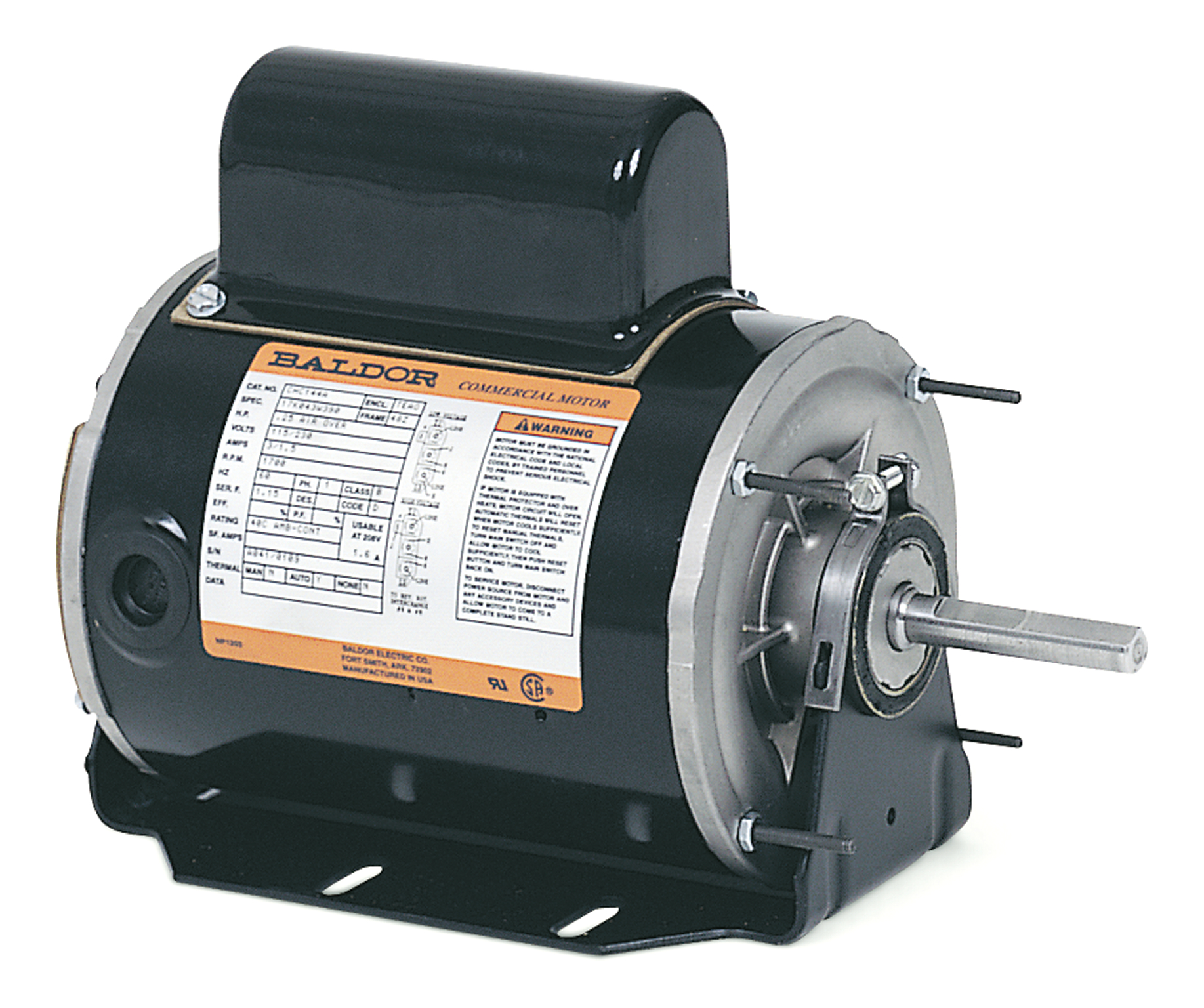

CHC164A

.25HP, 1100RPM, 1PH, 60HZ, 48Z, 3411C, TEAO, F1

Product Information Packet PDF

Ship Weight 22.000 LB
UPC 781568408865

Specs

Catalog Number CHC164A
Enclosure TEAO
Frame 48Z
Frame Material Steel
Frequency 60.00 Hz
Motor Letter Type Oil Capacitor Start and Run
Output @ Frequency .250 HP @ 60 HZ
Phase 1
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Voltage @ Frequency 115.0 V @ 60 HZ
230.0 V @ 60 HZ
Haz Area Class and Group None
Haz Area Division Not Applicable
Agency Approvals CURUS
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Resilient
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Current @ Voltage 1.500 A @ 230.0 V
1.600 A @ 208.0 V
3.000 A @ 115.0 V
Design Code -
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 59.5 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 1.5 a
Front Face Code Resilient Mount
Front Shaft Indicator None
Heater Indicator No Heater
Insulation Class B
Inverter Code Not Inverter
KVA Code B
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Terminal Panel Or Lead Hole
Motor Lead Termination None
Motor Lead Quantity/Wire Size 7 @ 18 AWG
Motor Type 3411C
Mounting Arrangement F1
Number of Poles 6
Overall Length 11.35 IN
Power Factor 92
Product Family General Purpose
Pulley End Bearing Type Ball
Pulley Face Code Resilient Mount
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS NON-COMPLIANT
Service Factor 1.15
Shaft Diameter 0.500 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible: Connected Standard
Shaft Slinger Indicator No Slinger
Speed 1100 rpm
Speed Code Single Speed
Motor Standards NEMA
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location WG
Winding Thermal 2 None

Drawings

{{getDrwKindName(drawing.kind)}}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT.NO. CHC164A
SPEC. 34M212R204G1
HP .25
VOLTS 115/230
AMP 3/1.5
RPM 1100
FRAME 48Z HZ 60 PH 1
SER.F. 1.15 CODE B DES - CL B
NEMA-NOM-EFF 59.5 PF 92
RATING 40C AMB-CONT
CC
DE 6203 ODE 6203
ENCL TEAO SN
NP1257L

Performance

Performance at 230 V, 60 Hz, 0.25 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 24.299 Ohms A Ph / 11.702 Ohms B Ph
Temp. Rise @ Rated Load
Temp. Rise @ S.F. Load
Start Configuration DOL
Break-Down Torque 1.74 LB-FT
Pull-Up Torque 0.378 LB-FT
Locked-Rotor Torque 0.414 LB-FT
Starting Current 3.56 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 65.0 79.0 86.0 90.0 92.0 92.0 0.0 92.0
Efficiency 0.0 33.8 51.2 60.4 63.1 59.8 0.0 61.1
Speed (RPM) 1,195 1,182 1,166 1,146 1,119 1,074 0 1,092
Line Amps 0.75 0.82 0.96 1.17 1.42 1.79 0.00 1.64

Performance Curves

Parts

Part Number Description Quantity
OC3020F12SP CAPACITORS 20 MFD 370 VAC 1.000 EA
34EP3204A01SP FR ENDPLATE, MACH 1.000 EA
34CB4501SP TERMINAL BOX LID, STAMPED X (PLATED) 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (2500bx)4/22 1.000 EA
