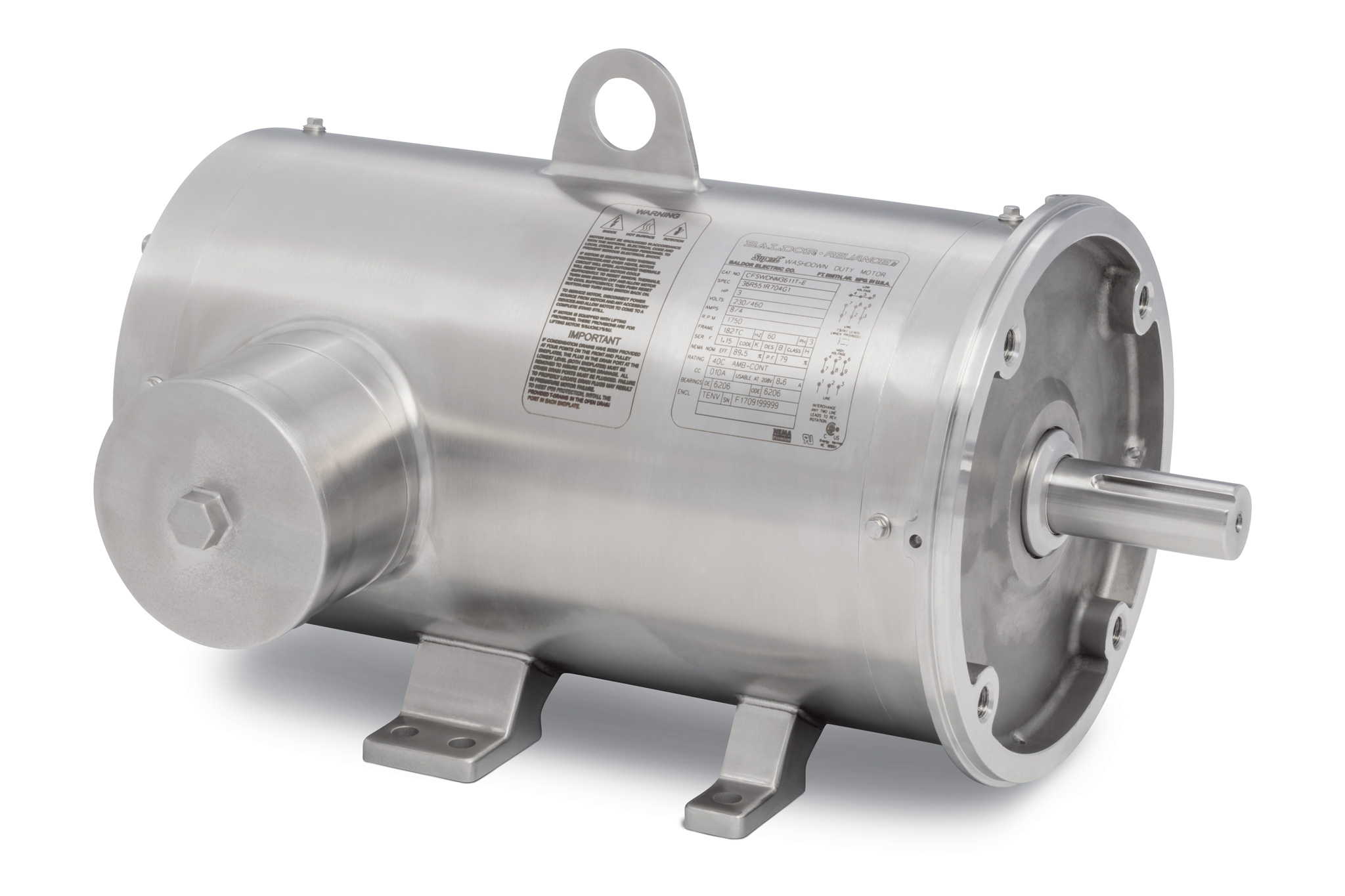

CFSWDNM3611T-E

3HP, 1750RPM, 3PH, 60HZ, 182TC, 3646M, TENV, F1

Product Information Packet PDF

Ship Weight 101.000 LB
UPC 781568864081

Specs

Catalog Number CFSWDNM3611T-E
Enclosure TENV
Frame 182TC
Frame Material Stainless Steel
Frequency 60.00 Hz
Motor Letter Type Three Phase
Output @ Frequency 3.000 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 460.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and Group None
XP Division Not Applicable
Agency Approvals CSA
UR
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Current @ Voltage 8.000 A @ 230.0 V
8.600 A @ 208.0 V
4.000 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 89.5 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 4.0 a
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No Heater
Insulation Class H
Inverter Code Inverter Ready
KVA Code K
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Termination Flying Leads
Motor Lead Quantity/Wire Size 9 @ 16 AWG
Motor Type 3646M
Mounting Arrangement F1
Number of Poles 4
Overall Length 17.05 IN
Power Factor 79
Product Family WD All SS Encapsulated
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1750 rpm
Speed Code Single Speed
Motor Standards NEMA
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None

Drawings

{{ getDrwKindName(drawing.kind) }}

CAD File
Drawing files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
The drawing for the product you have selected is available from our Part Community Portal.
Visit our portal by following the link below. For additional service, please contact a local sales office.
CAD files for this product are currently unavailable.
Visit one of our Part Community Portals for further assistance.
CAD files for this product are currently unavailable.
Visit our Part Community Portal for further assistance.
CAD files for this product are currently unavailable.
For additional assistance, please contact your local Baldor sales office.
Your download is ready. Thank you.
For additional assistance, please contact your local Baldor sales office.
Building download package.

Nameplate

CAT.NO. CFSWDNM3611T-E
SPEC. 36R551R704G1
HP 3
VOLTS 230/460
AMPS 8/4
R.P.M. 1750
FRAME 182TC HZ 60 PH 3
SER.F. 1.15 CODE K DES. B CLASS H
NEMA NOM. EFF. 89.5 P.F. 79
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 8.6
DE 6206 ODE 6206
ENCL TENV SN
4:1CT, 10:1VT
NP1953M01

Performance

Performance at 460 V, 60 Hz, 3 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 3.4828 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load 101° C
Temp. Rise @ S.F. Load 125° C
Start Configuration DOL
Break-Down Torque 33.1 LB-FT
Pull-Up Torque 19.1 LB-FT
Locked-Rotor Torque 22.4 LB-FT
Starting Current 30.9 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 6.0 40.0 61.0 72.0 79.0 82.0 84.0 81.0
Efficiency 0.0 85.2 89.7 90.2 89.7 88.5 86.9 89.0
Speed (RPM) 1,799 1,788 1,778 1,766 1,754 1,740 1,724 1,746
Line Amps 1.96 2.17 2.62 3.30 4.00 4.85 5.82 4.51

Performance Curves

Parts

Part Number Description Quantity
MN416A01 TAG-INSTAL-MAINT no wire (2200bx) 4/22 1.000 EA
